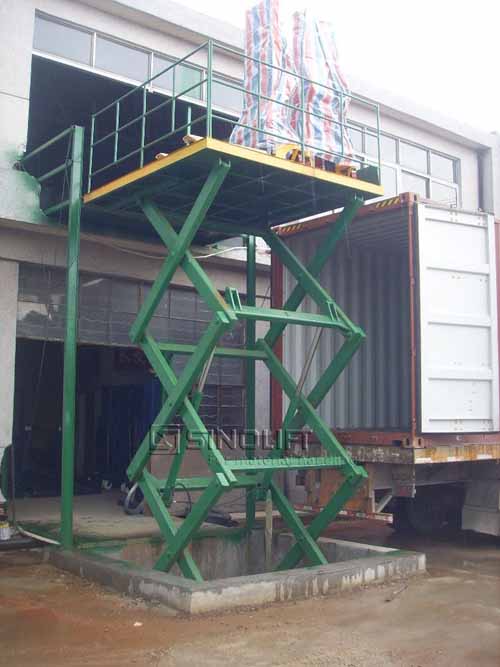

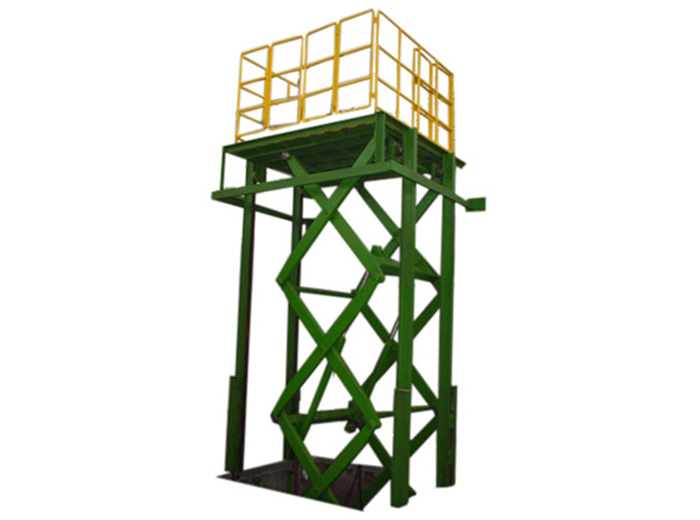

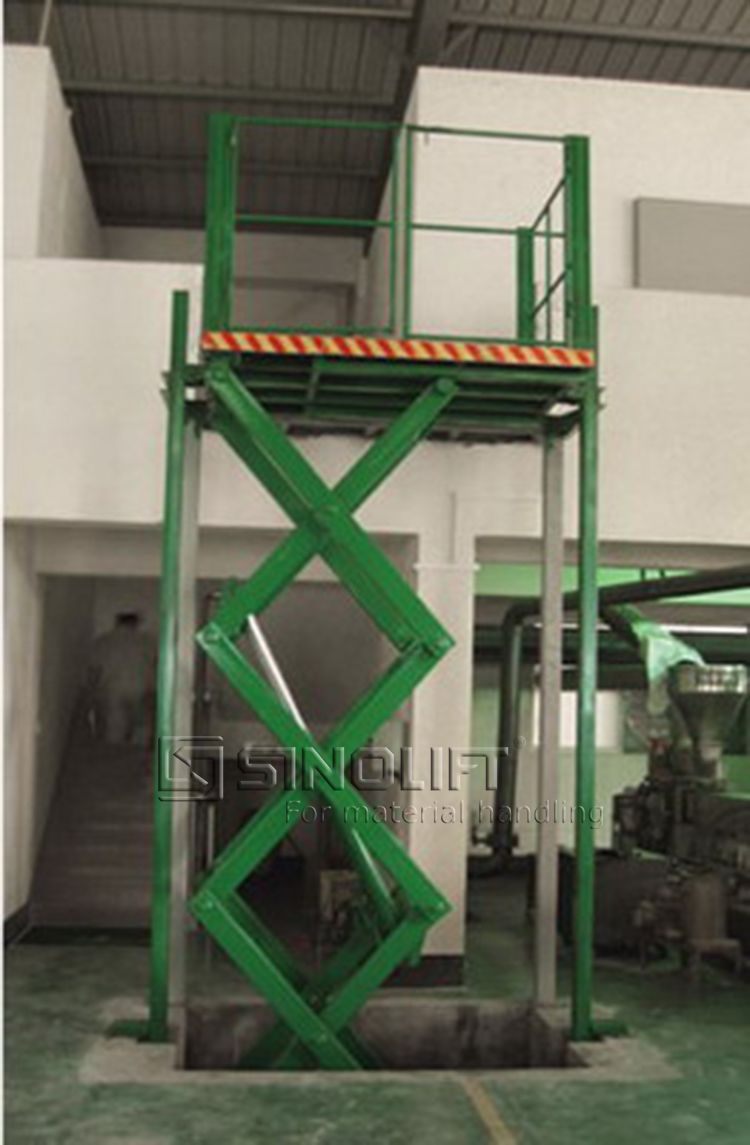

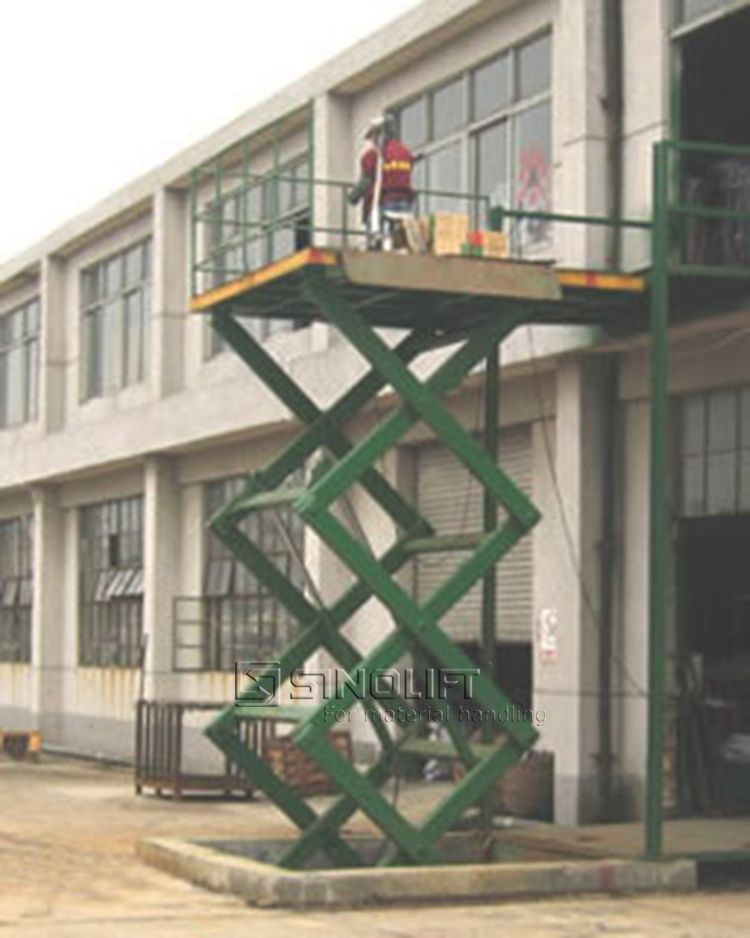

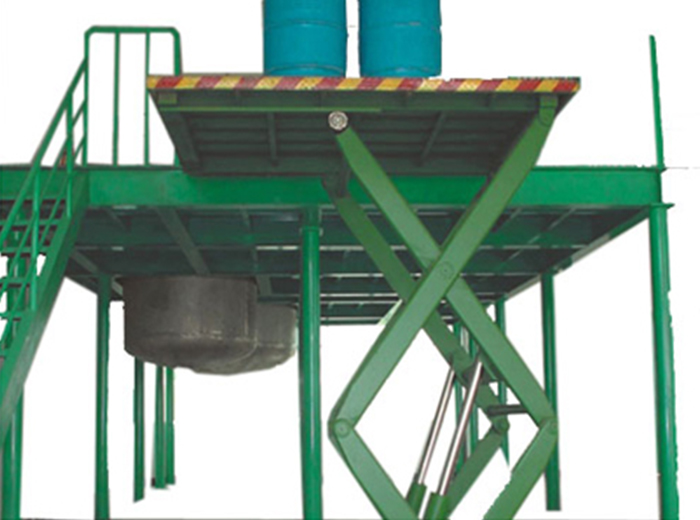

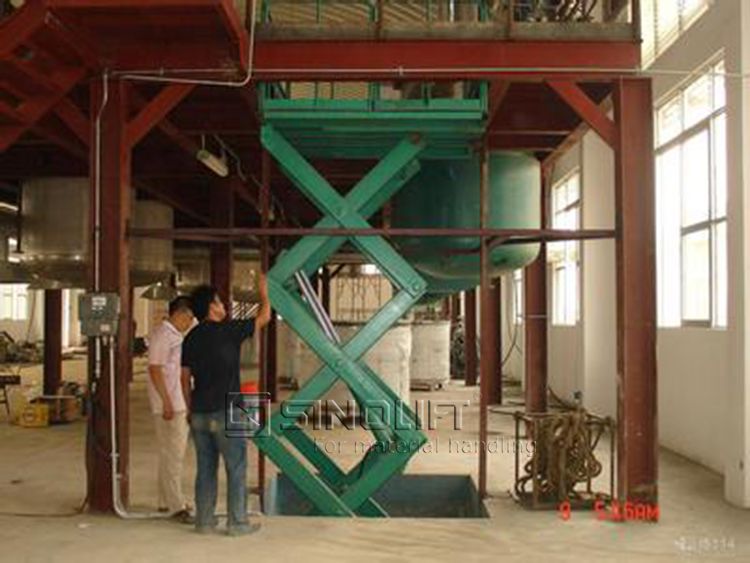

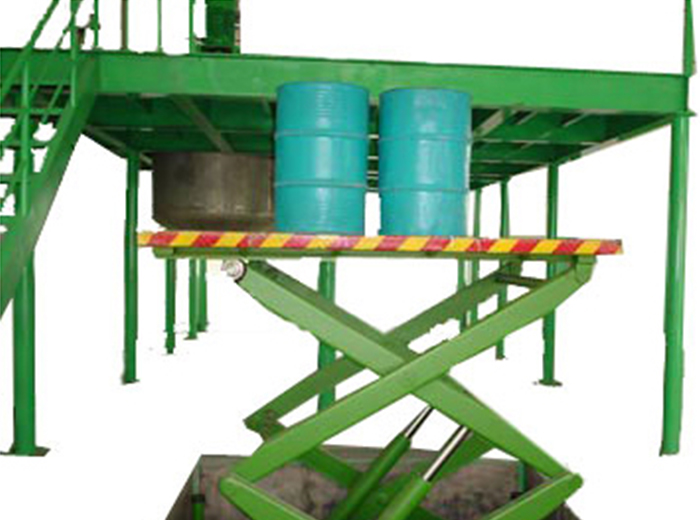

Name:SJT stationary hydraulic cargo-lift
Model:SJT
Product Introduction:The stationary hydraulic cargo-lift is a special use hydraulic table for cargo delivery at high levels of buildings. It is widely used for cargo delivery at workshops. Warehouses and various isolated working layers and automobile lifts at high level for space and underground garages, etc. It is characteristic of its firm structure, great carrying capacity, various table sizes, stable lifting, easy installation and convenient maintenance. Therefore, It can be a substitute for the elevator as an economic, useful and ideal cargo delivery equipment for cargo lift at lower floors.


Standard Features.

Installation flexibility.

It can be installed at atrocious environment and general flameproof area.

Wide range of application.

It is applicable for cargo delivery at high levels of most industries.

Flexible configuration. Table size and entry and exit entrance location can be configured flexibly to meet various installation environment and demands.

Relatively economic.

It has relatively lower price and maintenance fee, and no special use machine room. Construction budget can be economized.

Safe and reliable

Overload protection and pipe anti-crack safety valves for preventing table falling has been set up in hydraulic system to assure safe operation.

Convenient Operation.

Control buttons can be set at full floors and tables to achieve multi-sports control


Double Scissors
Model Rated Capacity Min. Height Lifting Height Max. Height Table Size Elevating time Motor Total Weight
Q H1 H2 H3 LxW
(t) (mm) (mm) (mm) (mm) (s) (kw) (kg)
Double Scissors
SJG2-3.8 2 640 3800 4440 2800×2000 102 3 2500
SJG2-5 2 700 5000 5700 4500×2200 62 5.5 4000
SJG2.5-4.4 2.5 700 4400 5100 3200×2000 51 7.5 3400
SJG2.5-7.2 2.5 830 7200 8030 5200×2500 95 7.5 8800
SJG4.5-3.5 4.5 760 3500 4260 4000×2000 50 5.5 4500
SJG5-5.4 5 830 5400 6230 5200×2500 95 7.5 8000
SJG3-7.2 3 1050 7200 8250 3400×1500 117 7.5 5500
Multi-Scissors
SJG0.5-5 0.5 850 5000 5850 2000×1000 47 2.2 1200
SJG1-3.3 1 840 3300 4140 1900×1500 30 3 1300
SJG1-5 1 1000 5000 6000 2000×1200 54 3 1600
SJG1.5-6.5 1.5 1060 6500 7560 3300×2200 83 5.5 4200
SJG2-3.5 2 1000 3500 4500 2200×1500 75 2.2 1800
SJG2-6 2 1300 6000 7300 2400×1600 62 5.5 2900
SJG2-9 2 1520 9000 10520 3000×1500 100 5.5 3500
SJG2.5-6 2.5 1050 6000 7050 3200×2500 77 7.5 5370
SJG3-7.2 3 1050 7200 8250 3400×1500 117 7.5 5500
