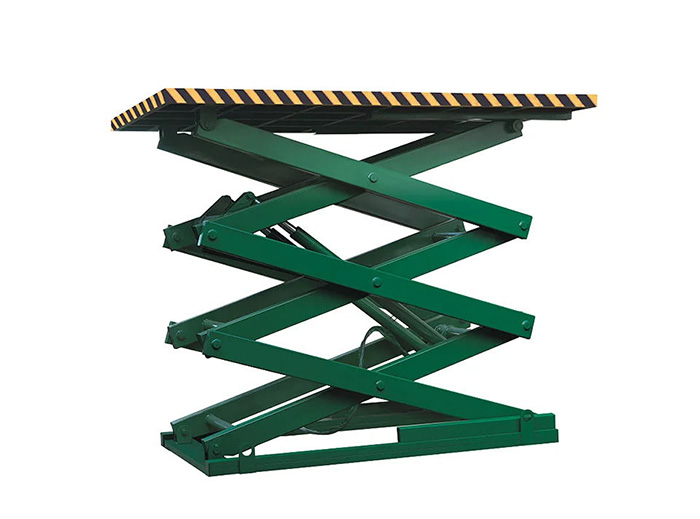

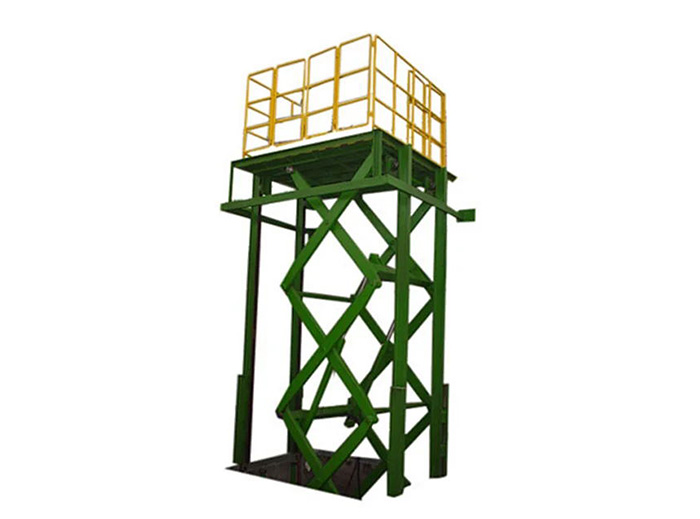

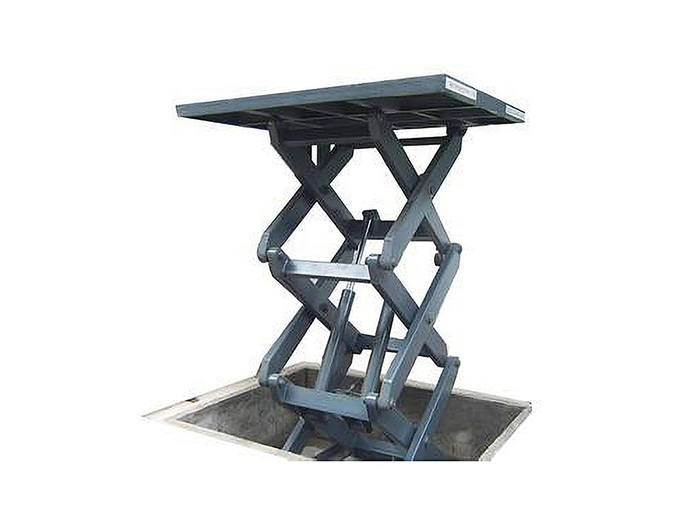

Name:SJG multi scissors stationary hydraulic cargo-lift
Model:SJG
Product Introduction:The stationary hydraulic cargo-lift is a special use hydraulic table for cargo delivery at high levels of buildings. It is widely used for cargo delivery at workshops. Warehouses and various isolated working layers and automobile lifts at high level for space and underground garages, etc. It is characteristic of its firm structure, great carrying capacity, various table sizes, stable lifting, easy installation and convenient maintenance. Therefore, It can be a substitute for the elevator as an economic, useful and ideal cargo delivery equipment for cargo lift at lower floors.

Standard Features.

Installation flexibility.

It can be installed at atrocious environment and general flameproof area.

Wide range of application.

It is applicable for cargo delivery at high levels of most industries.

Flexible configuration. Table size and entry and exit entrance location can be configured flexibly to meet various installation environment and demands.

Relatively economic.

It has relatively lower price and maintenance fee, and no special use machine room. Construction budget can be economized.

Safe and reliable

Overload protection and pipe anti-crack safety valves for preventing table falling has been set up in hydraulic system to assure safe operation.

Convenient Operation.

Control buttons can be set at full floors and tables to achieve multi-sports control.

Stationary Hydraulic Cargo-lift(multi scissors)
Model Capacity Min height Lifting height Max height Platform size Lifting time Power Weight
(t) (mm) (mm) (mm) (mm) (s) (kw) (kg)
SJG 0.5-5 0.5 850 5000 5850 2000×1000 47 2.2 1200
SJG 1-3.3 1 840 3300 4140 1900×1500 30 3 1300
SJG 1-4.3 1 860 4300 5160 2500×2500 70 1.5 2500
SJG 1-6 1 1230 6000 7230 2200×1500 90 2.2 2500
SJG 2-3.5 2 1000 3500 4500 2200×1500 75 2.2 1800
SJG 2-4.5 2 1070 4500 5570 1600×1600 45 4 2200
SJG 2-6.8 2 1400 6800 8200 2500×2200 90 4 3300
SJG 3-4.5 3 1060 4500 5560 2200×1800 88 4 2200
