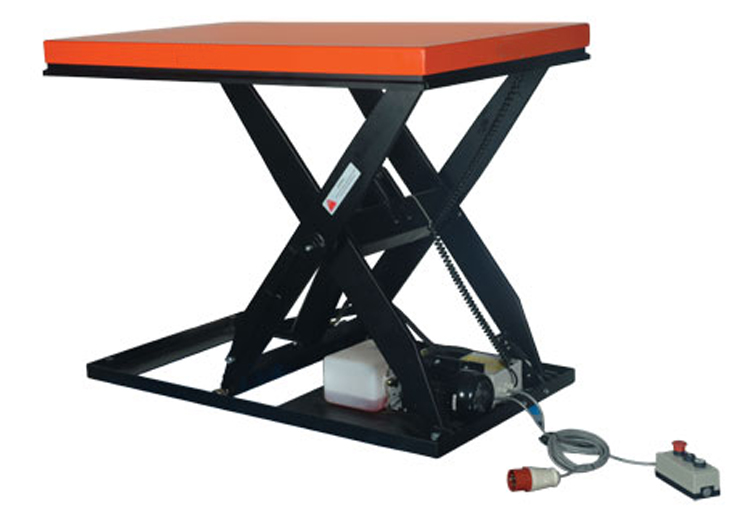

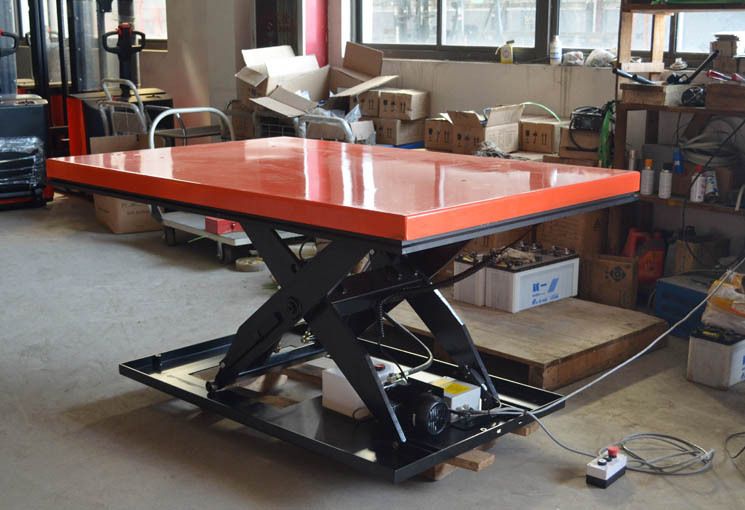

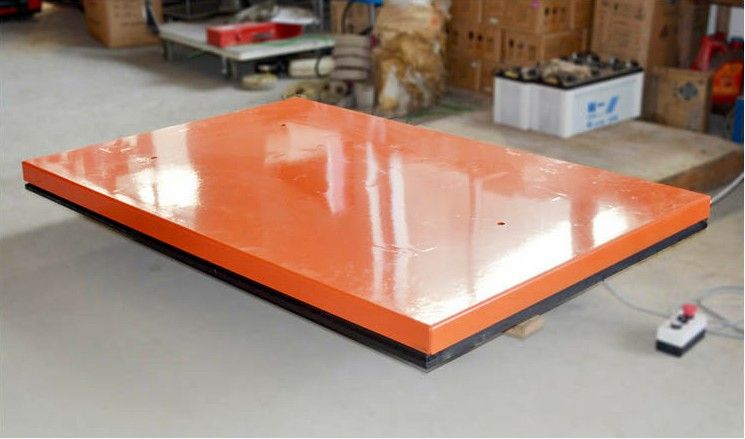

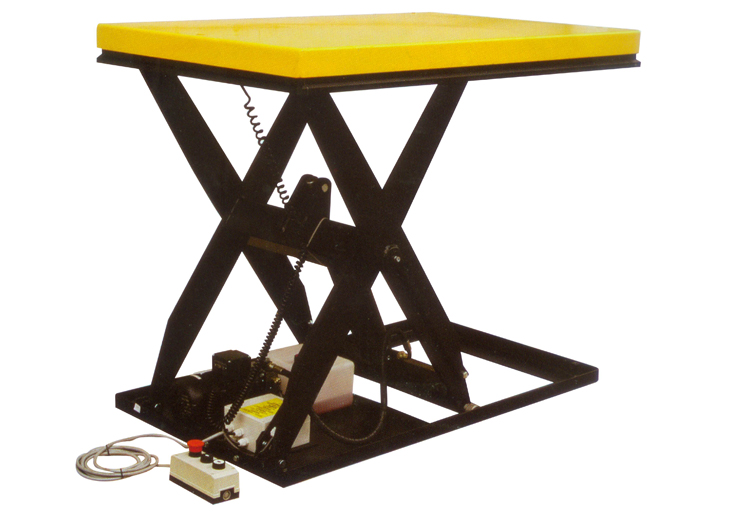

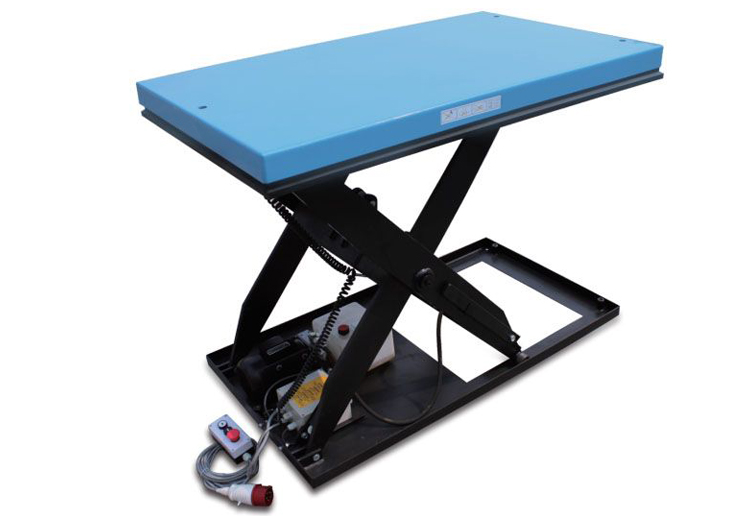

Name:HIW Electric Stationary Lift Table
Model:HIW
Product Introduction:Made of high quality steel and is designed to be durable, reliable and easy-to-use. Electric controlling system is imported from Europe with compact structure and gives a balanced lifting and lowering with a big capacity Conforms to EN1570 and BSEN60204-1

Made of high quality steel and is designed to be durable, reliable and easy-to-use.

Electric controlling system is imported from Europe

with compact structure and gives a balanced lifting and lowering

with a big capacity

Conforms to EN1570 and BSEN60204-1

Model HIW1.0 HIW2.0 HIW4.0 HIW3.0
Capacity Kg 500 1000 2000 3000
Lowered Height c mm 190 190 190 220
Raised Height h mm 1010 1010 1010 1020
Platform Size(L*B) mm 1300x800 1300x800 1300x800 1300x800
Lifting Time s 15 25 40 26
Lifting speed with load mm/s 55 40 22 30
lowering speed with load mm/s 40 35 33 40
Motor KW 0.75 0.75 0.75 1.5
Net Weight Kg 160 220 280 320
