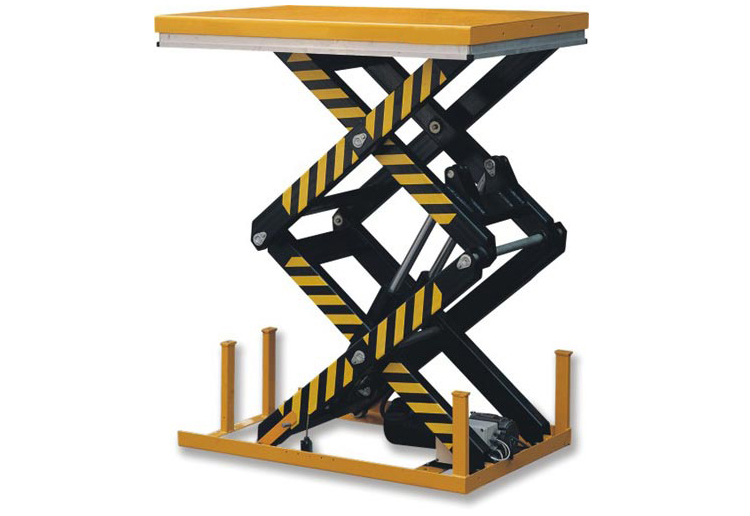

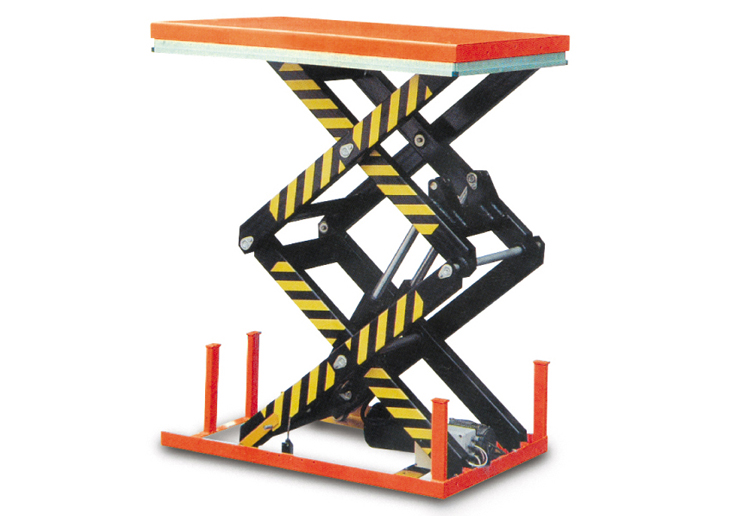

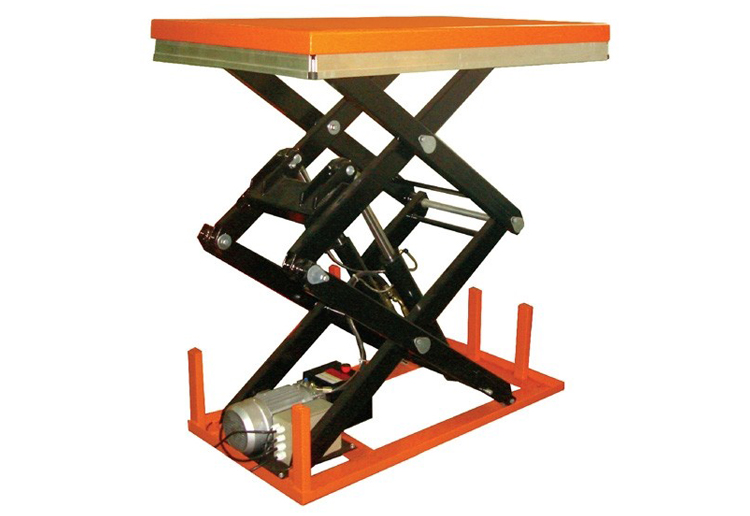

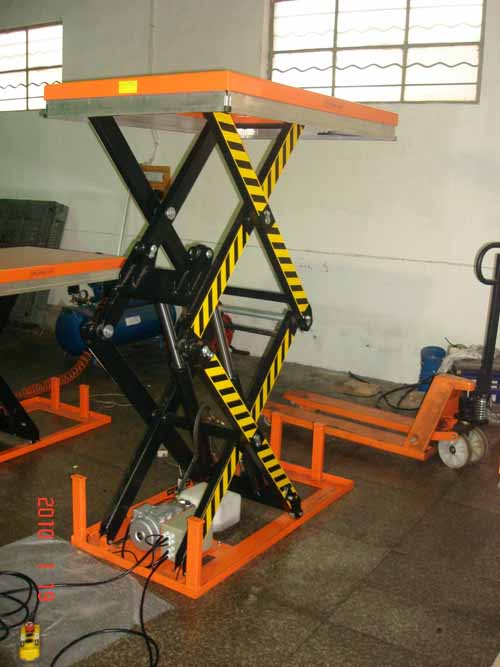

Name:HD Double Scissors Electric Stationary Lift Table
Model:HD1000 HD2000 HD4000
Product Introduction:Heavy duty design, 380V/50HZ AC power source The high quality pump station enables the electric lifting platform to lift goods stably. If the platform encounters obstacles during its descending process, the safety barrier strip under the platform can prevent the platform from further descending. This hydraulic platform is provided with anti-clamping function and overload protection function. It is fitted with safety wedge block for easy maintenance. The electric lifting platform can be used to facilitate warehousing, transporting, manufacturing and repairing works. It conforms to European EN1757-2 standard and American ANSI/ASME safety standard.

Heavy duty design, 380V/50HZ AC power source
The high quality pump station enables the electric lifting platform to lift goods stably.
If the platform encounters obstacles during its descending process, the safety barrier strip under the platform
can prevent the platform from further descending.
This hydraulic platform is provided with anti-clamping function and overload protection function.
It is fitted with safety wedge block for easy maintenance.
The electric lifting platform can be used to facilitate warehousing, transporting, manufacturing and
repairing works.
It conforms to European EN1757-2 standard and American ANSI/ASME safety standard.

Model HD1000 HD2000 HD4000
Capacity Kg 1000 2000 4000
Platform Size mm 820×1300 850×1300 1700×1200
Base Size mm 640×1240 478×1220 1600×900
Table-board  mm 305/1700 360/1780 400/2050
Min/Max.height
Lifting time s 35-45 35-45 55-65
Power 380V/50Hz,AC2.2KW 380V/50Hz,AC2.2KW 380V/50Hz,AC2.2KW
N.W Kg 210 295 520
