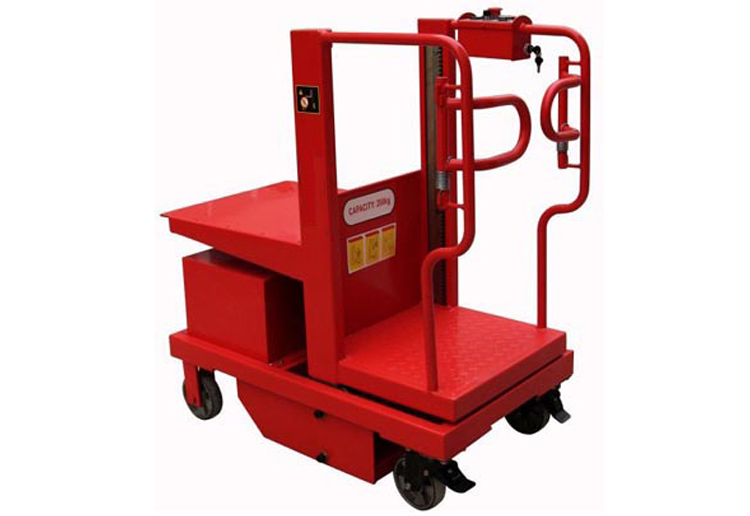

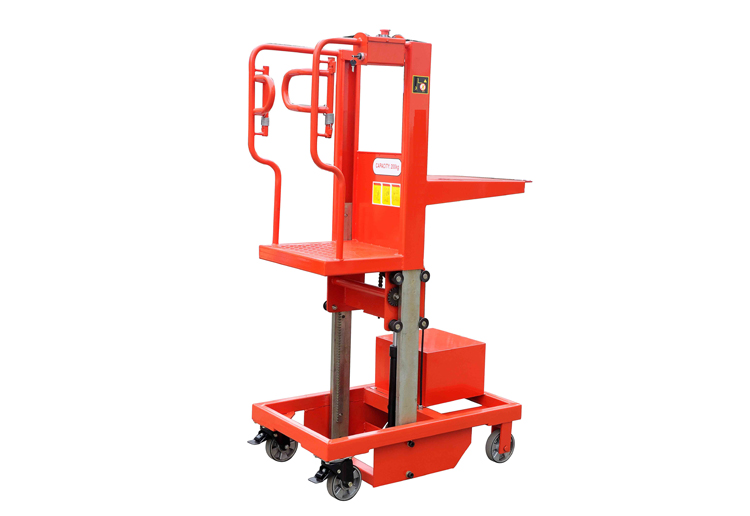

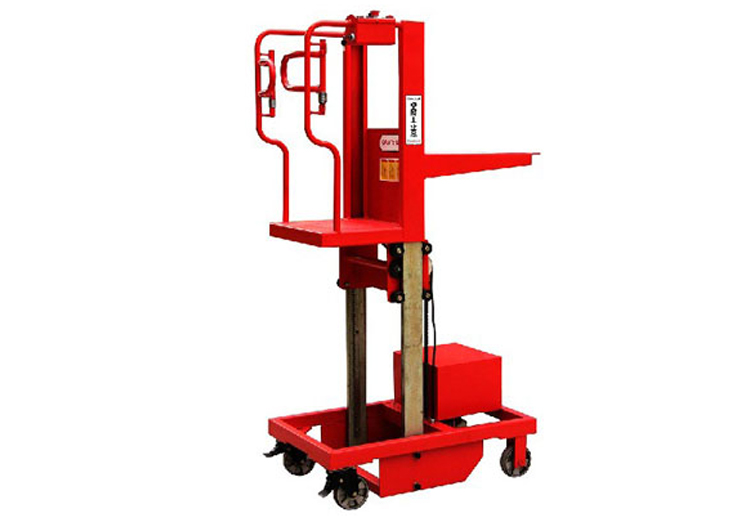

Name:WFA Semi-electric Order Picker
Model:WFA300-30/WFA300-35/WFA300-40/WFA300-45
Product Introduction:1.Import pump station,Lifting is smooth and powerful 2.America Valta (VARTA) maintenance-free battery, saving maintenance time and cost, durable electric power, with power indicator, low pressure warning lights. 3.With a number of security protection to ensure the safety 4.Apply to the Treasury, libraries, supermarkets, and the selection operation or maintenance work at high place

1.Import pump station,Lifting is smooth and powerful
2.America Valta (VARTA) maintenance-free battery, saving maintenance time and cost, durable electric power,
with power indicator, low pressure warning lights.
3.With a number of security protection to ensure the safety
4.Apply to the Treasury, libraries, supermarkets, and the selection operation or maintenance work at high place
Model WFA300-30 WFA300-35 WFA300-40 WFA300-45
Capacity (including human) kg 300 300 300 300
Max. platform heigth mm 3000 3500 4000 4500
Max. Working height mm 5000 5500 6000 6500
Platform Size mm 950x600 950x600 950x600 950x600
Ground Clearance mm 40 40 50 50
Driver Motor V/kw 24/0.4 24/0.4 24/0.4 24/0.4
Lifting Motor V/kw 24/2.0 24/2.0 24/2.0 24/2.0
Battery V/AH 24/120 24/120 24/120 24/120
Travelling Speed (lowered) km/h 4 4 4 4
Travelling Speed (raised) km/h 1.1 1.1 1.1 1.1
Lifting Speed km/h 20 24 20 23
Lowering Speed km/h 22 26 22 25
Gradeablity % 25 25 25 25
Overall Size (LxWxH) mm 1530x700x1890 1530x700x2140 1530x700x1810 1530x700x1980
Net weight kg 574 588 665 675
