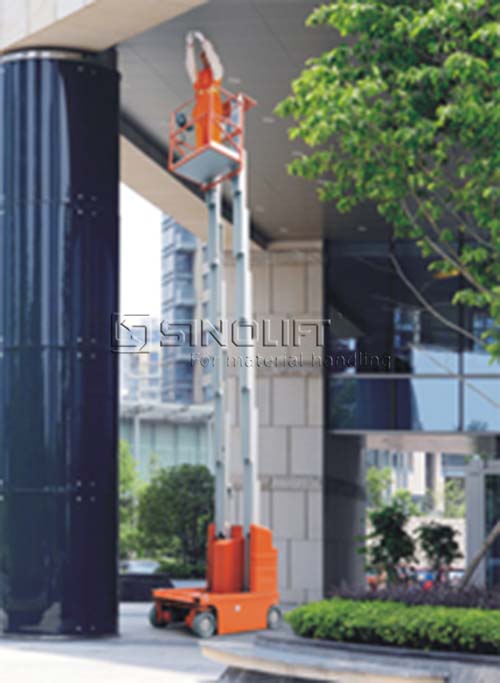

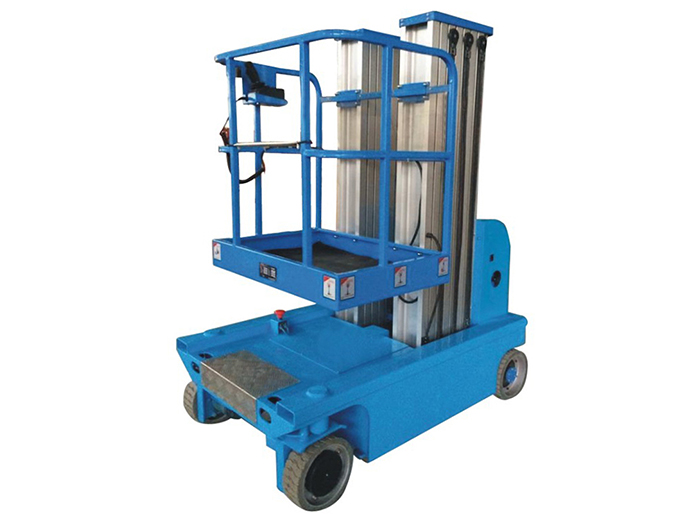

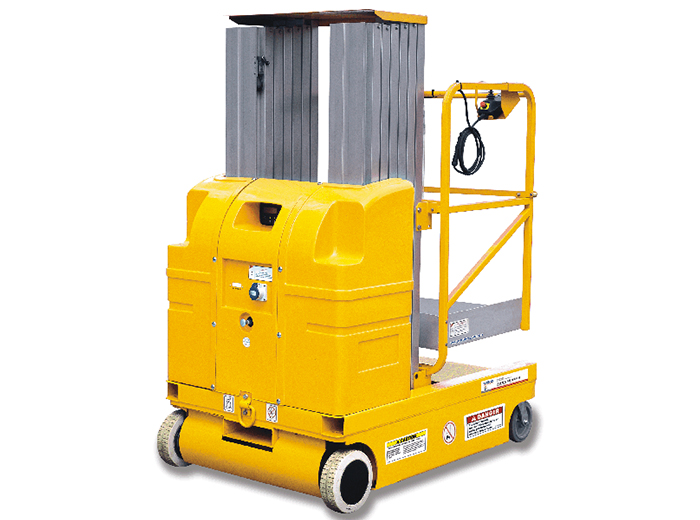

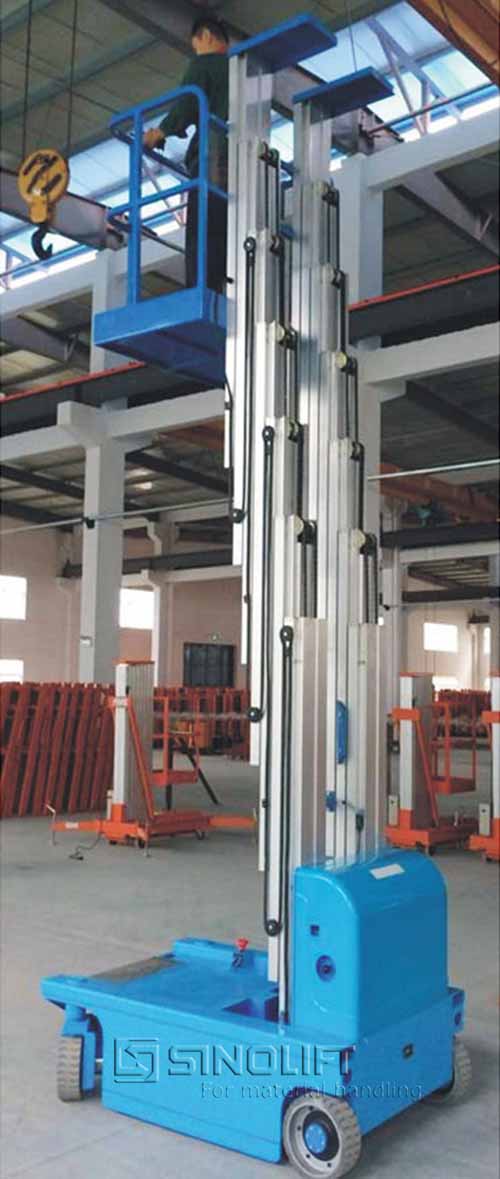

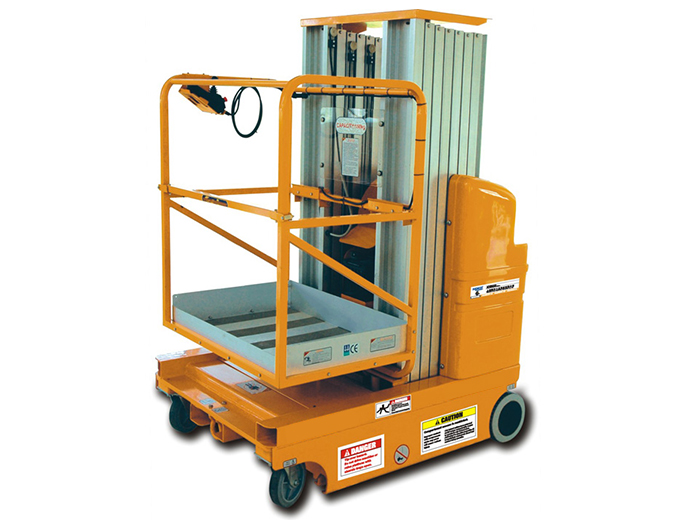

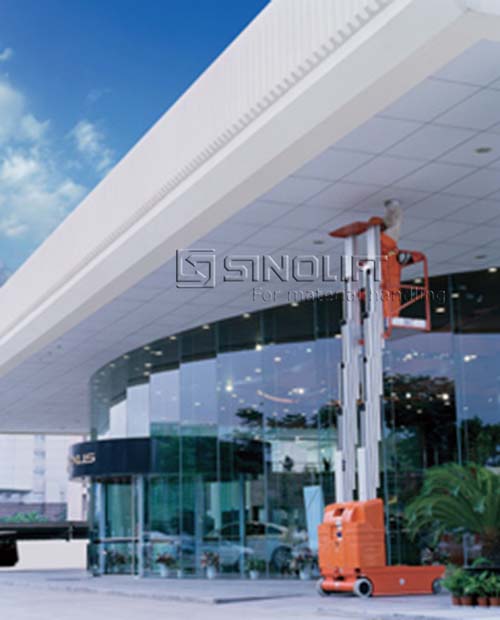

Name：AMWP2000 Self-propelled electric aluminium double mast work platform
Model：AMWP2000
Product Introduction：The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is for two persons working together. 1)It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push. 2)The driving motor has the automatic braking function. 3)It can climb to a certain gradient. 4)It has the function of protection of floor pit and tilt alarm. 5)The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked. 6)The electricity recharge is protected. In recharging condition, the operation is stopped.

●Be able to drive at maximum height
●Pit protection system for max. Safety
●Maneuverable, extremely easy to use;
●Safe ground clearance for indoor/outdoor Operation
●Robust, reliable and easy to maintain
●Standard feature
●Non-marking wheel
●Slope alarm
●Double wheel traveling speed
●Double wheel driving ＆ turning
●Flexible turning unit
●Charger indicator
●Hour meter
●Emergency lowering device

Model	AMWP9.5-2100	AMWP11-2100
S.W.L	200kg	150kg
Max. Occupants	1
Working Height(H1)	9.50m	11.00m
Platform Floor Height(H2)	7.50m	9.00m
Overall Length	1.55m
Overall Width	1.01m
Overall Height	2.00m
Platform Size	1.00m×0.70m
Ground Clearance	0.08m
Wheel Base	1.23m
Turning Radius(Inside)	0
Turning Radius(Outside)	1.9m
Drive Motors	2×24VDC/0.5kw
Lifting Motor	24VDC/2kw
Travel Speed(Stowed)	4.0km/h
Travel Speed(Raised)	1.1km/h
Up/Down Speed	42/31 sec	45/34 sec
Betteries	2×12V/120Ah
Integrated Charger	24V/10A
Gradeability	25%
Maximum Slope	2°/3°
Tyre	￠305×100mm
Gross Weight	1270kg	1345kg
