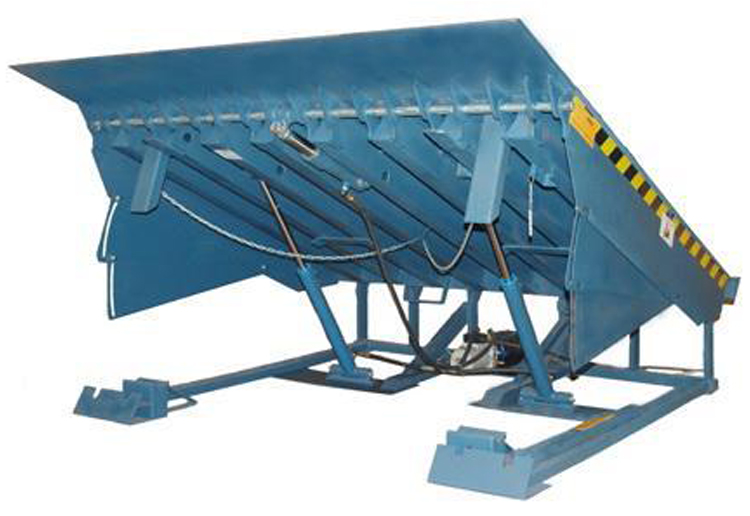

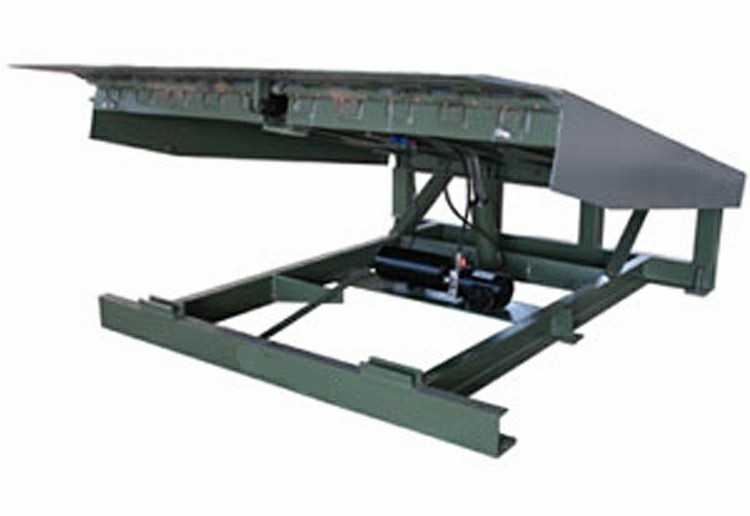

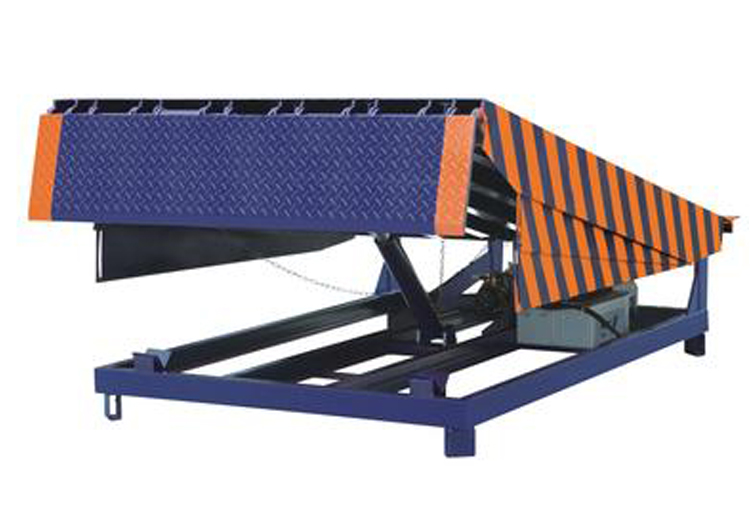

Name:DKL-HE Fixed electro-hydraulic dock leveler
Model:DKL-HE
Product Introduction:· The hydraulic system adopts Italian products and has excellent performances and quality assurance. · The unique “streamline” open hinge joint design increases 270% of welding position than tubular joint and has longer service life and convenient maintenance. · The uniquely designed “H” type steel frame can equally bear pressure, reduces the torsion and is more firm and durable than other channel steel and structures. · It is more safe and reliable when using the brace rod to support the leveler during maintenance and cleaning. · The front en

· Load and unload trucks without a dock with this hefty scissors lift.

· Engineered for maximum safety and efficiency.

Saves time and reduces manhours where there are no docks. Checkered plate deck is made of heavy gauge steel for hard use. Hydraulic unit features emergency automatic stop if line breaks. Complete with upper travel limit switch, and overload relief. Push-button control is 24 volt on 20' coiled cord. Prewired control box includes Magnetic Starter and overload fuse. High visible hand rails are removable. Built for years of daily use, with minimum maintenance. Standard 6.5 HP 208-230/460 V, 3-phase, 60 Hz motor. FOB Shipping Point.
Two Speed Pump
Replace standard pump with 2 speed and increase lifting speed by 55% when lift is unloaded.
Warning Beeper & Strobe
Sounds during the lift and lowering operation. 80 decibels.
Stop Signal Sign
Guides driver so truck will be properly positioned. Prevents damage to the truck door and scissor lift. Driver backs up until truck touches signal arm. Adjustable height and projection for different truck-to-dock requirements.

Model DKL-12HE-1820 DKL-12HE-2020 DKL-12HE-2025
DKL-14HE-1820 DKL-14HE-2020 DKL-14HE-2025
DKL-16HE-1820 DKL-16HE-2020 DKL-16HE-2025
Capacity 12000kg 12000kg 12000kg
14000kg 14000kg 14000kg
16000kg 16000kg 16000kg
Platform Size B*A 1800*2000mm 2000*2000mm 2000*2500mm
Lip Board Size 450mm 450mm 450mm
Travel Up 300mm 300mm 300mm
Down 300mm 300mm 300mm
Pit Dimension L 2150mm 2150mm 2650mm
W+1/2" 1860mm 2060mm 2060mm
H 485mm,600mm 485mm,600mm 485mm,600mm
Power Pack HYDR-APP 0.75kw
