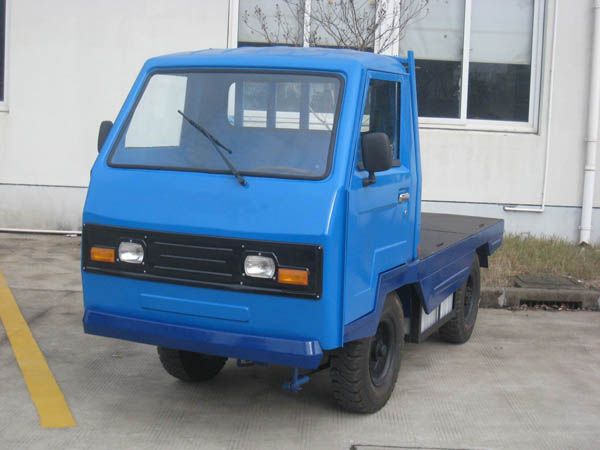

Name:SH-BD-M Burden Carrier
Model:SH-BD-M
Product Introduction:SH-BD-M Burden Carrier

SINOLIFT Platform Trucks are widely used for transporting non-palletized loads in big industrial plants, warehouses, post offices, hospitals, etc.

SINOLIFT Platform Trucks are designed to provide comfort to their users. Easy to maintain, they are available with advanced features that make them convenient for use.

Additionally, our trucks have a double platform, which makes them more efficient to carry maximum amount of lightweight goods. Also, their steering axle is designed in such a manner that it ensures constant road grip. Today, we are counted among the key Heavy Duty Platform Trucks Manufacturers and Suppliers in China

SINOLIFT MHE electric platform trucks are suitable for driving in stores, ware houses, large industries and airports. It is specially constructed for non-standard and non palletised material movements between two locations.It is built with high ground clearance and solid rubber wheels to operate both in and out side the plant.

SINOLIFT MHE Electric platform trucks modular electrical system allows for ease of maintenance, thereby reducing your operating and maintenance costs. Our electric platform trucks can be equipped with a ladder rack, tool boxes, tool cabinets, and a workbench and is an excellent choice for any maintenance application. Features like seat interlock, high pedal disable, and mechanical or hydraulic brakes provide maximum safety during daily operations.

All these features with factory equipped options to ensure highest quality standards, makes electric platform trucks the best value for your utility.









Model * * * * BD2B ZD2 4DBM 5DBM BD3M
1DB(-X) 2DB-X 2DB 3DB
Rated Load Capacity (Kg) 1000 2000 2000 3000 2000 2000 4000 5000 3000
Platform Size (L*W) 1400*1000 1630*1150 2180*1350 2400*1350 2000*1400 2080*1400 2240*1400 2500*1400 2240*1400
Min. Height (mm) 560 680 700 820 700 820 820 720 820
Outline Size (L*W) 2400*1000 2650*1150 3540*1350 3695*1350 3360*1400 3800*1400 3540*1400 3820*1400 3540*1400
Front Wheel Thead (mm) 835 917 1060 1070 1060 1060 1070 1070 1070
Rear Wheel Thead (mm) 850 981 1085 1115 1085 1115 1115 1115 1115
Wheel Base (mm) 1135 1370 1800 1900 1560 1650 1900 2185 1900
Ground Clearance (mm) 100 120 120 140 120 120 140 120 140
Drive Speed without Load (KM/h) 10 15 12 12 18 18 18 18 18
Drive Speed with Load (KM/h) 8 12 10 10 15 15 15 11.5 15
Min. Turning Radius (mm) 3000 3400 4000 4500 3500 3500 3900 4100 3900
Parking Brake distance (M) 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max. Gradeability  (%*m) 5*12 5*12 5*12 5*12 10*12 10*12 5*12 5*12 10*12
Driving Motor (KW) 1.35 2.5 2.5 5 3 3 5 6.3 5
Driving Motor Rated Current (A) 78 78 78 139 83 83 139 173 139
Battery Voltage (V) 24 40 40 48 48 48 48 48 48
Battery  Capacity  (AH/5hr) 250 250 250 308 250 250 330 440 308
Tire 500-8 600-9 700-9 700-12 700-9 700-9 700-12 700-9 700-12
Controller  KP2-150 KP2-150 KP2-150 QPK-41/48N KP2-150 KP2-150 QPK-41/48N QPK-41/48N QPK-41/48N
General Transmission Ratio. 7.51 7.51 7.51 11.32 11.69 11.32 11.32 11.32 11.32
