Home >> Products >> WPR Full Electric Pallet Tilter

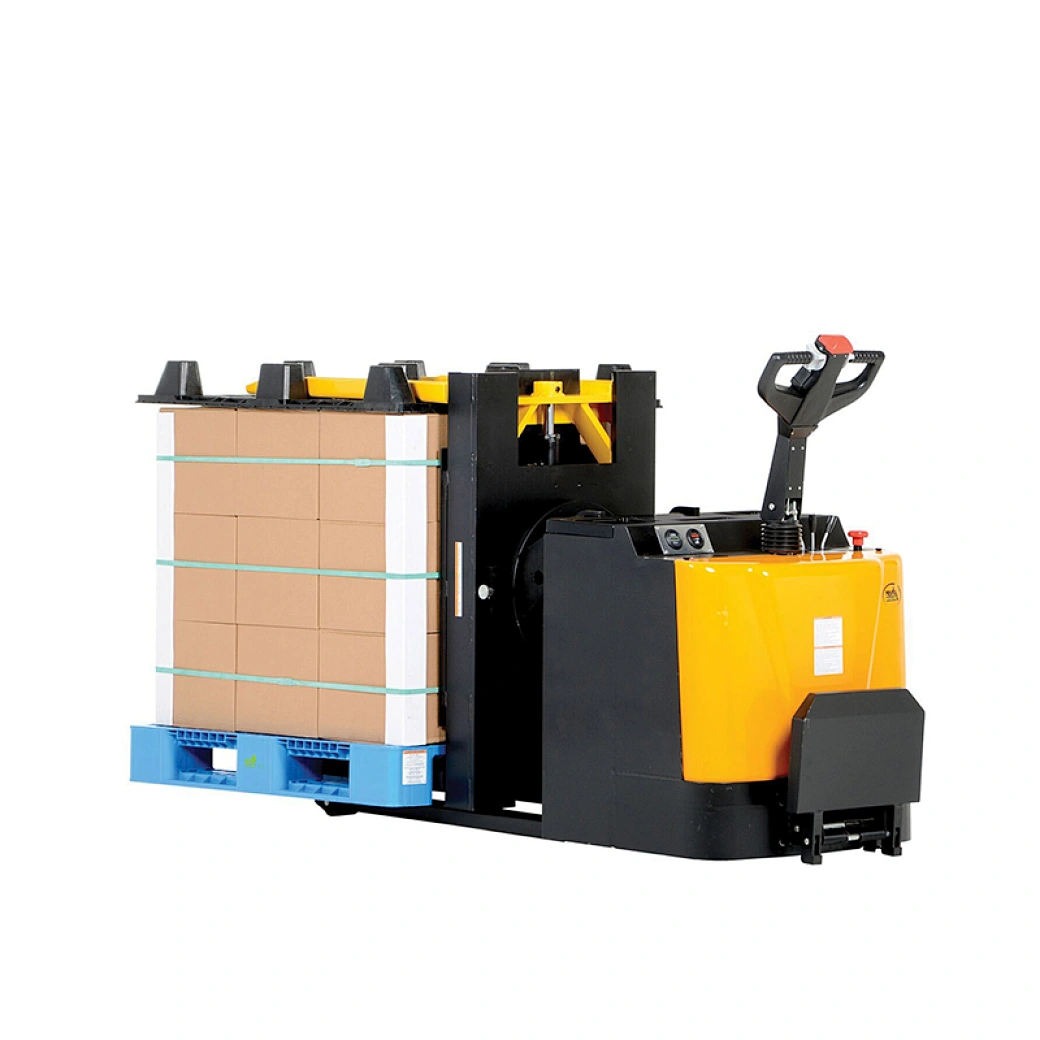

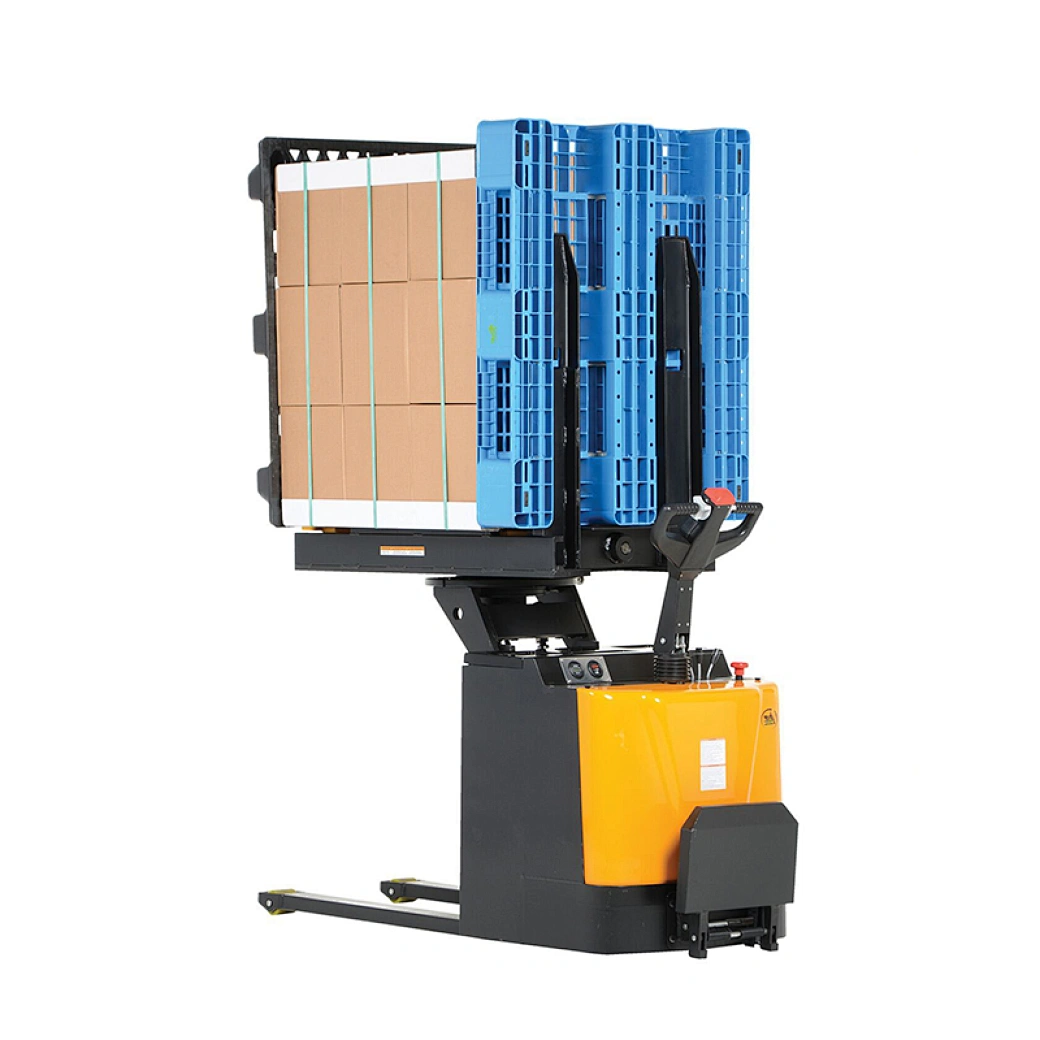

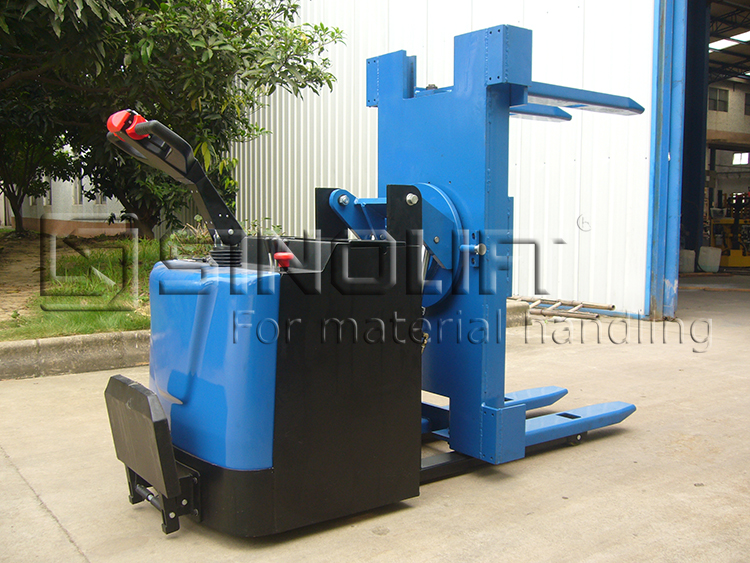

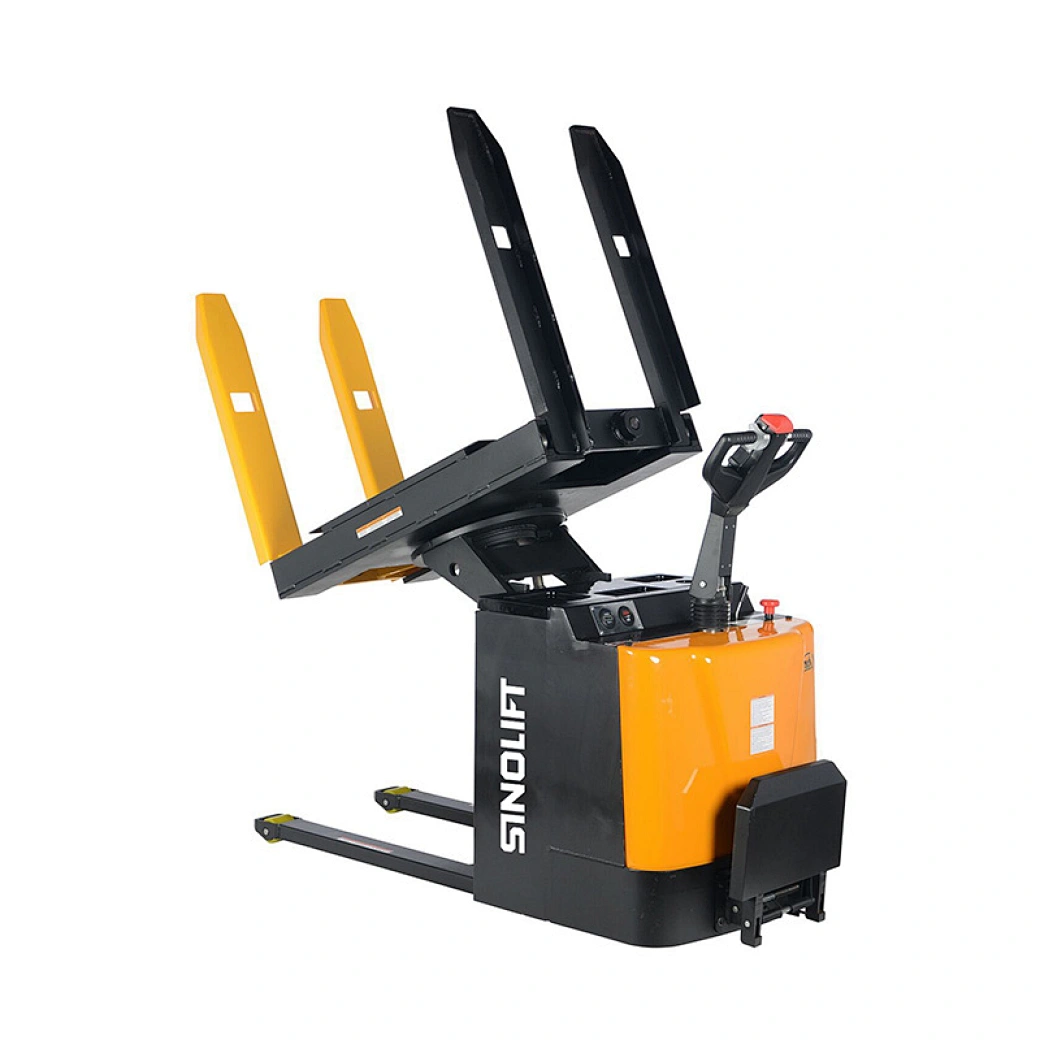

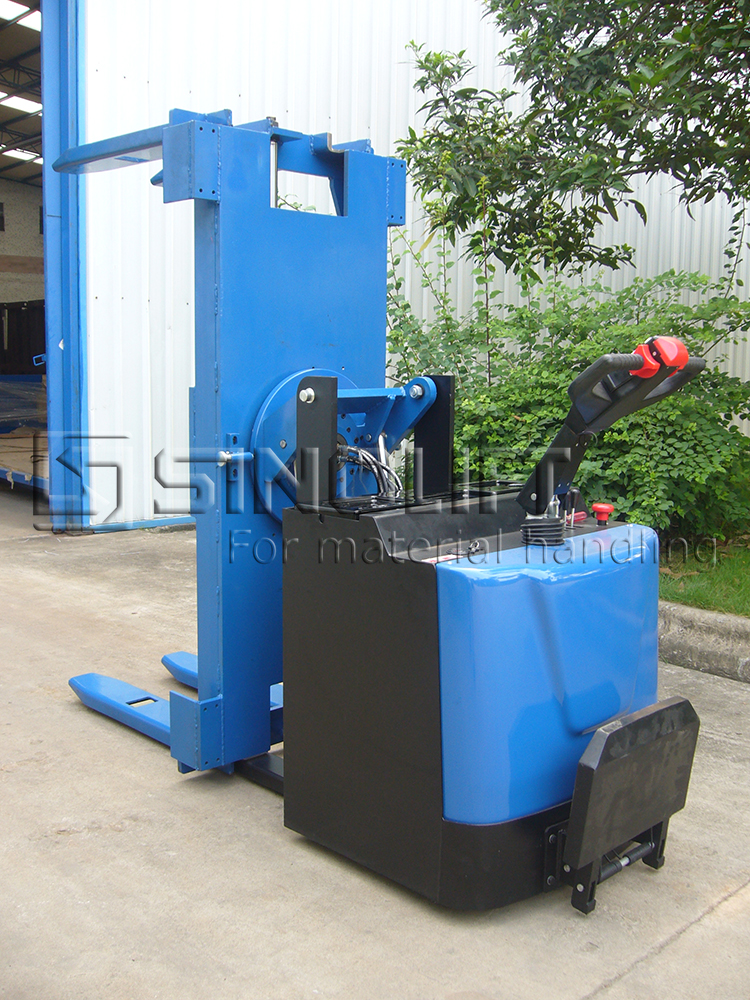

WPR Full Electric Pallet Tilter
Name：WPR Full Electric Pallet Tilter
Model：WPR100/122&WPR125/138&WPR150/155&WPR150/178
Product Introduction：1.Can be used as a power pallet truck,pallet tilter/reverser and trun table. 2.When it tilts up,it serves as a work table to blow and dry paper in vertical. 3.Specially designed for carrying,rotating printing paper and other materials
Feature
Specifications
PDF
IMAGES

1.Can be used as a power pallet truck,pallet tilter/reverser and trun table.

2.When it tilts up,it serves as a work table to blow and dry paper in vertical.

3.Specially designed for carrying,rotating printing paper and other materials

Model WPR100/122 WPR125/138 WPR150/155 WPR150/178
Capacity kg 1000 1250 1500 1500
Clamp range size mm 500-1500 500-1500 500-1500 500-1500
Single Fork Width mm 150 150 160 160
Fork Length mm 880 880 880 880
Max. Platform height mm 1460 1460 1575 1575
Fork width mm 550 550 550 550
Lowest Height mm 90 90 90 90
Max.Fork Open mm 1220 1380 1550 1780
Min.Fork Close mm 800 915 500 500
Rise Time s 28 28 28 28
Down Time s 10 10 10 10
Battery 160A 12x2V 180A 12x2V 210A 12x2V 280A 12x2V
Lift Motor DC24V 2kw DC24V 2kw DC24V 2.0kw DC24V 2.0kw
Driving Motor DC24V 1.0kw DC24V 1.0kw DC24V 1.2kw DC24V 1.2kw
Weight kg 750 750 840 840
Overall Size mm 850x1960x1980 850x1960x1980 850x1960x1980 850x1960x1980
