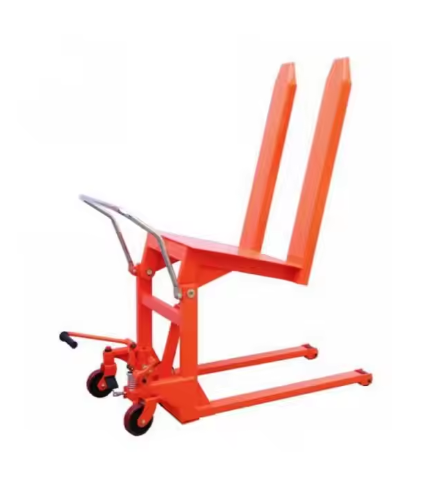

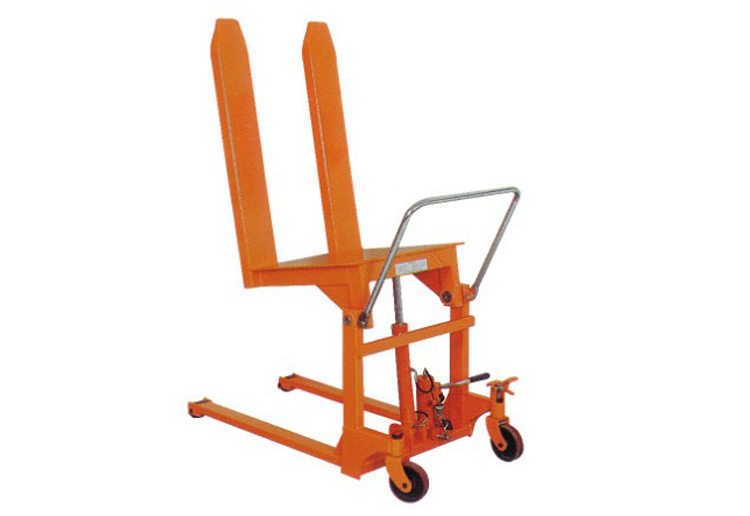

Name:TM Manual Skid Lifter
Model:TM1000
Product Introduction:1.Manual hydraulic pump tilter-lift & tilts crates, boxes & Euro pallets 2.Gives the user the ergonomically correct position to reach loads easily without bending or stretching 3.Lifting capacity - 1000Kg 4.Forks will title through to 90° 5.Pulling / Pumping handle can be locked in position away from line of work 6.Lift & Tilt operated by single pump unit fitted with supply changeover valve 7.The handle can be turned to the side and locked, so that the user has free access to the contents of the crate or box without having to bend down or stretch up in both standing and sitting work positions - Optimum safety for the user through foot protectors and parking brake supplied as standard - Strong construction ensures a long operating life and low maintenance costs - CE marked

1.Manual hydraulic pump tilter-lift & tilts crates, boxes & Euro pallets

2.Gives the user the ergonomically correct position to reach loads easily without bending or stretching

3.Lifting capacity - 1000Kg

4.Forks will title through to 90°

5.Pulling / Pumping handle can be locked in position away from line of work

6.Lift & Tilt operated by single pump unit fitted with supply changeover valve

7.The handle can be turned to the side and locked, so that the user has free access to the contents of the crate or box without having to bend down or stretch up in both standing and sitting work positions
- Optimum safety for the user through foot protectors and parking brake supplied as standard
- Strong construction ensures a long operating life and low maintenance costs
- CE marked

Model TM1000
Load Capacity kg/lbs 1000/2200
Overturn Degree 88°
Lowest Height mm 90
Fork Length mm 1160
Fork Width mm 660
Table Size mm 710X670
Packing Dimensions mm 1600X00X720
Net Weight kg 145
