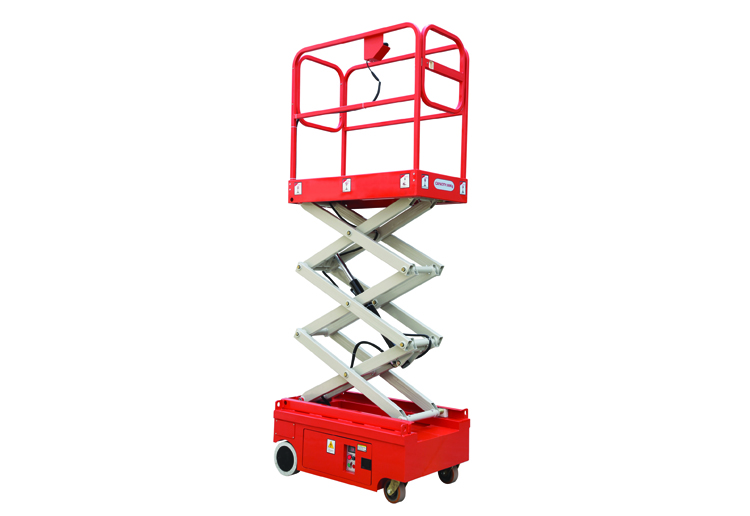

Name:FSJY3/3.9 MINI Aerial Working Platform
Model:FSJY3/3.9
Product Introduction:The self-propelled mini scissor are used for lifting and performing a variety of construction, installation, and maintenance tasks in the air. They are used for carrying workers to perform aerial tasks such as installing and maintaining windows, electrical fixtures, ducts, drywall, ceiling panels, and overhead sprinklers, among many others. For industrial use only.

The self-propelled mini scissor are used for lifting and performing a variety of construction, installation, and maintenance tasks in the air. They are used for carrying workers to perform aerial tasks such as installing and maintaining windows, electrical fixtures, ducts, drywall, ceiling panels, and overhead sprinklers, among many others. For industrial use only.

* It can be driven at full height and has a skid steer system for a zero inside turning radius.


*It can be controlled from either the ground or platform and has a battery charge indicator as well as an on board diagnostic display for troubleshooting.


*It also has an emergency stop button, a descent alarm, an electronic horn, and a manual platform lowering valve for safety.


* It also has built in lanyard attachment points and operates with a low level of noise in quiet work environments.

Model FSJY3 FSJY3.9
Lifting capacity kg 300 300
Platform size mm 1170x600 1170x600
Max. working height mm 5000 5900
Max. platform height mm 3000 3900
Ground clearance mm 60 60
Wheel base mm 990 990
Min. turn radius mm 1200 1200
Driving motor v/kw 2x24/0.4 2x24/0.4
Lifting motor v/kw 24/0.8 24/0.8
Running speed (platform stowed) km/h 4 4
Running speed (platform elevated) km/h 0.8 0.8
Rising/falling speed sec 20/30 20/30
Battery V/Ah 2x12/80 2x12/80
Charger V/Ah 24/15 24/15
Max. climbing ability % 10~15 10-15
Max. working allowable angle /
Driving wheel mm 230×80 230x80
Front wheel in 6 6
Overall length mm 1180 1180
Overall width mm 760 760
Overall height mm 1830 1930
Whole capacity kg 490 600
