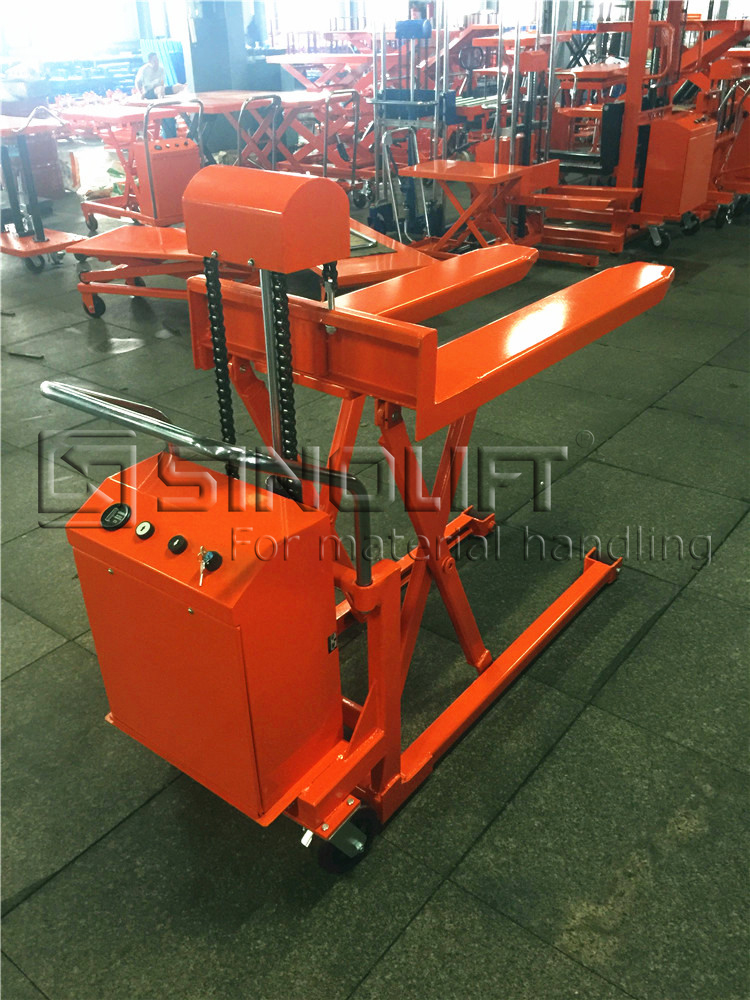

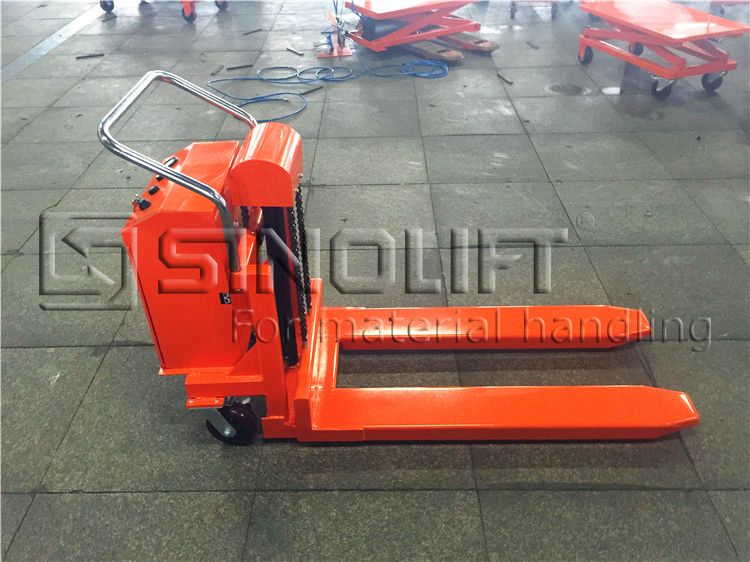

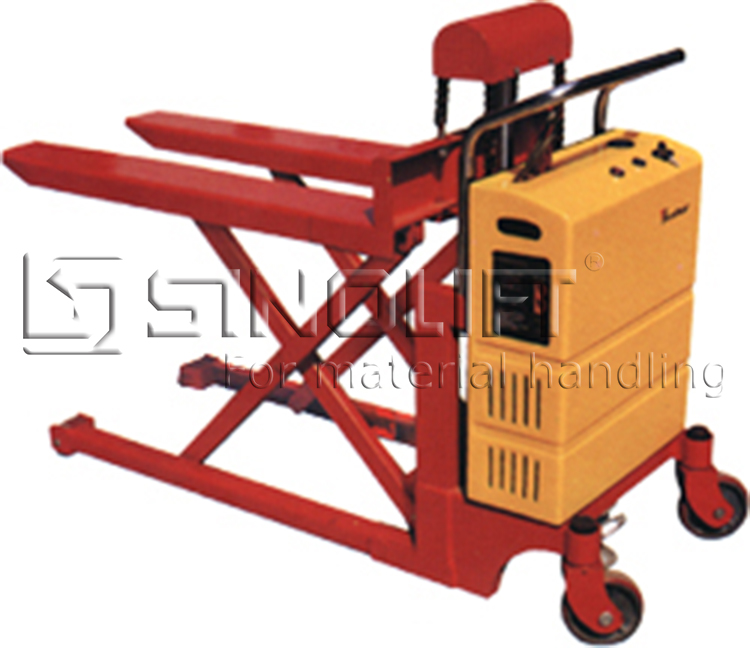

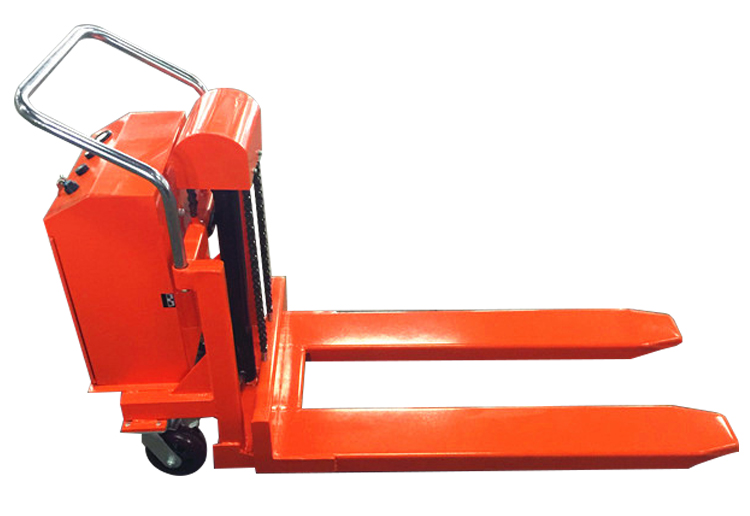

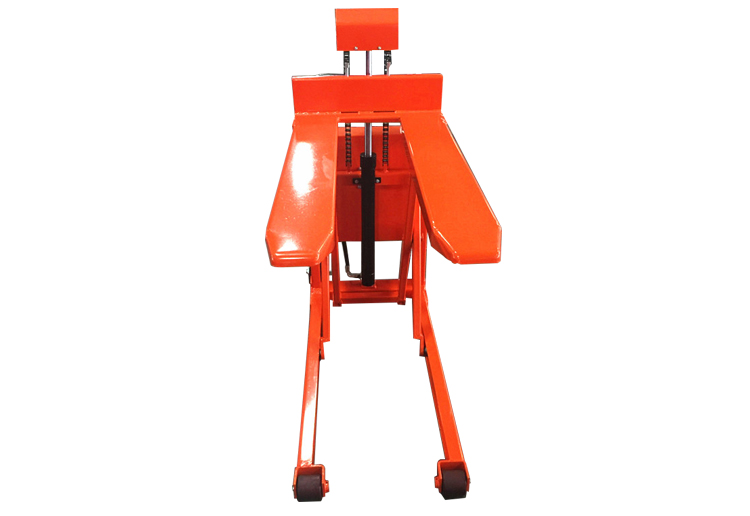

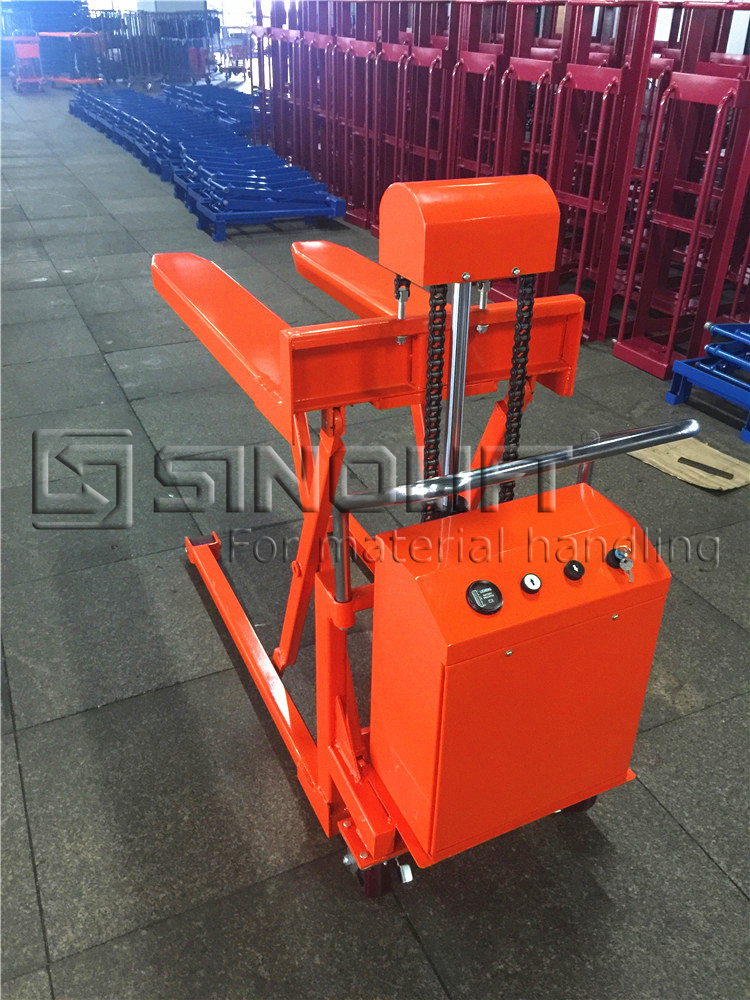

Name:EQSD Electric Scissors Skid Lifter
Model:EQSD50-550/EQSD50-685/EQSD100-550/EQSD100-685
Product Introduction:1.Correctly position skids and work surfaces to minimize back strain. 2.Similar to the manual lift table, but with movable in upper position. 3.Ideal for your loading and unloading operations. 4.Continuous welded heavy steel frame and forks handle weighty load with easy. 5.Easy-to-use control lever, plus two parking brakes on steering wheels increase safety.

1.Correctly position skids and work surfaces to minimize back strain.

2.Similar to the manual lift table, but with movable in upper position.

3.Ideal for your loading and unloading operations.

4.Continuous welded heavy steel frame and forks handle weighty load with easy.

5.Easy-to-use control lever, plus two parking brakes on steering wheels increase safety.

Model EQSD50-550 EQSD50-685 EQSD100-550 EQSD100-685
Capacity kg 500 500 1000 1000
Lowered height mm 80 80 90 90
Lifting Height mm 900 900 900 900
Fork length mm 1100 1100 1100 1100
Fork width mm 550 685 550 685
Single fork width mm 160 160 160 160
Overall length mm 1720 1720 1720 1720
Overall height mm 1030 1030 1030 1030
Net Weight kg 155 187 208 220
