Home >> Products >> ELT0809 Electric Pallet Tilter

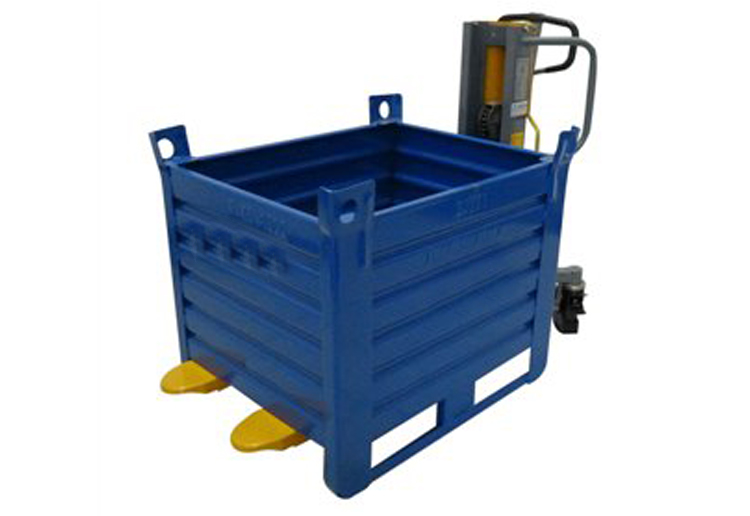

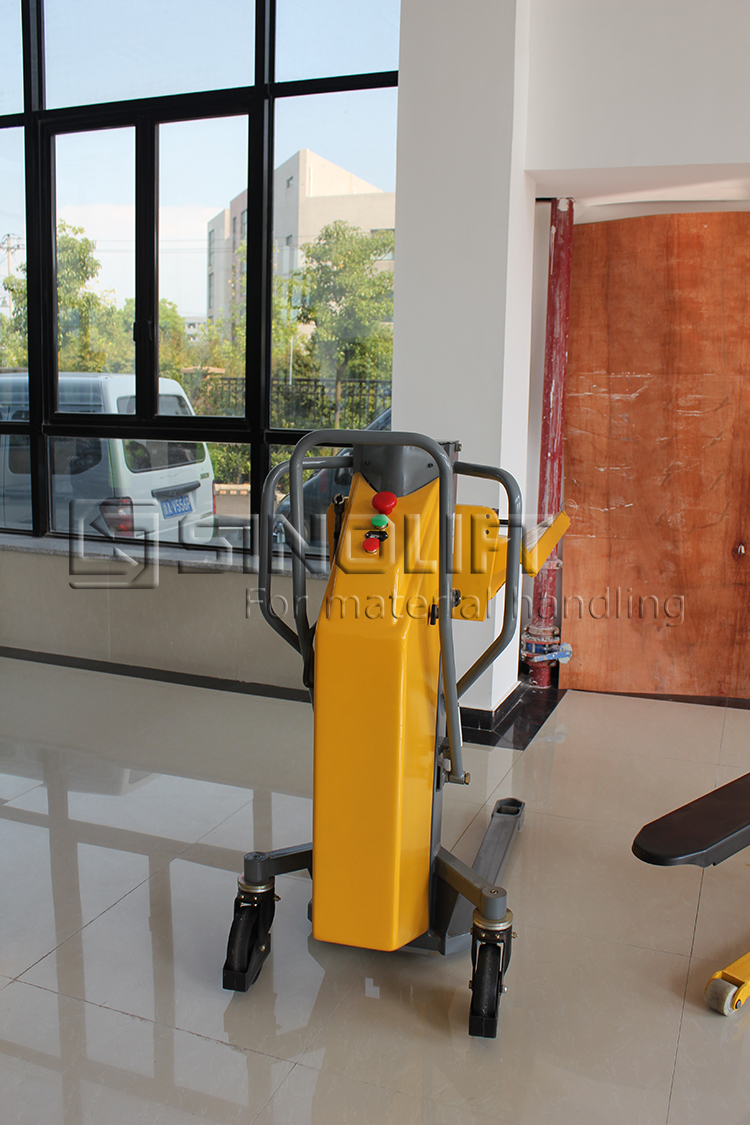

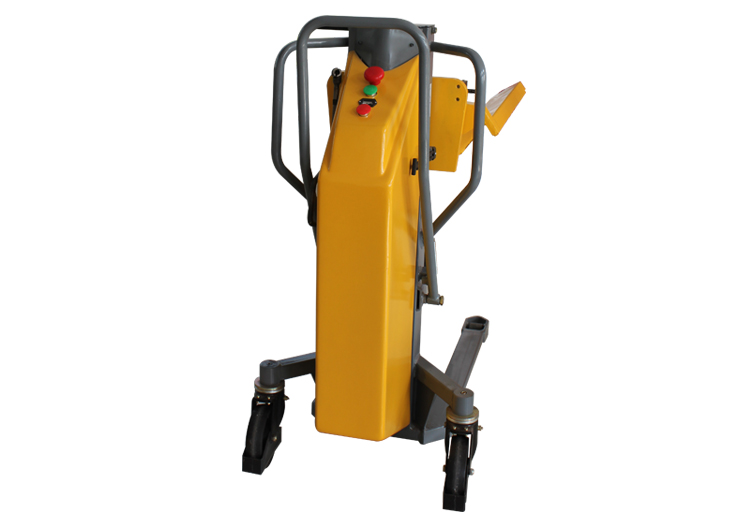

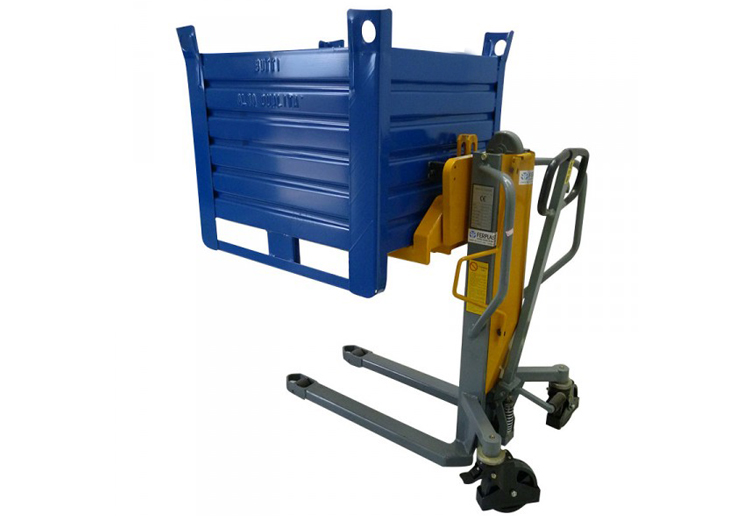

ELT0809 Electric Pallet Tilter
Name：ELT0809 Electric Pallet Tilter
Model：ELT0809
Product Introduction：1.Manual high lift truck with electric lifting is designed for transport and material handling and stacking of material on pallets. 2.It decreases physical strain of person manipulating with materials. 3.ELT0809 has tilting device.
Feature
Specifications
PDF
IMAGES

1.Manual high lift truck with electric lifting is designed for transport and material handling and stacking of material on pallets.
2.It decreases physical strain of person manipulating with materials.
3.ELT0809 has tilting device.
Model ELT0809
Device with tilting device
Capacity kg 800
Length mm 1690
Width mm 730
Height mm 1420
Length of the forks mm 1150
Width of the fork mm 150
Min.height over the floor mm 87
Forks width mm 540
Spacing between the forks mm 240
Lifting height mm 900
Bearing surface of the forks mm 1140x540
Forks tilting angle degree 20°
Lifting speed without load mm ≥0.07
Lifting speed with load mm ≥0.05
Lowering speed with a load controllable
Clearance above floor mm 30
Battery 2x12V/60Ah
Power Pack Unit 12V/700W
Net Weight kg 271
