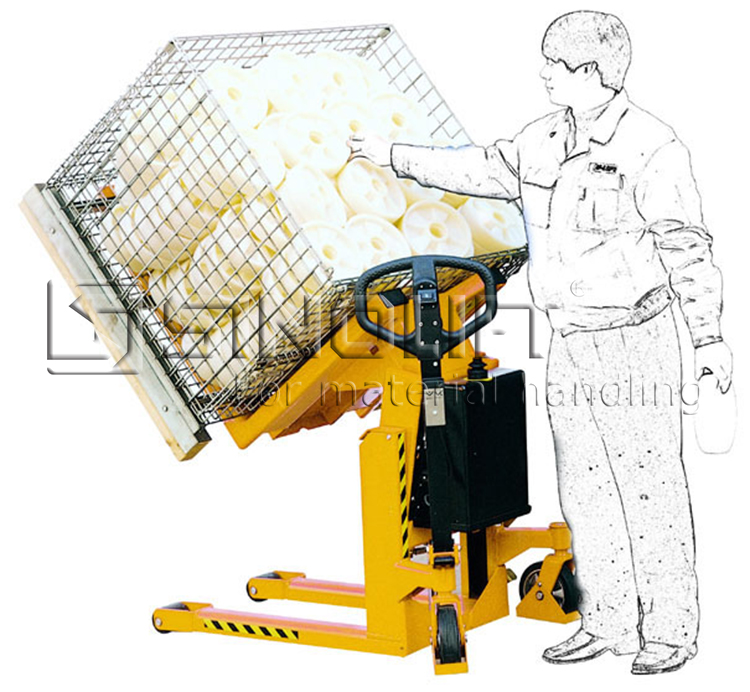

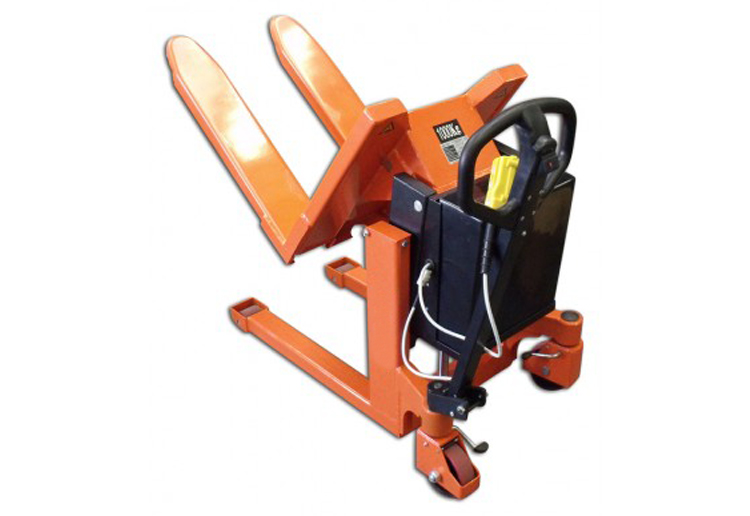

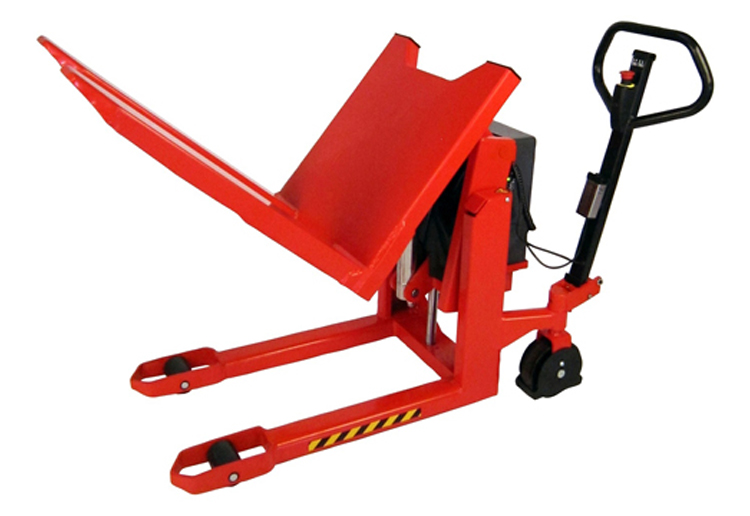

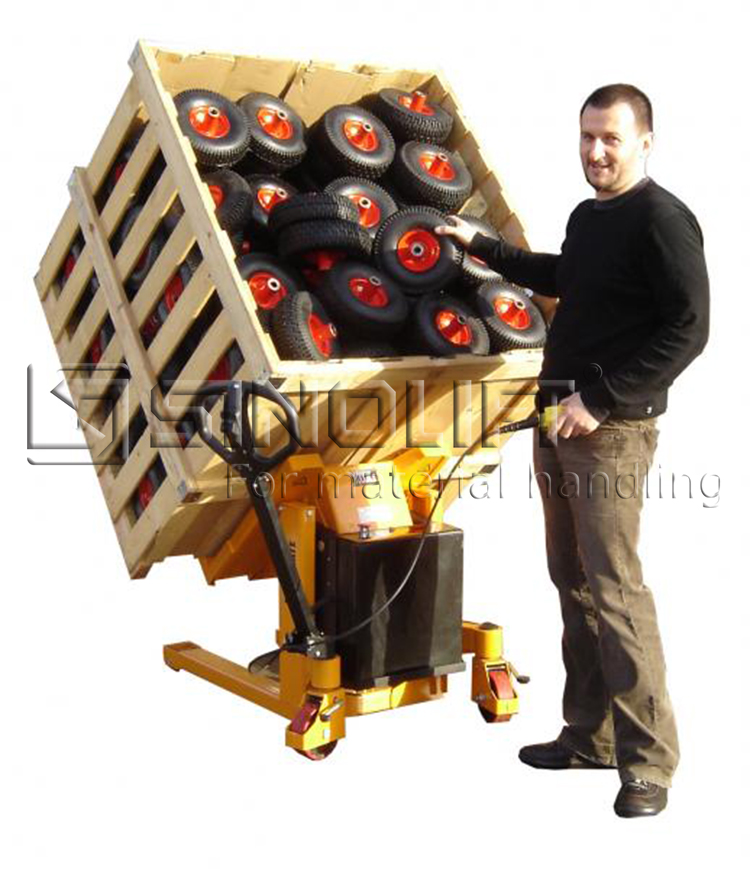

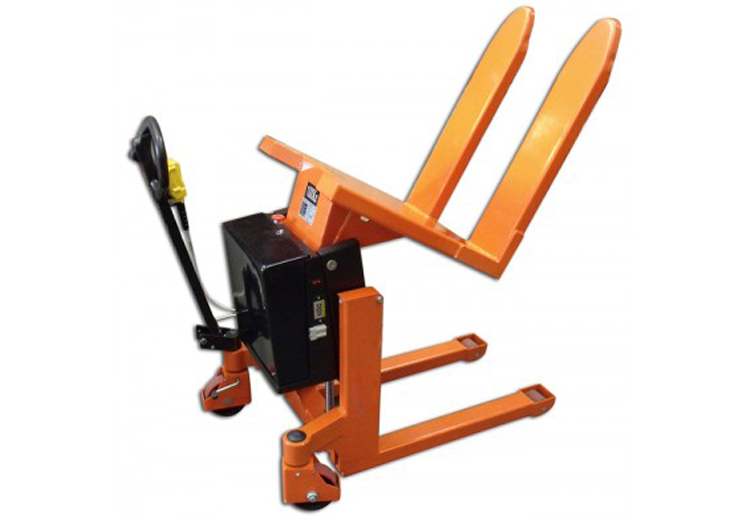

Name:LT10E Electric Pallet Tilter
Model:LT10E
Product Introduction:Pallet Tilter  LT series Manual and Electric Version 1.Designed to give the user an ergonomically correct position to reach      loads easily without the necessity of bending down or stretching up. 2.Handle can be turned and locked in position away from the work area. 3.Applies to both sitting and standing positions. 4.Forks can be tilted up to 90°. 5.Both are supplied as standard with parking brake and foot protectors. 6.Conforms to EN1757-1 and EN1175.

Pallet Tilter  LT series

Manual and Electric Version

1.Designed to give the user an ergonomically correct position to reach
    loads easily without the necessity of bending down or stretching up.
2.Handle can be turned and locked in position away from the work area.
3.Applies to both sitting and standing positions.
4.Forks can be tilted up to 90°.
5.Both are supplied as standard with parking brake and foot protectors.
6.Conforms to EN1757-1 and EN1175.

Model LT10E
Type Electric
Capacity (kg) 1000
Lifting Height, Vertical (mm) 285
Min.Fork Height  (mm) 85
Fork Length  (mm) 800
Handle Height (mm) 1138
Overall Fork Width (mm) 560
Width Between Forks  (mm) 234
Fork Tip Length From Roller (mm) 135
Overall Width (mm) 638
Overall Length (mm) 1410
Overall Height, Raised (mm) 950
Overall Height, Lowered (mm) 750
Load Centre Min./Max. (mm) 200/400
Load Centre Min./Max. (mm) 200/420
Power Unit (KW/V) 0.8/12
Net Weight (kg) 185
