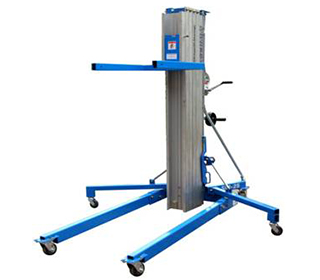

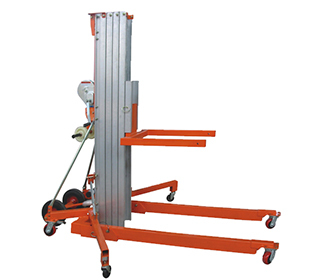

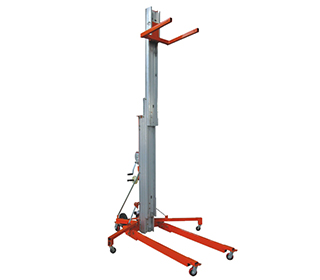

Name：LGA Aluminum Material Lift
Model：LGA
Product Introduction：Manual super-material lift, is a no power source, manually operated material lift, it is designed compact, lightweight, highly mobile and can be easily through standard doorway, while easily handling. Super-lifting, even if the weight of 454kg in weight, can also be upgraded to maximum 3.48m, or 295kg to 7.95m. LGA series Material lift platform can be fully used in the construction, industry, storage, exhibition, stage construction, the advertising industry, central- air conditioning.

Features:

1- Lowering easily

To make you lift quickly and convenient, the LGA super material lift can be operated by one person for lifting and moving the goods.

2- Multiple optional parts such Lighthouse device

LGA series material lift can be equipped with multiple fork, such as the lighthouse device can be used for emergency lighting and other uses.

3- The stowed height of the LGA series materials lift is lower than 2m, it is easily to pass cross the standard doorway, the Roller equipped on the back makes the transportation more convenient.

Model		LGA-10	LGA-15	LGA-20	LGA-25
Lifting height	mm	3000	4500	6000	7400
Working length	mm	1460	1840	2040	2040
Rated load	kg	454	363	363	295
Overall length	mm	740	740	740	790
Overall width	mm	800	800	800	800
Overall height	mm	1990	1990	1990	1990
Weight	kg	117.9	143.8	183.7	204.1
