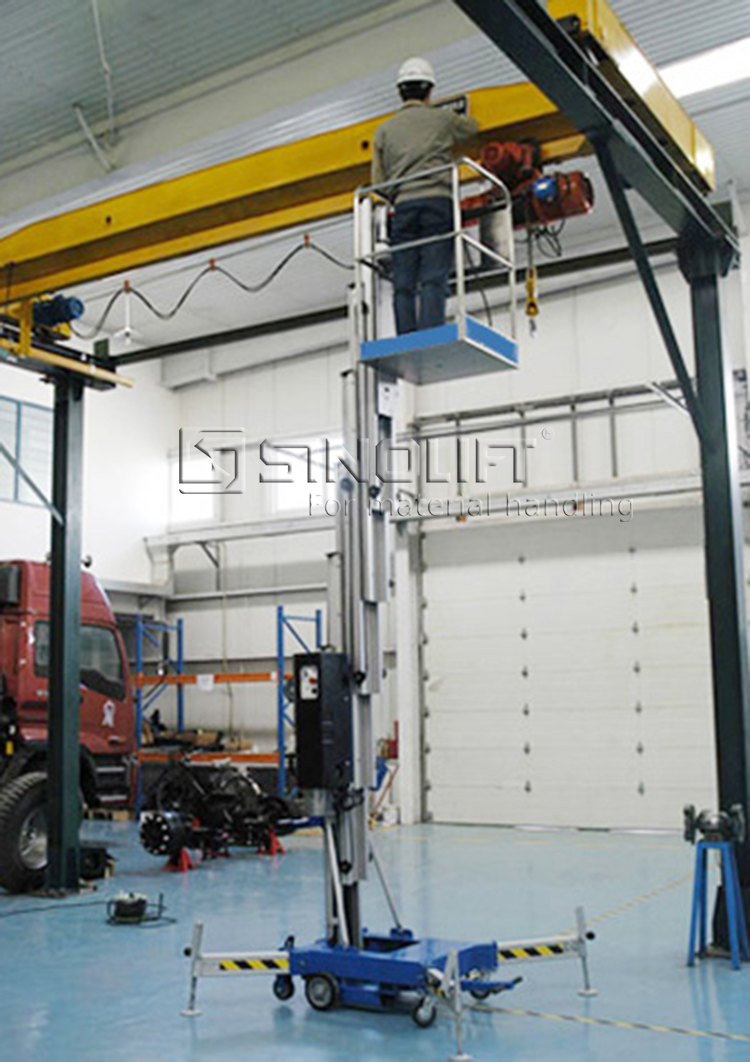

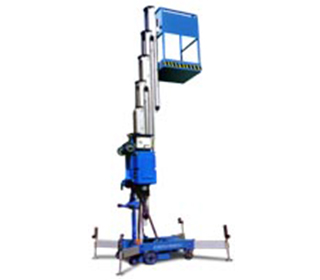

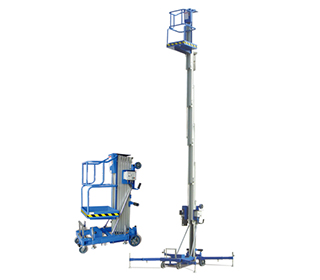

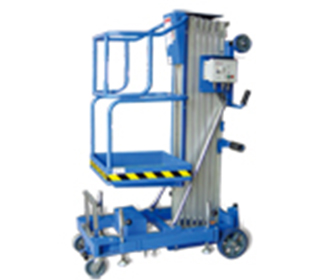

Name:GTC-H Manual Single Mast Lifter
Model:GTC-H
Product Introduction:The whole machine made of high strength material of aluminum alloy, elegant and delicate in the structure. The weight of complete machine is extremely light. Quite easy to push it on and go upstairs and downstairs, capable to pass through common entrance halls and pass in/out elevators. Less power consumption, free of noise and pollution, and no damage to the floor in the case of work. Can be used for operation with the wall and out operation.

Features:

1. With high strength aluminum alloy material, effective for less deflection and wavering during elevation.

2. With imported hydraulic pressure pump valve and electric motors with CE certification of E.U. Stable operation and little noise

3. Every product mounted with DC power on basis of customer’s requirement.

4. Independent electric unit with protection for electric leakage or overloading.

5. Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance, GTC-6B, GTC-7B with safety inserted legs to assure the protection of the operator.

6. With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.

Model Platform Capacity Max. Height of Platform Max. Work Height Store Dimension Power Voltage Motor Power Total weight
kg m m m v kw kg
GTC6B   100 6.4 8.2 1.30×0.76×2.00  220 1.5 310
GTC7B   100 7.2 9 1.38×0.76×2.00  220 1.5 330
GTC9B   100 9.2 11 1.38×0.76×2.00  220 1.5 350
GTC12H   100 12.15 14 1.25×0.74×2.85  220 1.5 450
GTC14H   100 14.5 16.3 1.25×0.74×3.31  220 1.5 550
