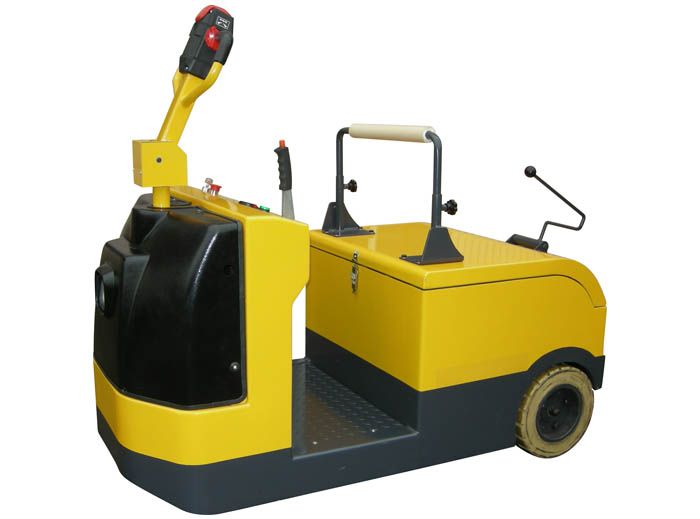

Name:QD-30SH Electric Towing Tractor
Model:QD-30SH
Product Introduction:QD-30SH Electric Towing Tractor

With traction capacity of 2000kgs to 3000kgs, the tractor truck is mainly used to transport large amounts of goods in a workshop or among workshops.

This QD-SH stand-on tractor uses the same battery 24-volt as seated tractors, as a result, you can upgrade your fleet of tractors at a minimal cost.

Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.

Special design's the space lets driver's work be more relaxed comfortably.





Model No. QD-20SH QD-30SH
Towing Capacity kg   2000 3000
Driving Motor W   DC-24V-2000W  DC-24V-2000W
Battery     D-240A 24V D-300A 24V
Driving Speed km/h   7 7
Controller Type     MOSFET  MOSFET
Working Time Hours    6 6
Min. Turning Radius mm R 1000 1380
Operation Type     Stand-on Stand-on
Min.under-clearance mm   85 85
Steering Wheel mm   White Rubber Φ267x127 White Rubber Φ267x127
Drive Wheel mm   Φ330x165 Φ330x165
Overall length mm L 1490 1490
Overall width mm W 820 820
Overall height mm H 1350 1350
Service Weight kg   1150 1450
