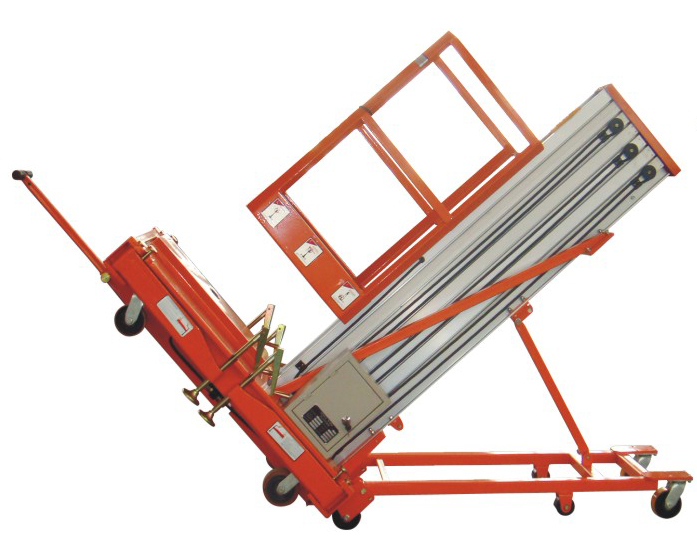

Name:GTWY-1200 Tilting Single Mast Lifter
Model:GTWY-1200
Product Introduction:With high strength aluminum alloy material effective for less deflection and wavering during elevation. With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise. Every product mounted with DC power on basis of customers’ requirement.

Features:

1. With high strength aluminum alloy material effective for less deflection and wavering during elevation.

2. With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise.

3. Every product mounted with DC power on basis of customers’ requirement.

4. Independent electric unit with protection for electric leakage or overloading.

5. Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance.

6. With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.

Model No. AWP6-1200 AWP8-1200 AWP10-1200
Max. Platform Height mm 6000 8000 10000
Working Height 7700 9700 11700
Ground Clearance 80
Lift Rated Capacity kg 150 125 125
Platform Size mm 650*600
Outspread Size 1930*1770
Electrical Source    AC   V 220
   DC   V 24
Aneroid Battery V/Ah 2*12/60
Charger V/A 24/10
Lifting Motor AC  V/KW 220/0.75
DC  V/KW 24/2.0
Overall Length mm 1560
Overall Width mm 800
Overall Height  mm 1950 2050 2150
Overall Net Weight AC  kg 300 350 400
DC  kg 330 380 430
