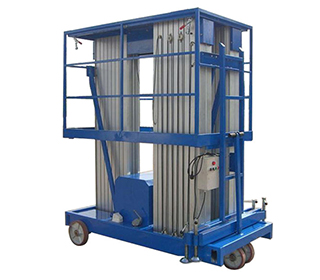

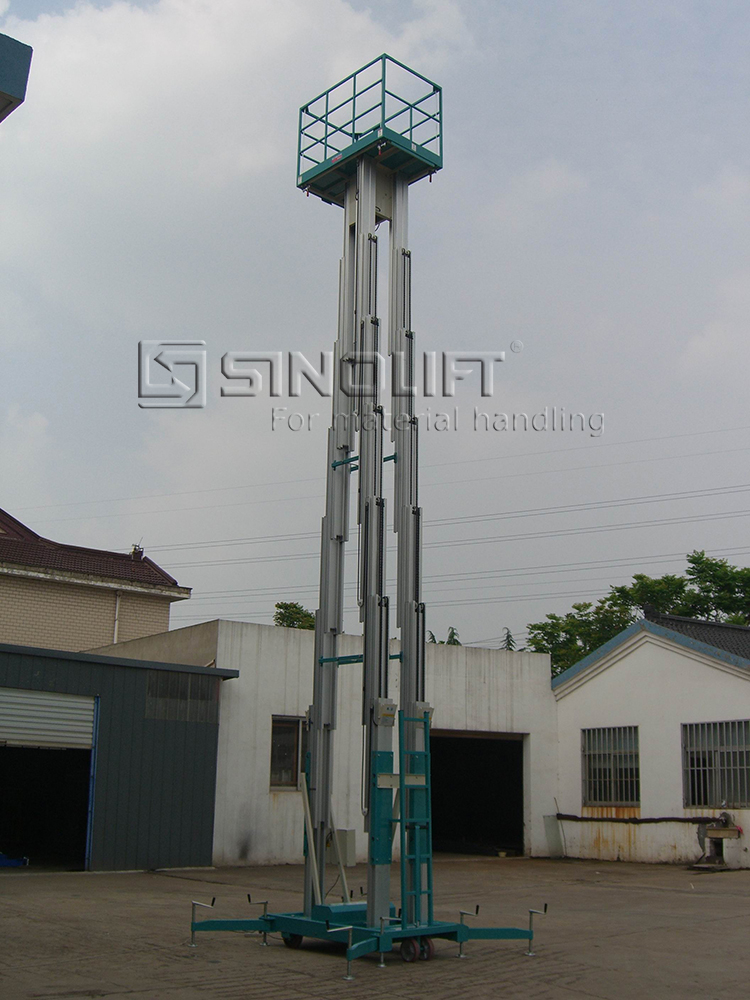

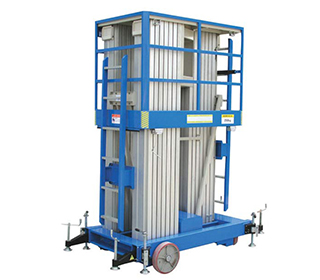

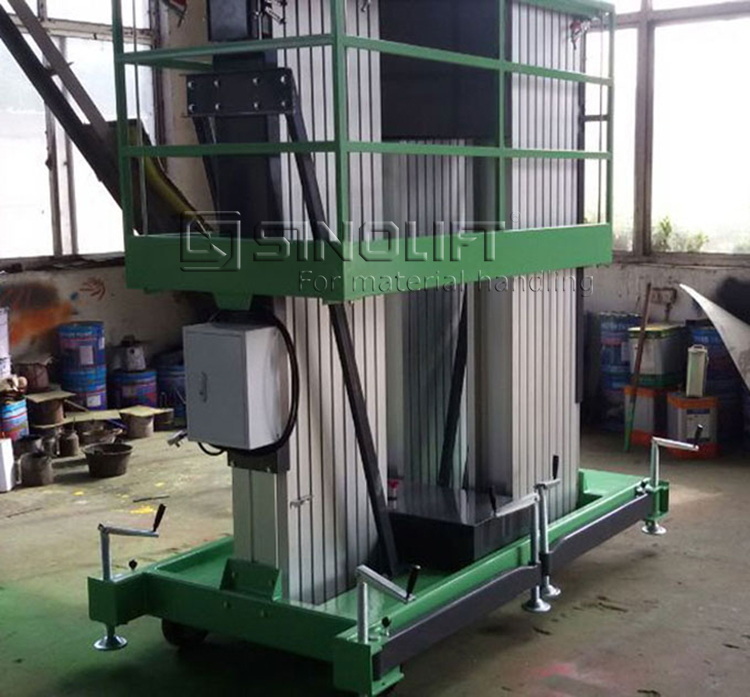

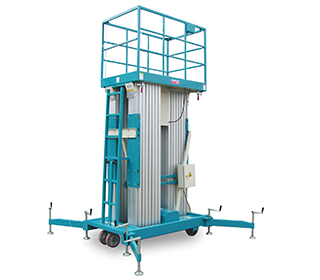

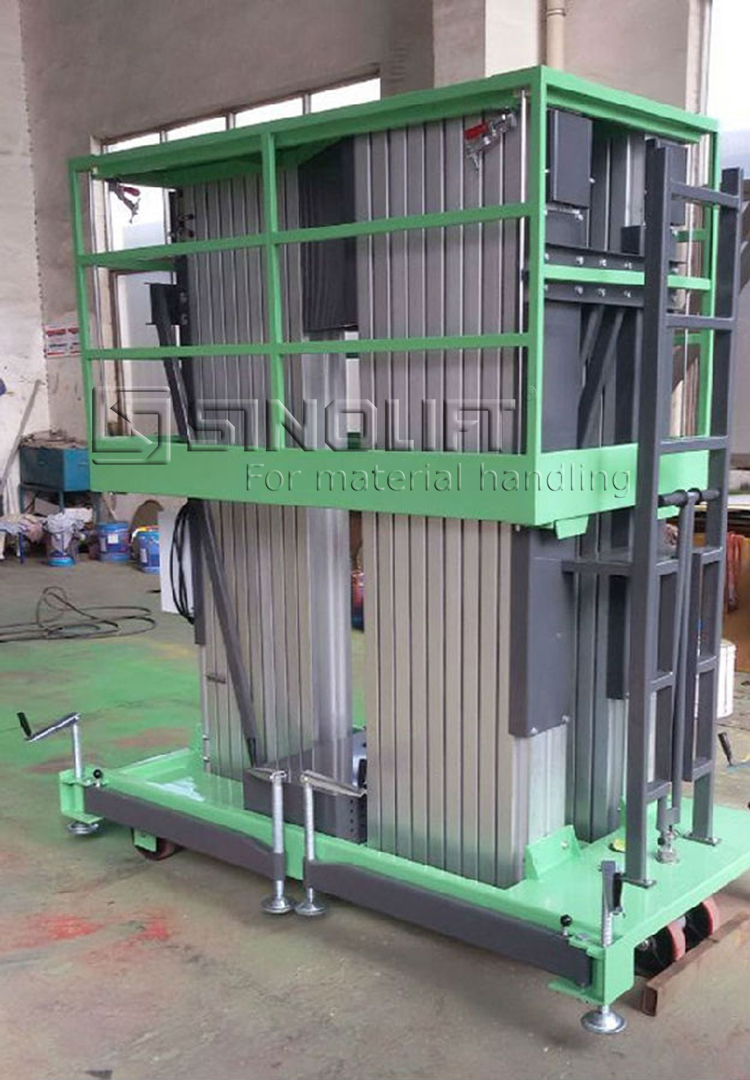

Name:GTWY-3000 Mobile Triple Mast Lifter
Model:GTWY-3000
Product Introduction:Aluminum lift platform adopts high strength aluminum alloy ,with light weight ,pretty appearance and compact body.it has safety steel wire and anti-fall device. It can reach up to 24m and load 2 max person working on the platform. The lift can pass through the low door and elevator, suit for small space. popular used for workshop, hotel, restaurant ,lobby, railway station, airport, cinema, exhibition hall, shopping mall and other place need to installation and maintenance.

Featurees:

1. Two sets of independent upper and lower lifting structures;
2. Three groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure;
3. The two structures can be shifted automatically with better operation and stability;
4. The guardrail can be entirely hung on the platform without occupying too much room, offering easy in passing through lower passage;
5. Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
6. Electric driving unit is equipped for moving;
7. Power Supply: Single phase AC;
8. Traveling Method: powered propeller as standard; manual traveling as option;
9. Available accessories: uninterruptible power supply;
10. Conforms to CE, one of National Key New Products 2001.

Model GTWY10-3000 GTWY12-3000 GTWY14-3000
Working Height mm 11700 13700 15700
Platform Height mm 10000 12000 14000
Platform Capacity kg 300 250 200
Loading Persons p 2 2 2
Platform Size mm 1480×800 1480×800 1580×800
Voltage v/hz Ac220/50 Ac220/50 Ac220/50
Power Pack kw 1.5 1.5 1.5
Stored Dimensions mm 1690x1040x2120 1690x1040x2480 1790x1040x2480
Net Weight kg 720 780 920
