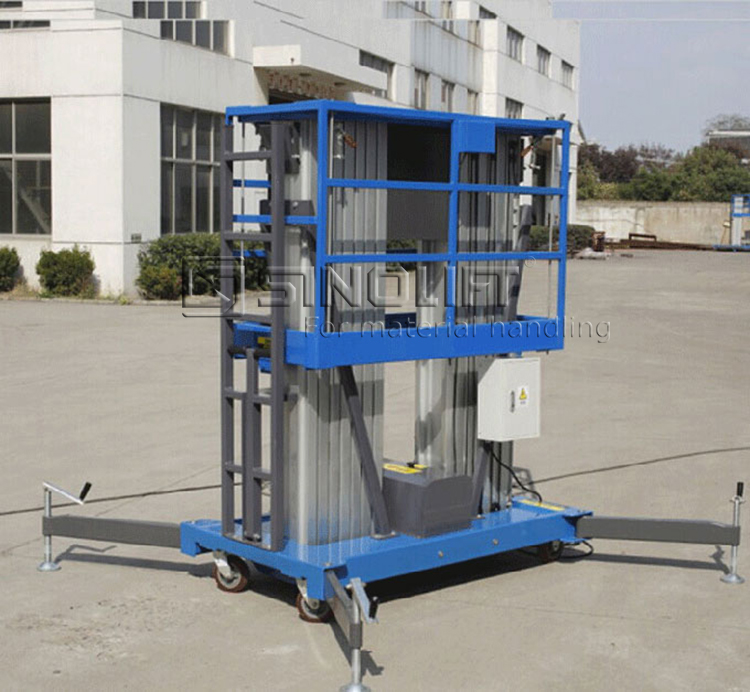

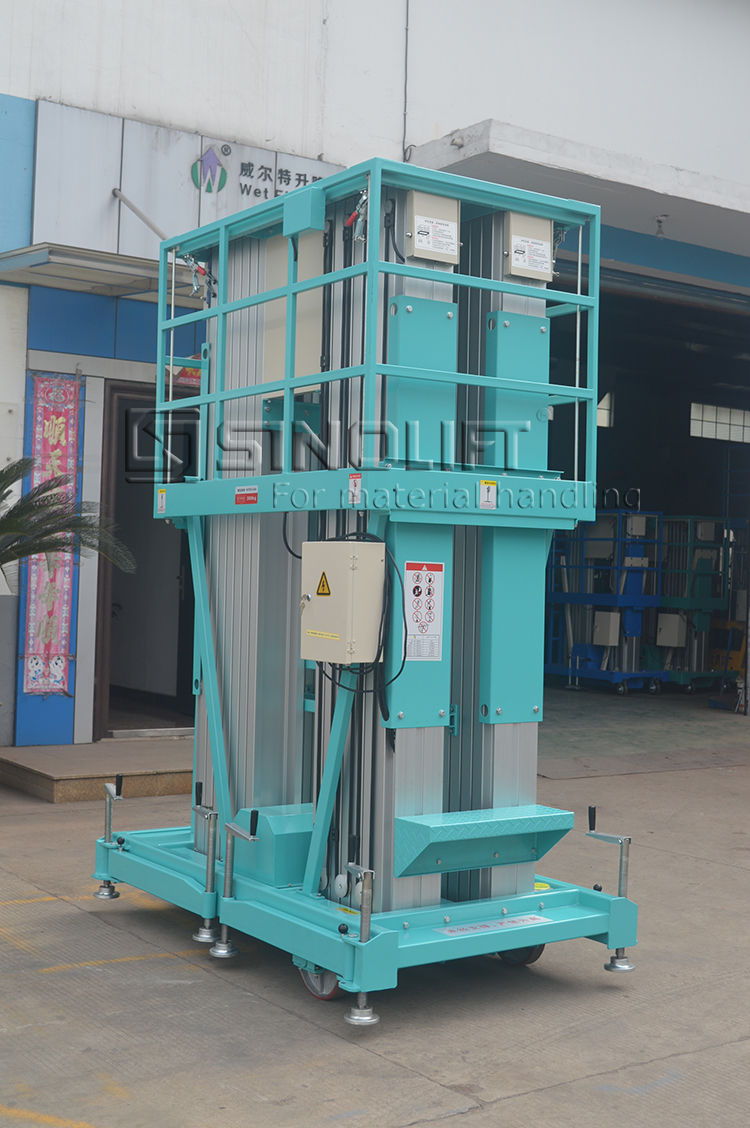

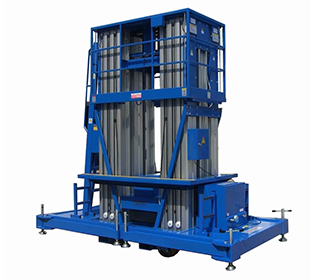

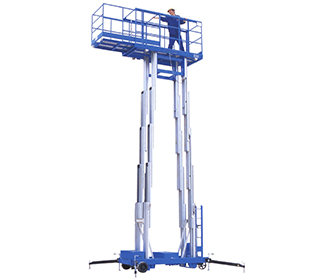

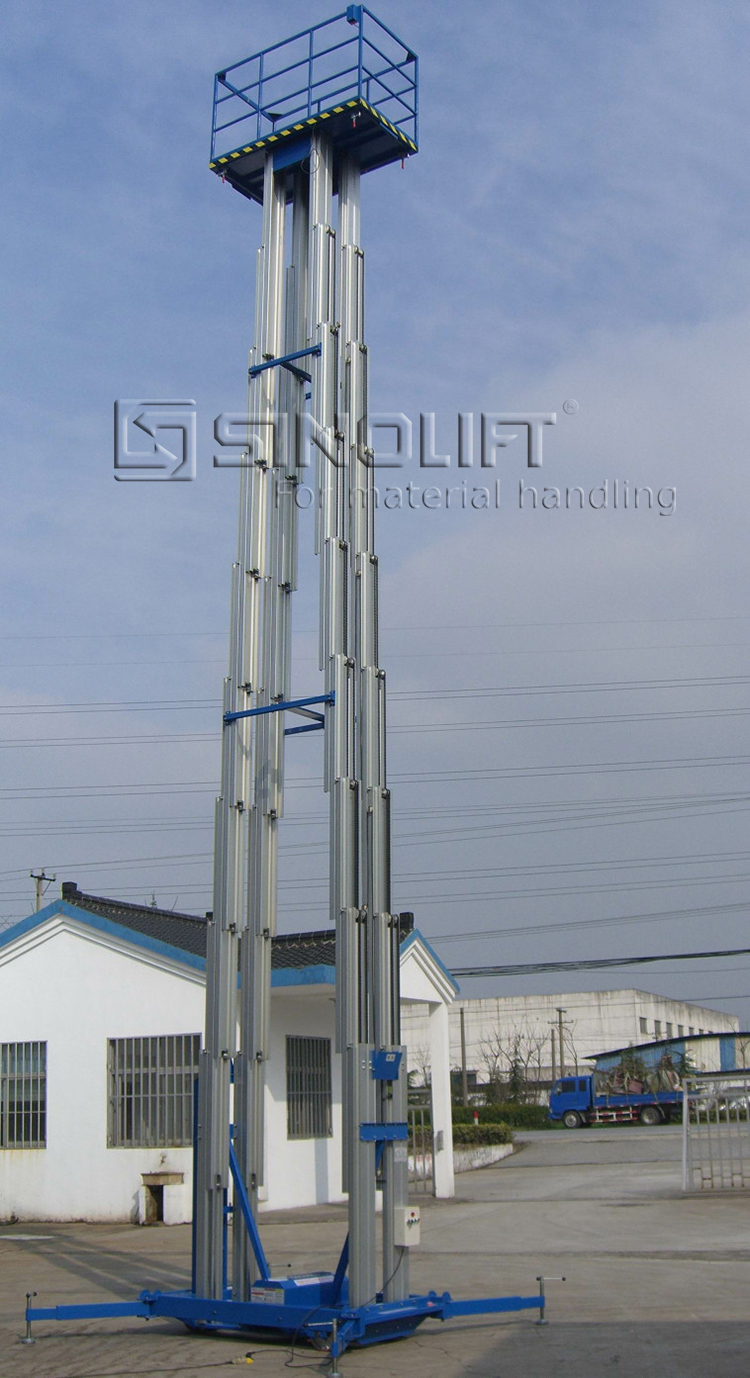

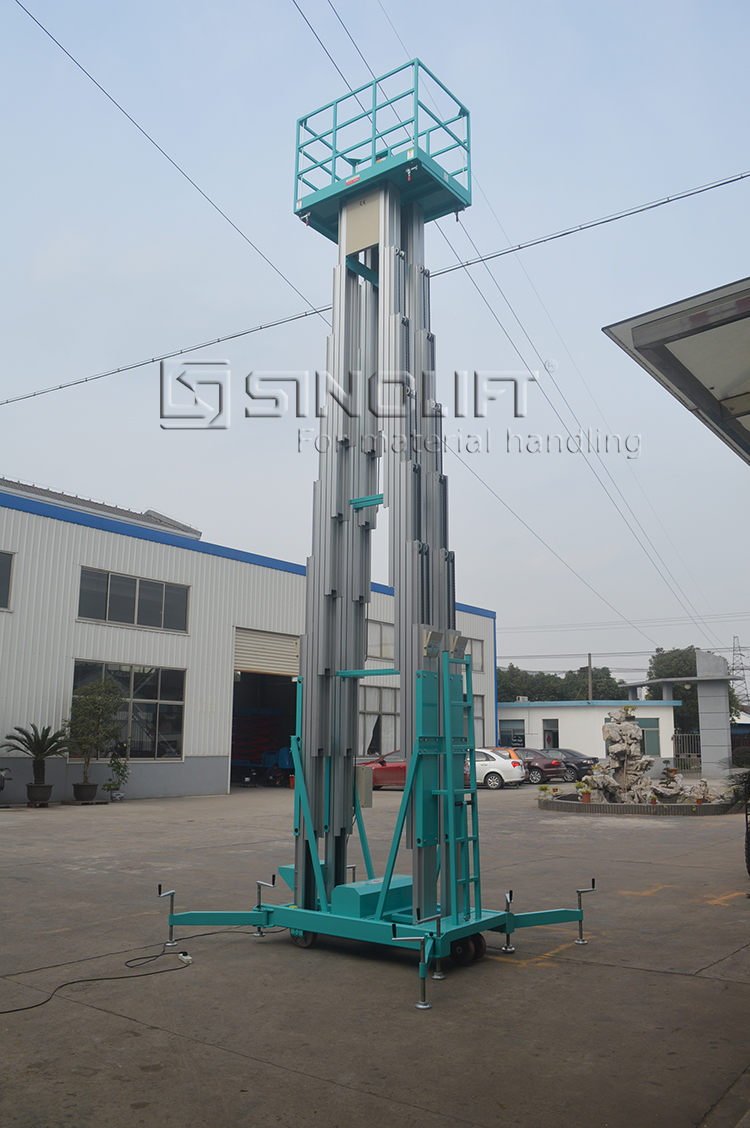

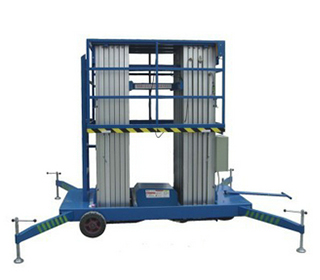

Name：GTWY-4000 Mobile Four Mast Lifter
Model：GTWY-4000
Product Introduction：AMWP series continues to lead the industry in maneuverability and it features the most rigid mast to date. Our heavy-duty lifting chains have a safety factor of greater than 10:1. The chains are used throughout the entire mast system for strength, reliability and maintenance. We are offering a wide range of selection in different heights and options. All our lifting machines are designed and met the highest international safety standard, ANSI A-92.3 1990, CSA, CE.

Features:

1. Four masts are descended or ascended synchronously with excellent stability;
2. With guardrail similar to that of double mast aerial work platform;
3. Platform can be designed to horizontal extension or rotating or both for working by stepping over ground obstacle;
4. Electric driving unit is equipped for moving;
5. Rubber roller can be fitted on driving roller according to customer requirements;
6. Power Supply: Single phase AC;
7. Platform can be extended horizontally (optional);
8. Extended size (optional): 1000、1300、1600mm;
9. Traveling Method: powered propeller as standard; manual traveling as option;
10. Rotating platform as option;
11. Rotating angle range (optional): 180°, 350°, any angle.

Model		GTWY10-4000	GTWY12-4000	GTWY14-4000A	GTWY14-4000B	GTWY15-4000	GTWY16-4000
Max Platform Height	m	10	12	14	14	15	16
Max Working Height	m	11.7	13.7	15.7	15.7	16.7	17.7
Loading Capacity	kg	300	300	300	300	200	200
Platform Size	mm	1400×800	1400×800	1400×800	1400×800	1400×800	1400×800
Covering Size	mm	2400×2300	2400×2300	2450×2400	2500×2400	2600×2500	3100×3000
Power Supply	v	AC220	AC220	AC220	AC220	AC220	AC220
Lifting Power	KW	2.2	2.2	2.2	2.2	2.2	2.2
Driving Power(Option)	KW	0.75	0.75	0.75	0.75	0.75	0.75
Dimension	mm	1700×1100×2050	1700×1100×2320	1800×1100×2520	1900×1100×2320	2000×1200×2680	2250×1300×2850
Weight	kg	1100	1150	1200	1200	1390	1420
