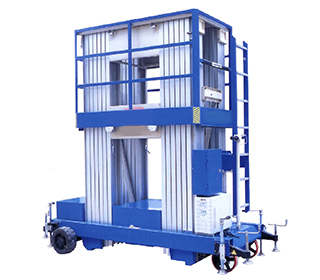

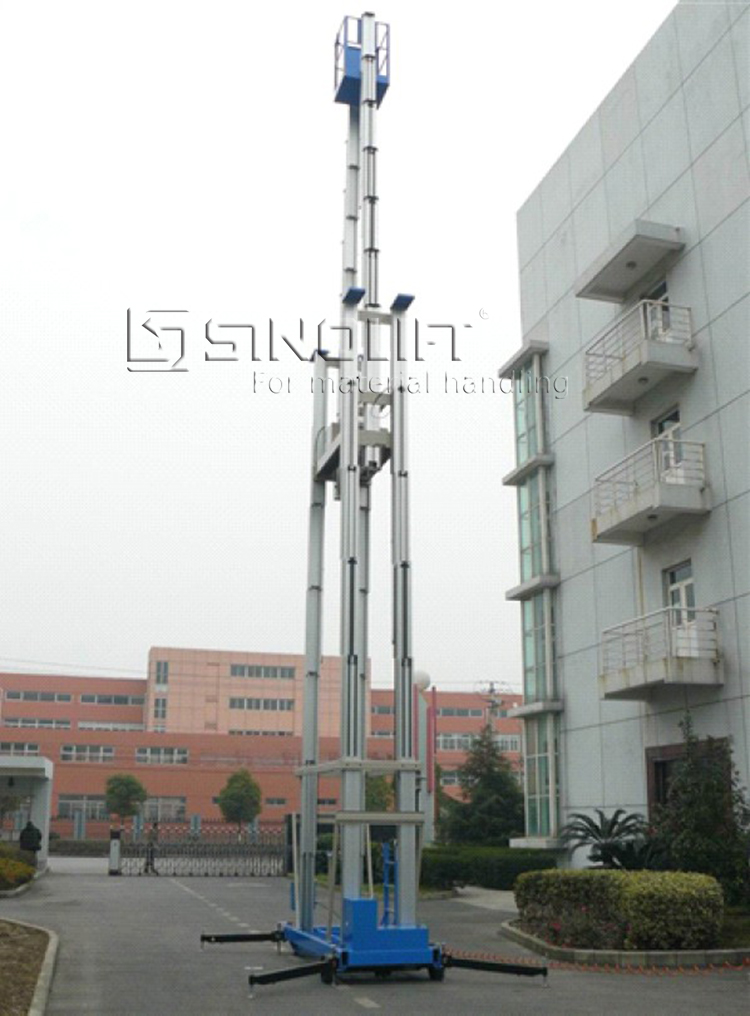

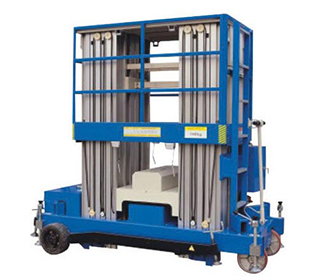

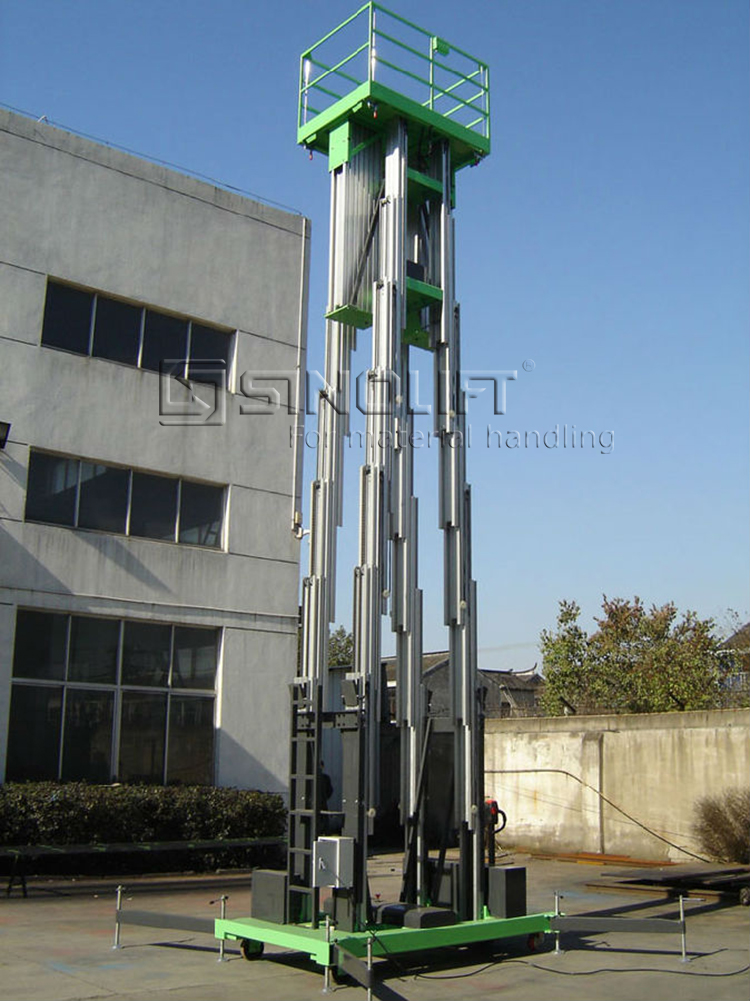

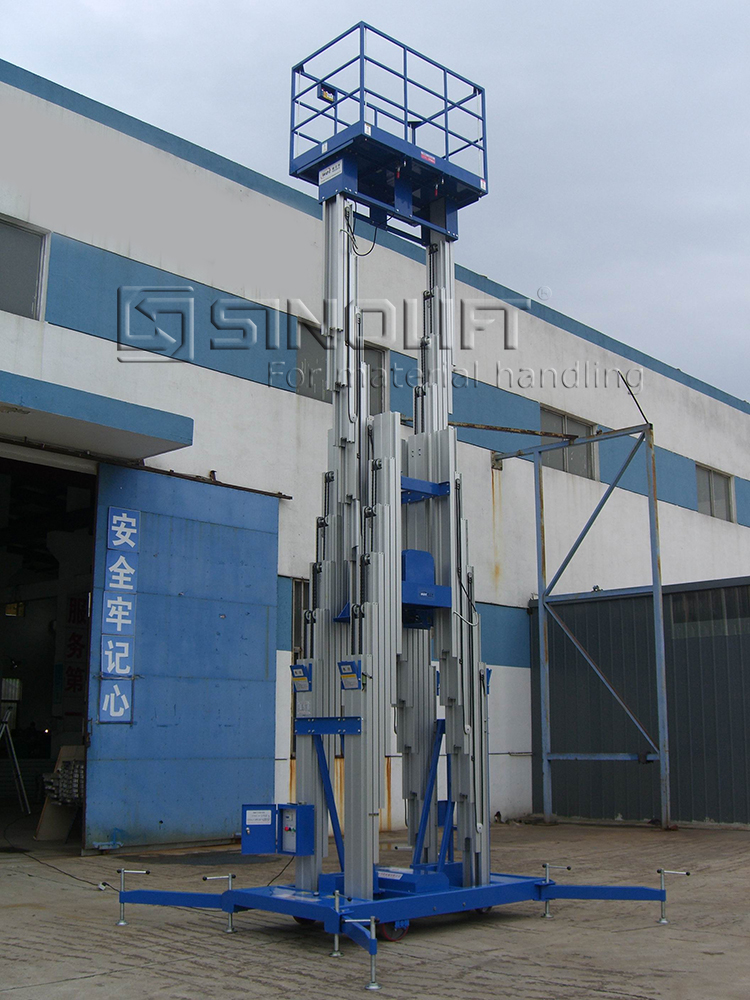

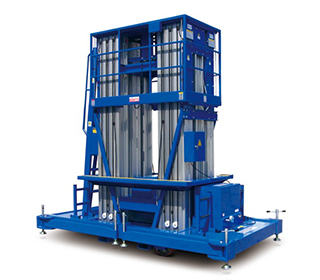

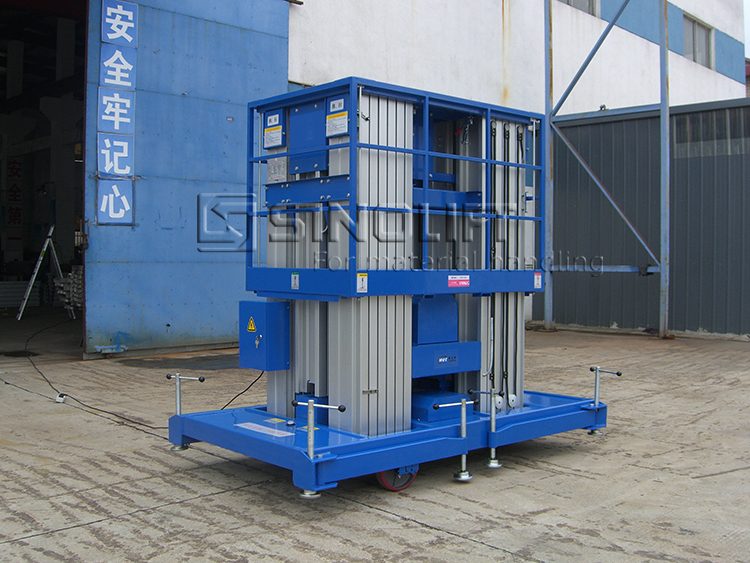

Name:GTWY-4200 Mobile Multi-mast Lifter
Model:GTWY-4200
Product Introduction:Two sets of independent upper and lower lifting structures. Multi groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure. The two structures can be shifted automatically with better operation and stability.

Features:

1. Two sets of independent upper and lower lifting structures;
2. Multi groups of aluminum alloy mast combination for lower lifting structure and double mast combination for upper lifting structure;
3. The two structures can be shifted automatically with better operation and stability;
4. The guardrail can be entirely hung on the platform without occupying too much room, offering easy in passing through lower passage;
5. Its overall dimension is the smallest among similar products and it can be used both outside and indoor;
6. Electric driving unit is equipped for moving;
7. Power Supply: Single phase AC;
8. Traveling Method: powered propeller as standard; manual traveling as option;
9. Available accessories: uninterruptible power supply;
10. Conforms to CE, one of National Key New Products 2001.

Model  GTWY16-4200 GTWY18-4200 GTWY19-4200
Max Platform Height m 16 18 19
Max Working Height m 17.7 19.7 20.7
Loading Capacity kg 150 150 150
Platform Size mm 1450×900 1450×900 1550×900
Covering Size mm 3100×3000 3100×3000 3450×3200
Power Supply v AC220 AC220 AC220
Lifting Power KW 2.2&1.1 2.2&1.1 2.2&1.1
Driving Power(Option) KW 0.75 0.75 0.75
Dimension mm 2250×1300×2180 2250×1300×2420 2500×1400×2520
Weight kg 1500 1600 1670
