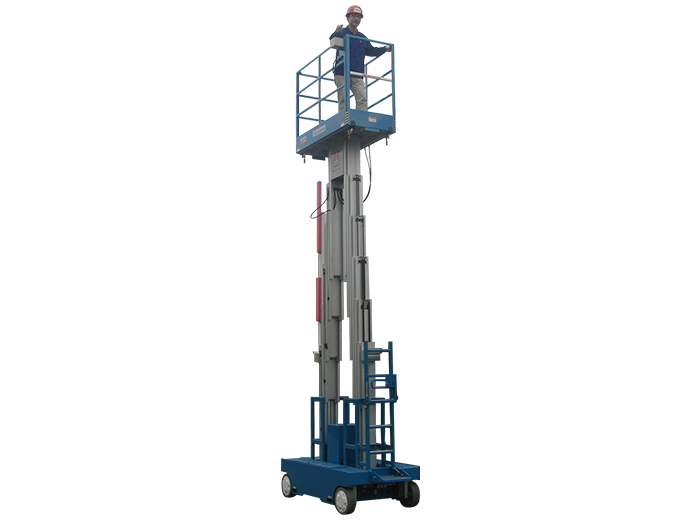

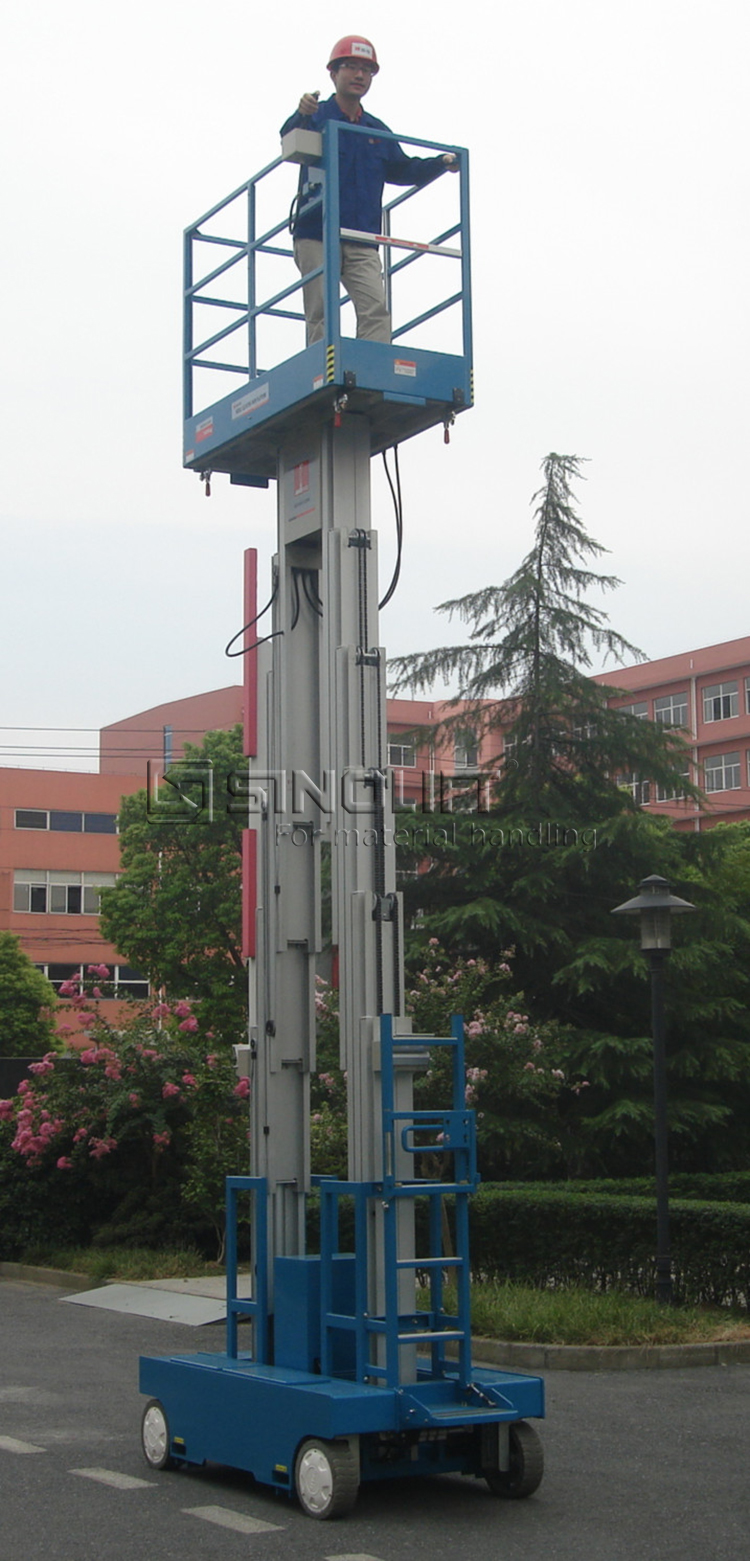

AMWP 2200 Self-propelled aluminium double column aerial work platform

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：AMWP 2200 Self-propelled aluminium double column aerial work platform
Model：AMWP 2200
Product Introduction：Suitable for two persons to work upraised Max. working height: 8m, 10m Power supply: DC24v with maintenance-free battery Drivable at full height Pothole Protector Tilt alarm Multi-oriented GP Real-time Monitoring & PLC Active Steering Rear bridge driver 20% Gradeability Start and stop buffering

· Suitable for two persons to work upraised

· Max. working height: 8m, 10m

· Power supply: DC24v with maintenance-free battery

· Drivable at full height

· Pothole Protector

· Tilt alarm

· Multi-oriented GP

· Real-time Monitoring & PLC

· Active Steering

· Rear bridge driver

· 20% Gradeability

· Start and stop buffering

Model Number		AMWP8-2200	AMWP10-2200
Lift Rated Capacity	kg	300	300
Max Platform Height	mm	8000	10000
Max Machine Height	mm	9700	11700
Platform Size	mm	1380x700	1380x700
Number of Person Allowed	/	2	2
Max Drive Speed (platform stowed)	km/h	1.7	1.7
Max Drive Speed (platform elevated)	km/h	0.2	0.2
Max Climb Capacity	%	15	15
Driver Motor	V	DC24	DC24
Overall Length	mm	1800	1800
Overall Width	mm	970	970
Overall Height	mm	1960	2360
Overall Weight	kg	1400	1400
