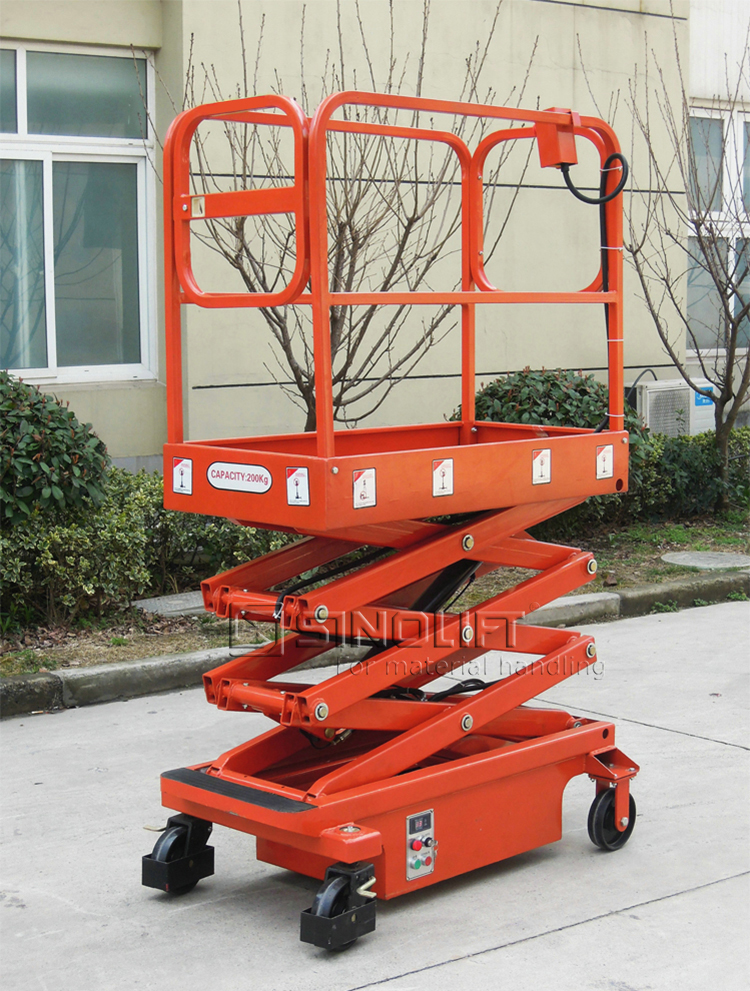

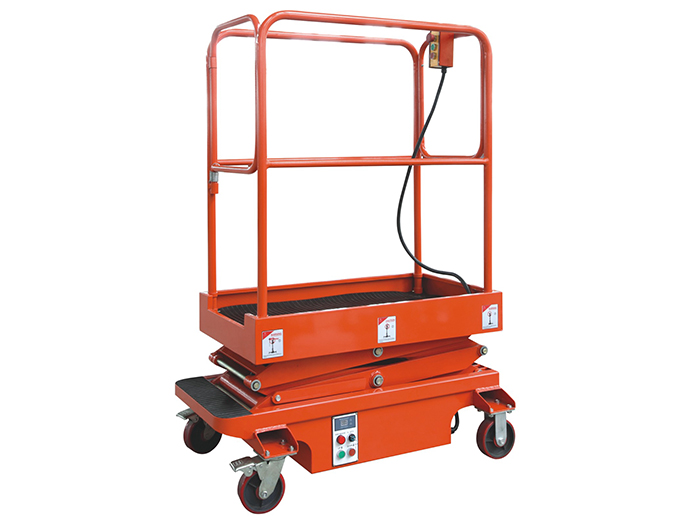

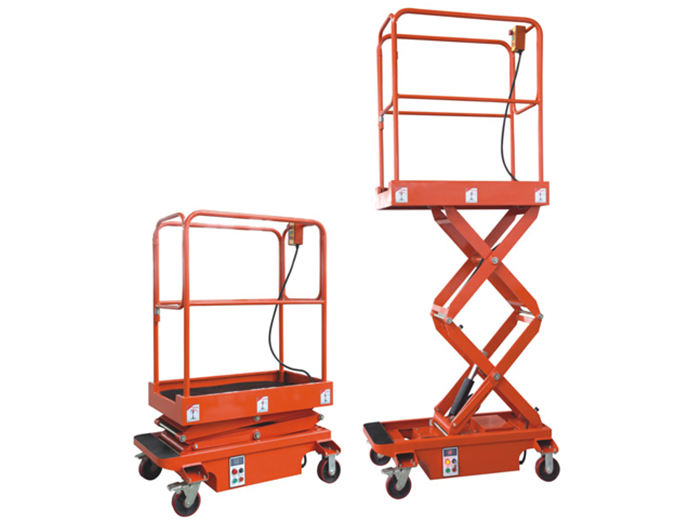

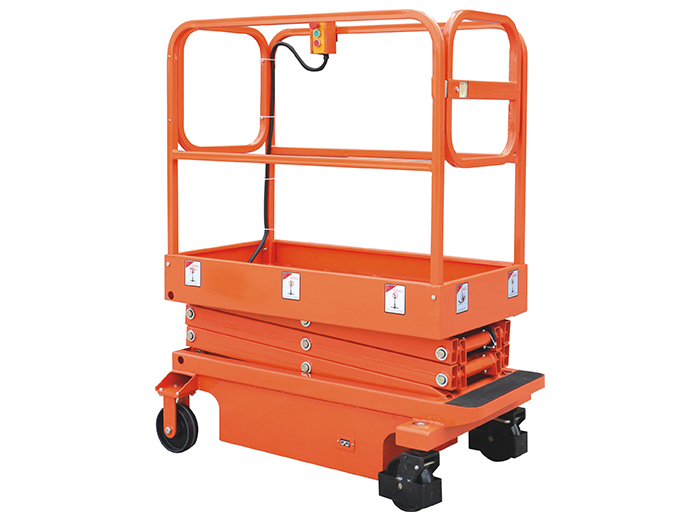

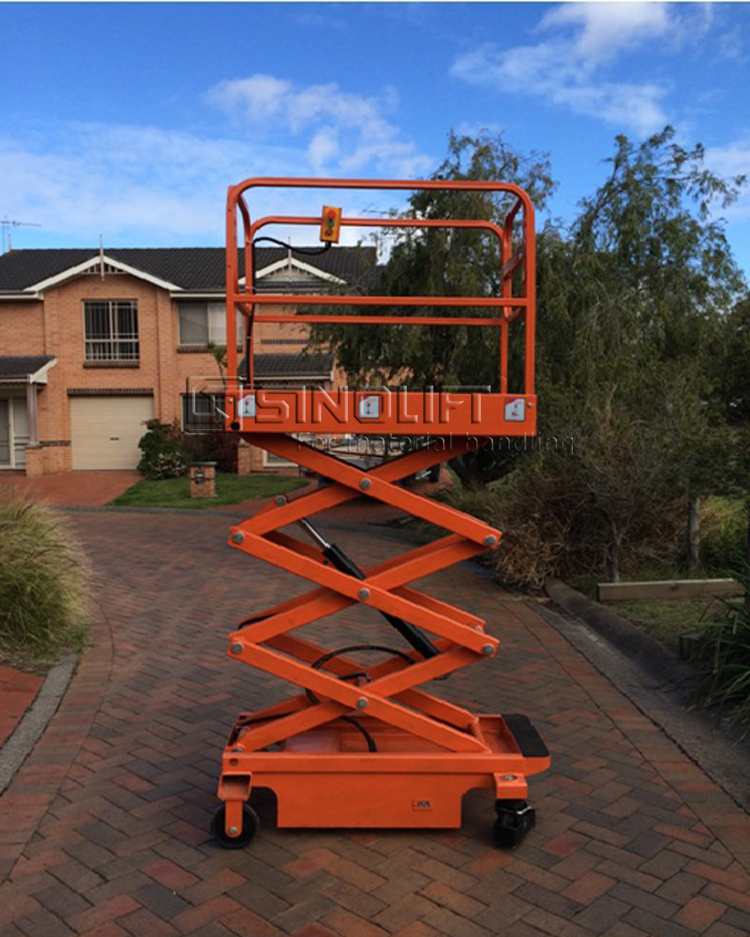

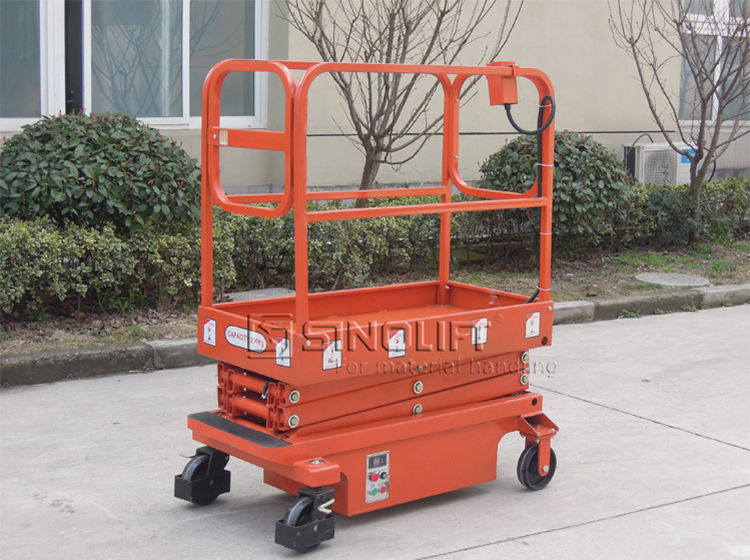

Name：SJY mini mobile scissors aerial work platform
Model：SJY mini
Product Introduction：The Manually-propelled Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 4 meters. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools. * Free-standing operation, with rechargeable 12V battery power. * Minimum 200 operating cycles at rated loading. * Quick and smooth ascent or descent. * Ergonomic platform with non-slip floor and secure gating. * Dual control points including emergency stops. Audible descend and tilt alerts. * Spiral cable connection to the platform control unit. Emergency down valve * Non-marking wheels, all 4 with brakes including 2 for steering. * Prominent decals promoting responsible use. Forklift pockets and tool box

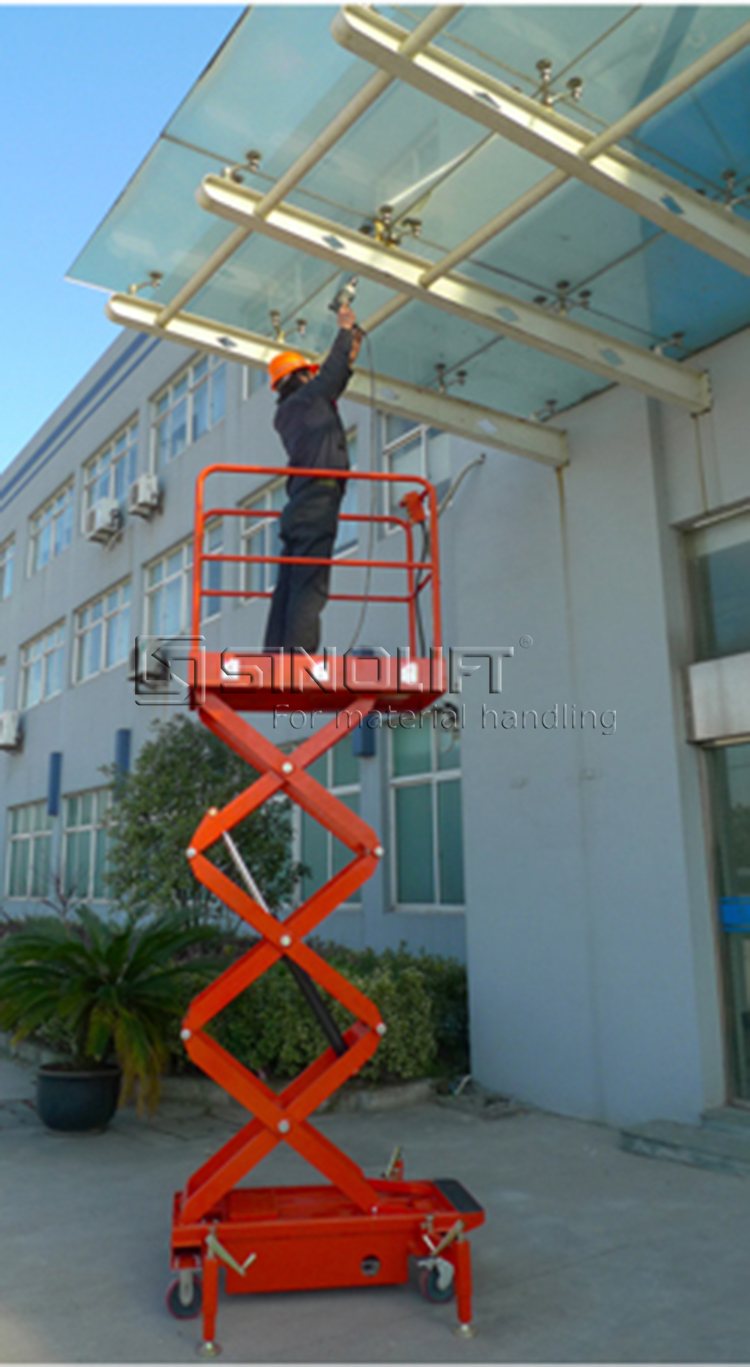

The Manually-propelled Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 4 meters. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.
* Free-standing operation, with rechargeable 12V battery power.
* Minimum 200 operating cycles at rated loading.
* Quick and smooth ascent or descent.
* Ergonomic platform with non-slip floor and secure gating.

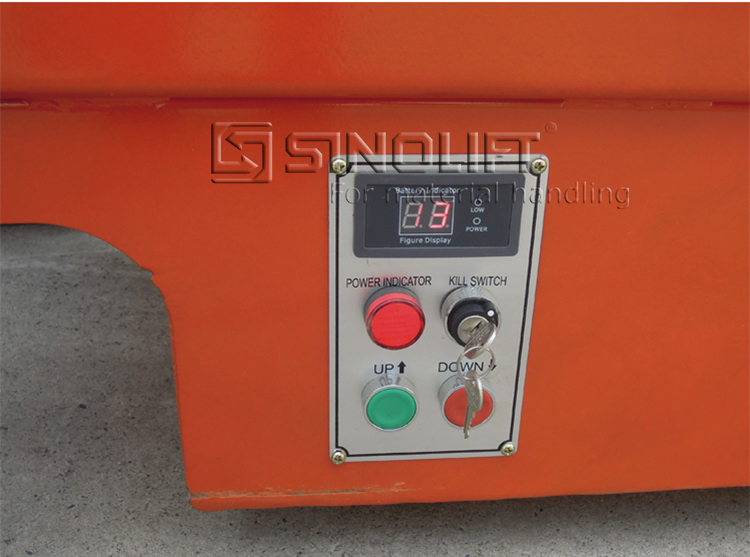

* Dual control points including emergency stops. Audible descend and tilt alerts.

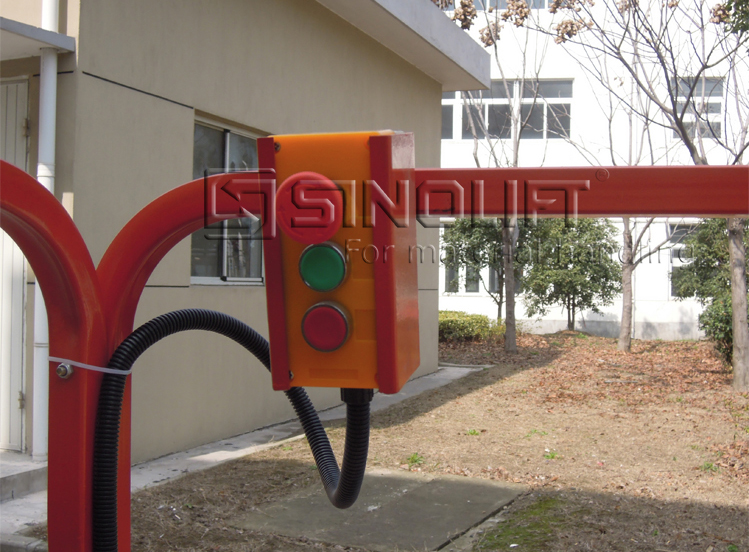

* Spiral cable connection to the platform control unit. Emergency down valve

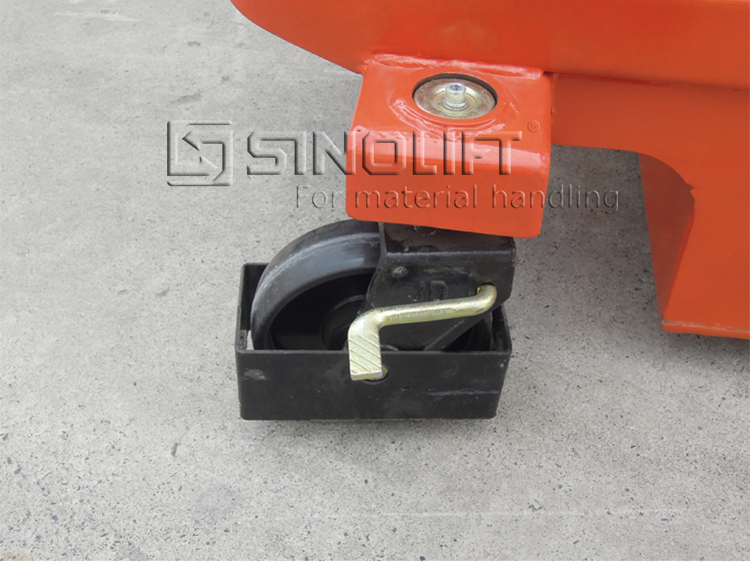

* Non-marking wheels, all 4 with brakes including 2 for steering.
* Prominent decals promoting responsible use. Forklift pockets and tool box

Model Number		SJY0.3-3	SJY0.3-3.9	SJY0.3-4.8
Lift Rated Capacity	kg	300	300	300
Max. Platform Height	mm	3000	3900	4800
Min. Platform Height	mm	630	700	830
Platform Size	mm	1170x600	1170x600	1170x600
Ascent/Descent Time	s	33/30	33/30	33/30
Lifting Motor	v/kw	12/0.8	12/0.8	12/0.8
Charger	V/A	12/10	12/10	12/10
Overall Length	mm	1300	1300	1300
Overall Width	mm	740	740	740
Overall Height	mm	1650	1750	1880
Overall Net Weight	kg	360	420	475
Battery	V/A	12/60	12/60	12/60
