Home >> Products >> CTY15000 hydraulic manual stacker

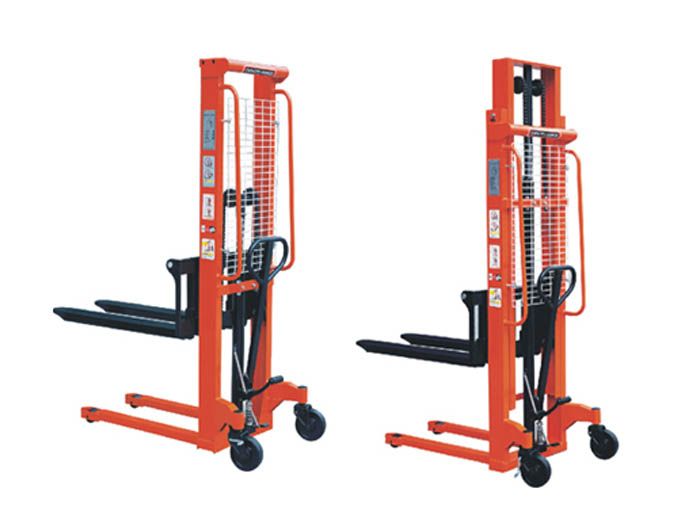

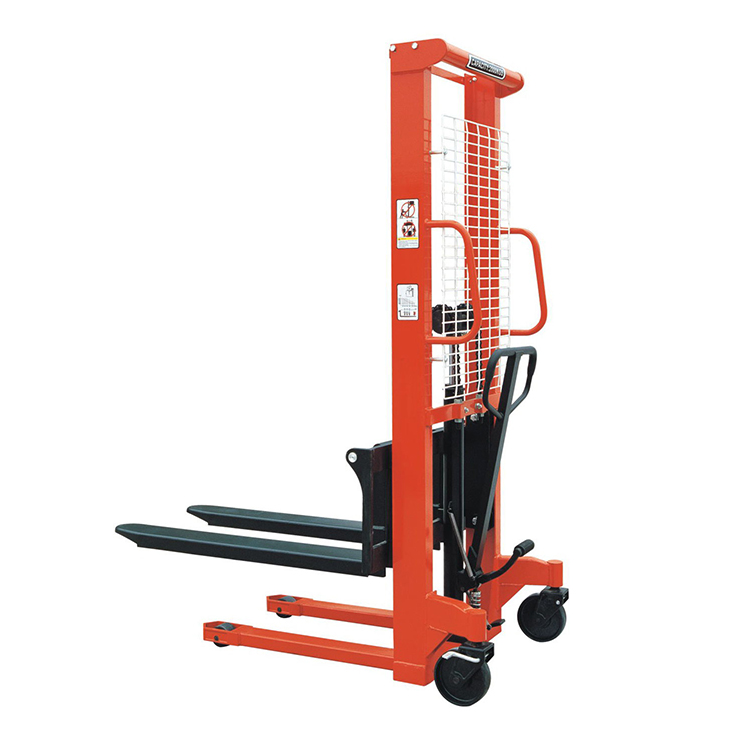

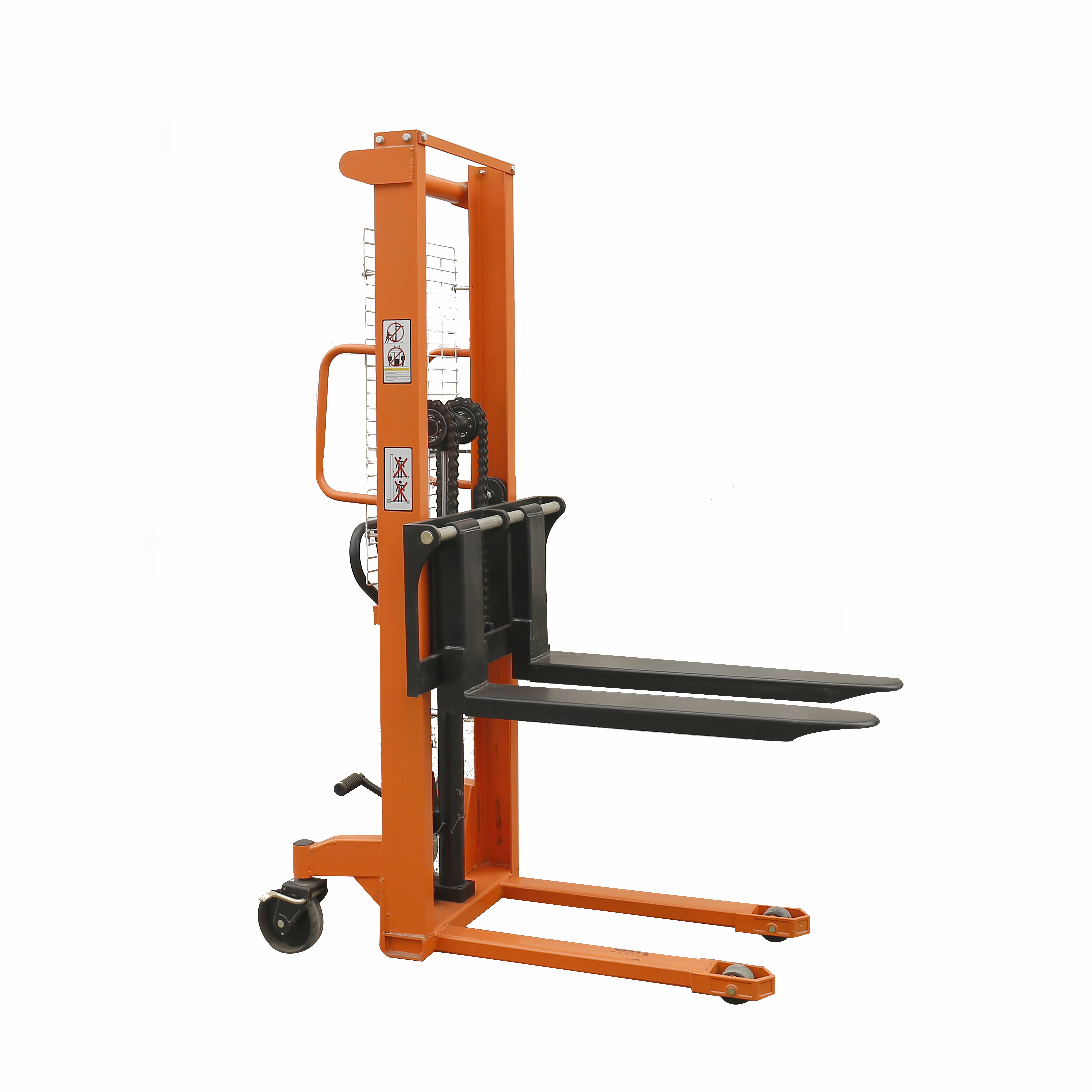

Name：CTY15000 hydraulic manual stacker
Model：CTY15000
Product Introduction：CTY15000 hydraulic manual stacker

1.Robust Steel profile construction.
2.An economical lift to handle tasks from transporting dies and moulds skids and pallets.
3.Sturdy and compact enough to fit through standard doors and to operate in congested areas.
4.Precision engineered for smooth performance and exceptional durability.
5.Lifting function operated by foot and hand controls.

Model		CTY500-16	CTY1000-16	CTY1500-16	CTY2000-16	CTY1000-25	CTY1000-30
Rated Capacity	kg	500	1000	1500	2000	1000	1000
Load Center	mm	400	400	400	400	400	400
Lifting Height	mm	85-1600	90-1600	90-1600	90-1500	95-2500	95-3000
Fork Length	mm	800	900	900	900	900	900
Fork Width	mm	220-750	220-950	220-950	220-950	220-900	220-900
Min. Turning Radius	mm	1110	1250	1250	1250	1250	1250
Overall Length	mm	1280	1380	1380	1380	1340	1340
Overall Width	mm	800	1000	1000	1000	950	950
Overall Height	mm	1980	2100	2100	2100	1810	2060
Net Weight	kg	155	250	260	285	355	370
