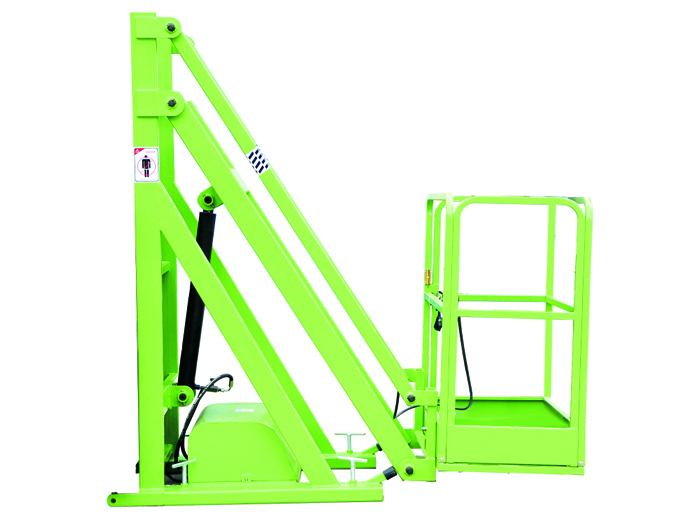

Name:QB Fork Load Aerial Work Plat
Model:QB
Product Introduction:Forklift Access and Maintenance Platform has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of access and maintenance requirements within industry and commerce.  A sound long term investment! let your forklift to reach new heights. Fully welded construction for tough high-access tasks. The cage is supplied with a fixed line harness attachment point, and comes with a quality powder coated finish. The platform has a maximum load capacity of up to 200 kg and is recommended for use with one person and tools. Designed for use with rider operated counterbalanced and reach fork lift trucks, the SINOLIFT Forklift Access and Maintenance Platform is operated by firstly securing the unit on the forks of the forklift and then lifting to the desired height.

Forklift Access and Maintenance Platform has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of access and maintenance requirements within industry and commerce.  A sound long term investment!

let your forklift to reach new heights. Fully welded construction for tough high-access tasks. The cage is supplied with a fixed line harness attachment point, and comes with a quality powder coated finish.

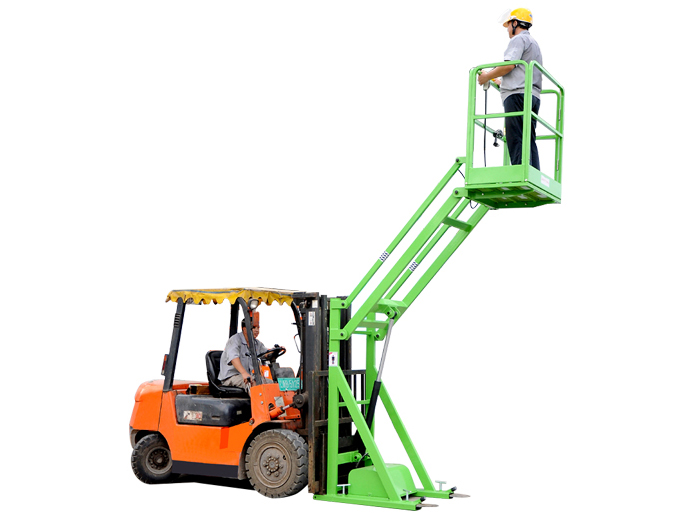

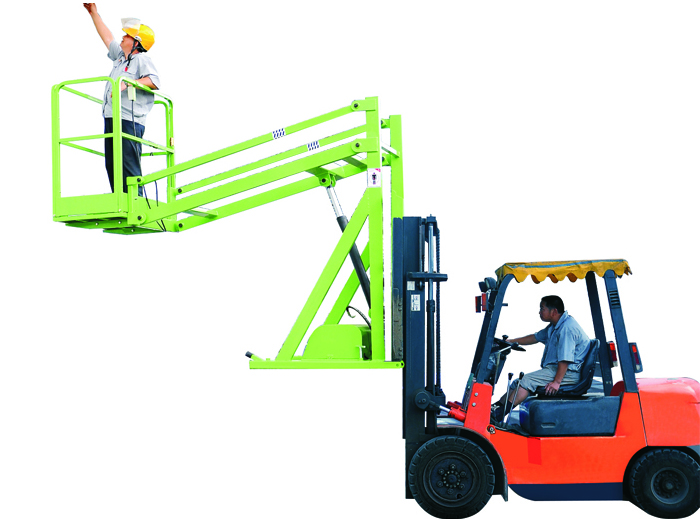

The platform has a maximum load capacity of up to 200 kg and is recommended for use with one person and tools. Designed for use with rider operated counterbalanced and reach fork lift trucks, the SINOLIFT Forklift Access and Maintenance Platform is operated by firstly securing the unit on the forks of the forklift and then lifting to the desired height.
Model Number QB20 QB28

Rated Capacity
kg 200 280

Max Platform Height
mm 3000 3200

Platform Size
mm 600x1000 600x1000

Power Supply
v DC12 DC12

Battery
v/Ah 12/65 12/120

Integrated Charger
v/A 12/15 12/20

Overall Length
mm 1940 2140

Overall Width
mm 1000 1000

Overall Height
mm 2000 2000

Overall Weight
mm 378 426
