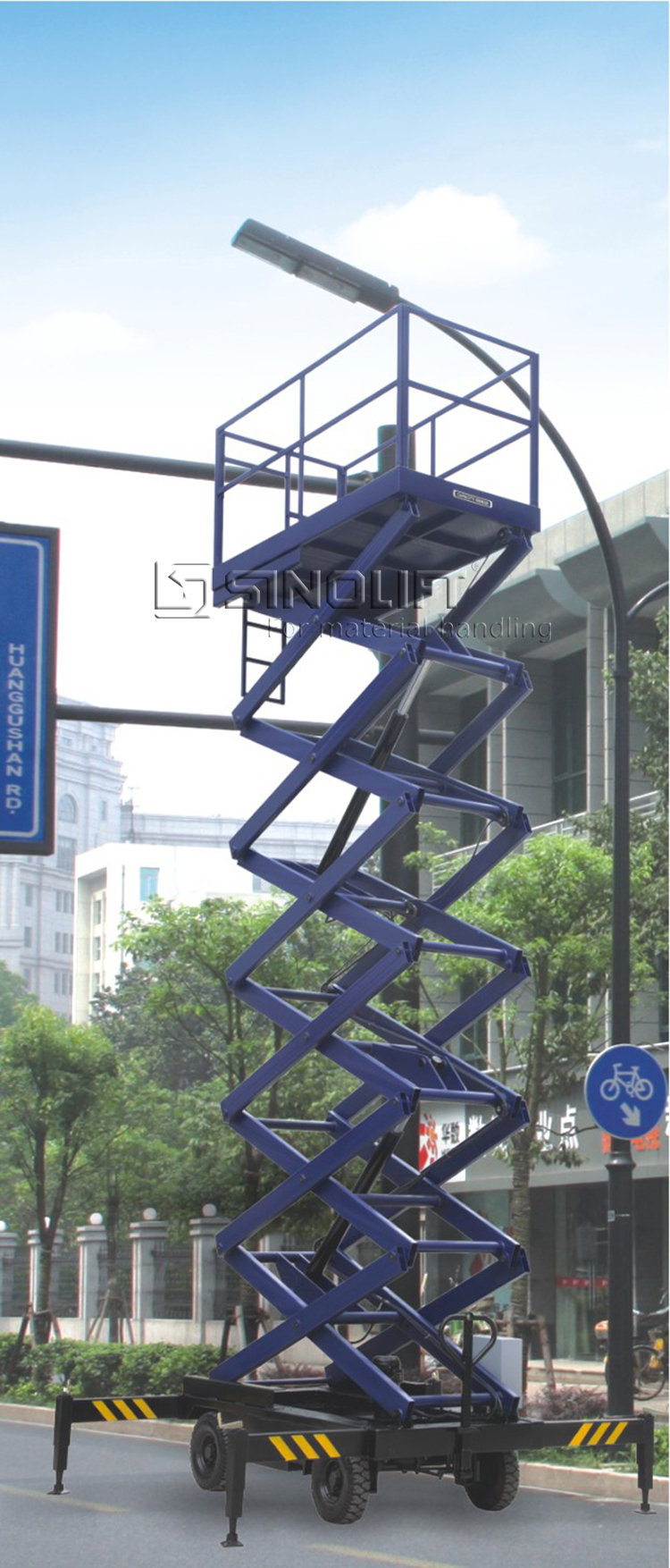

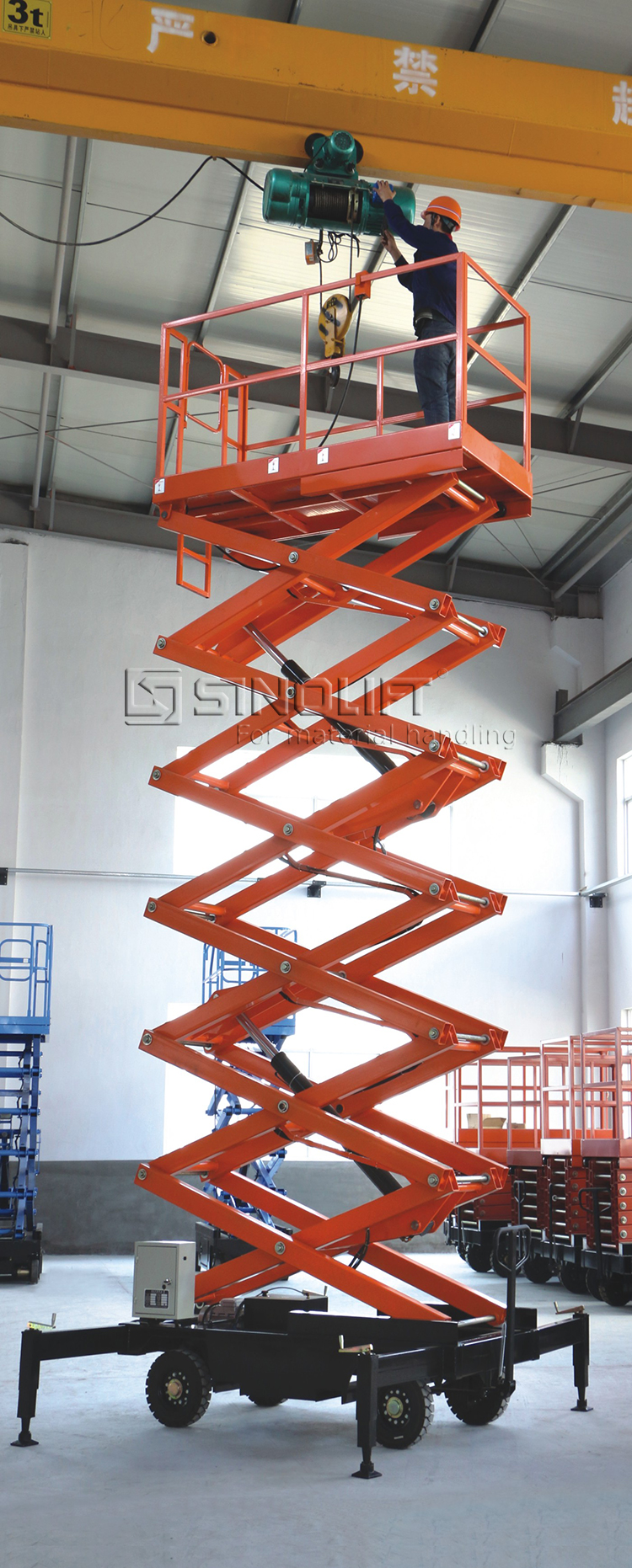

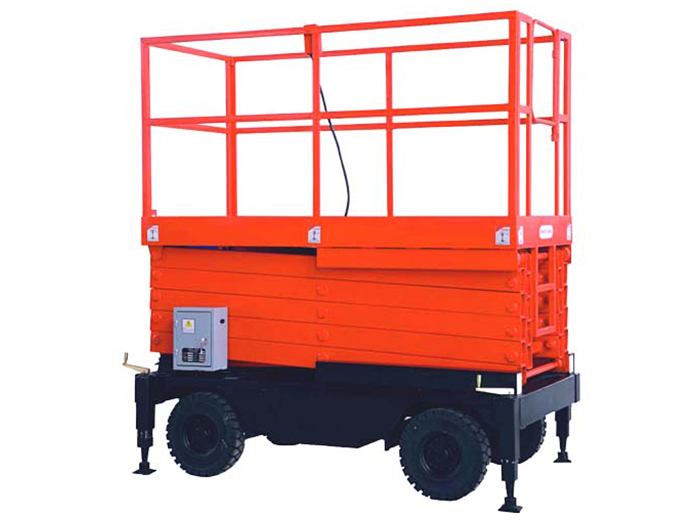

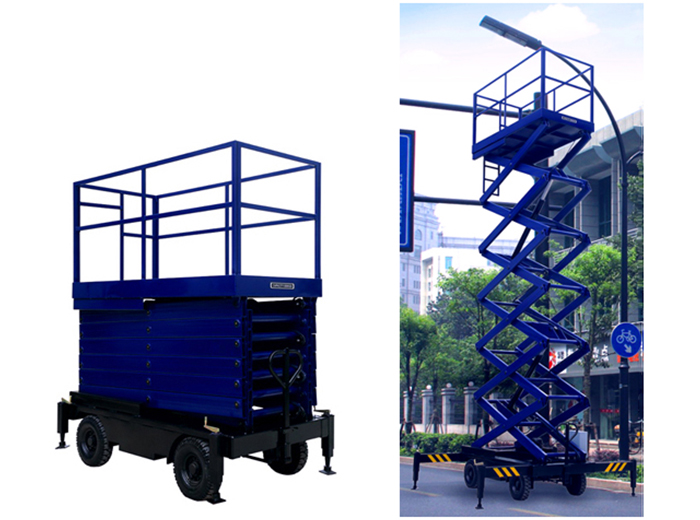

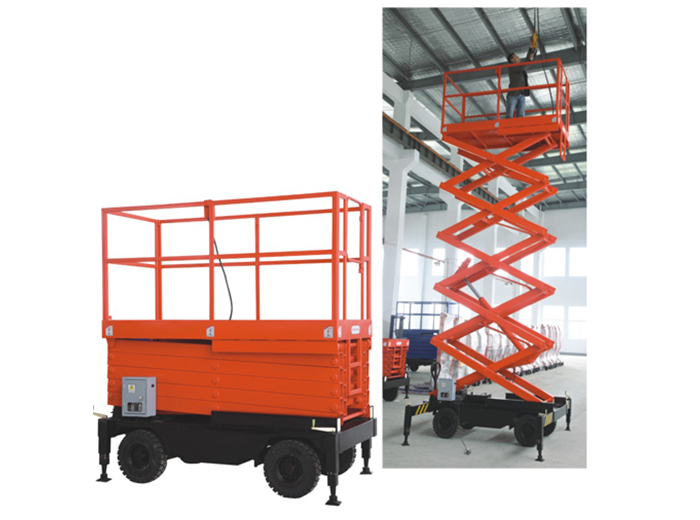

Name:SJY-I mobile scissors areial work platform
Model:SJY-I
Product Introduction:SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground. 1. DC motor and driving systems. 2. With safety-falling equipment. 3. Big solid tire.

SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground.
1. DC motor and driving systems.
2. With safety-falling equipment.
3. Big solid tire.
Model  SJY0.5-6(I) SJY0.5-7.5(I) SJY0.5-9(I) SJY0.5-11(I)
Max. Platform Height mm 6000 7500 9000 11000
Min. Platform Height mm 1080 1200 1360 1480
Platform Size mm 2200×1100×1100 2200×1100×1100 2200×1100×1100 2200×1100×1100
Lift Rated Capacity kg 500
Safety Working Load kg 250
The Developed Dimension Of Legs mm 2700×2200
Elevating Time s 77
Electromotor Power kw 2.2 2.2 2.2 3
Voltage v 220 220 220 380
Overall Length mm 2270 2270 2270 2270
Overall Width mm 1300 1300 1300 1300
Overall Height mm 1180 1300 1460 1580
Overall Net Weight kg 950 1350 1600 1800
