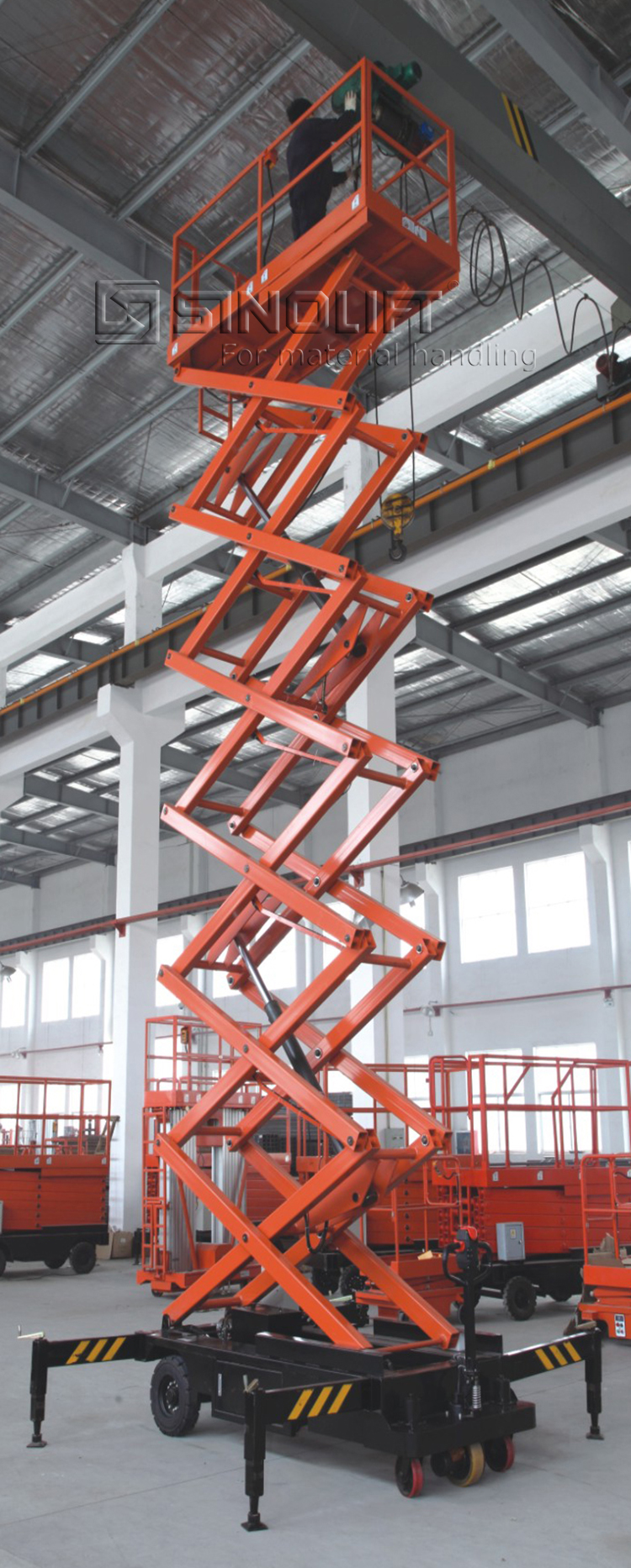

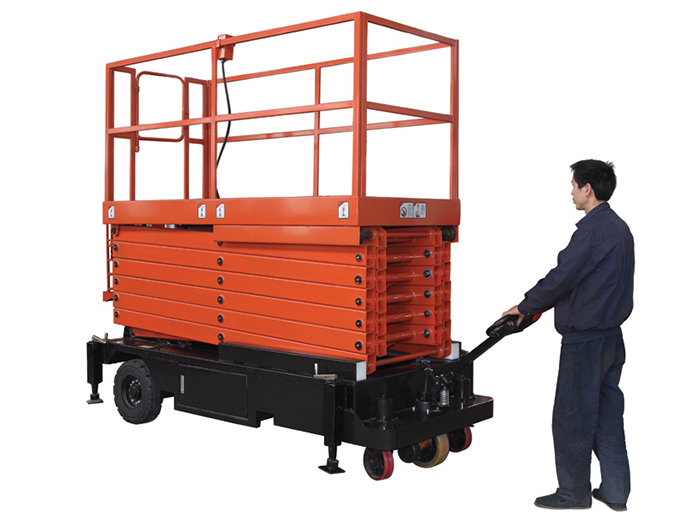

Name:SJY-II Mobile traction scissors aerial work platform
Model:SJY-II
Product Introduction:Mobile traction scissor lifting platforms take advantage of external force to make lifting equipment, with three-phase power moving fast and convenient, good for long-distance operations. As one convenient lifting equipment, mobile traction scissor lifts have electric up-down switch and auto up-down switch, the worker on the ground or on the table can control the up and down of the table. Lift table is equipped with hydraulic pump used for no power circumstances, the cylinder of this table has the unloading control value, when the hydraulic system is out of work

Mobile traction scissor lifting platforms take advantage of external force to make lifting equipment, with three-phase power moving fast and convenient, good for long-distance operations.

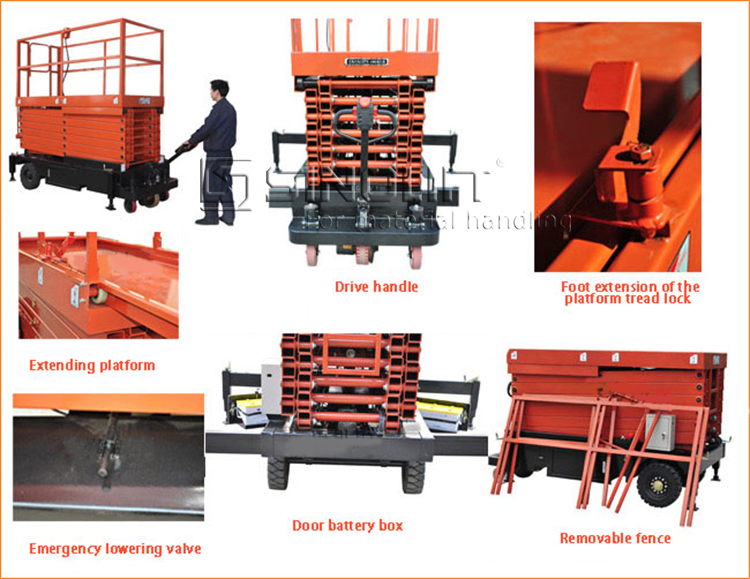

As one convenient lifting equipment, mobile traction scissor lifts have electric up-down switch and auto up-down switch, the worker on the ground or on the table can control the up and down of the table.

Lift table is equipped with hydraulic pump used for no power circumstances, the cylinder of this table has the unloading control value, when the hydraulic system is out of work


Specifications SJY0.3-7.5 (II) SJY0.3-9 (II)
Max.Platform Height mm 7500 9000
Min.Platform Height mm 1300 1550
Platform Size (LxWxH) mm 2180x1000x1100 2180x1000x1100
Platform Extend Length mm 700 900
Lift Rated Capacity kg 300 300
Platform Extend Capacity kg 100 100
Support leg Spread Size mm 2700x2200 2700x2200
Elevating Time s 62 62
Lowering Time s // //
Lift Motor V/kw 1.5 1.5
Charger V/A // //
Votagle V 220 220
Overall Length mm 2270 2270
Overall Width mm 1250 1250
Overall Height mm 1300 1550
Service Weight kg 1200 1350
