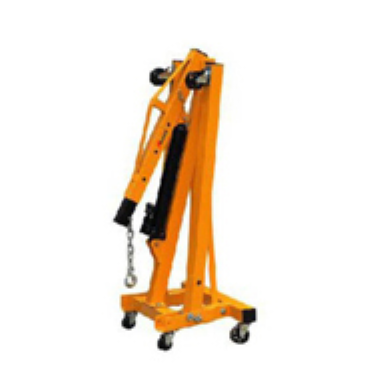

Name:SB shop crane
Model:SB500/SB1000/SB2000/SD2000
Product Introduction:Shop Crane  SB/SD series  Four hook position.  Smooth, quite operation.  Hard chrome rams and pump piston.  Full swivel hook with safety clip fitted as standard. Controlled lowing with positive stop.  Overload valve.  Top of stroke by-pass prevents hydraulics locking at full height if overpumped.  Jacks from folded to upright position.

Shop Crane  SB/SD series

▲ Four hook position.

▲ Smooth, quite operation.

▲ Hard chrome rams and pump piston.

▲ Full swivel hook with safety clip fitted as standard.

▲ Controlled lowing with positive stop.

▲ Overload valve.

▲ Top of stroke by-pass prevents hydraulics locking at full height if overpumped.

▲ Jacks from folded to upright position.

Model SB500 SB1000 SB2000 SD2000
Fodable Yes Yes Yes No
Capacity (kg) 500 1000 2000 2000
Capacity at Position P1  500 1000 2000 2000
P2  400 750 1500 1500
P3  250 500 1000 1000
P4  150 250 500 500
 Net Weight (kg) 75 96 95 113

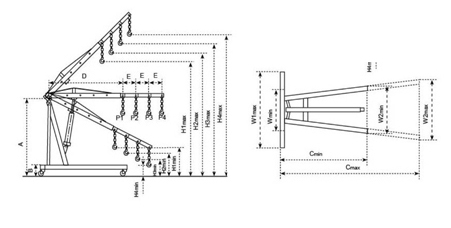

Dimensions 1403 1650 1403 1350
200 170 200 185
Cmin(Cmax)  1710 1680 1710 1620(2320)
D 900 1160 900 1270
180 95 180 225
W1min(W1max) 810 500 810 945(1340)
W2min(W2max) 1015 1070 1015 800(960)
H1min(H1max) 345(1820) 550(1785) 345(1820) 185(1945)
H2min(H2max) -1960 255(1805) -1960 285(2100)
H3min(H3max) -2100 180(1825) -2100 385(2260)
H4min(H4max) -2240 180(1845) -2240 485(2410)
