Home >> Products >> CPD10 (AB) Narrow Aisle Electric Forklift

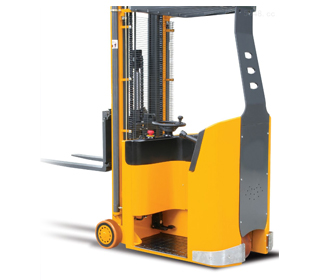

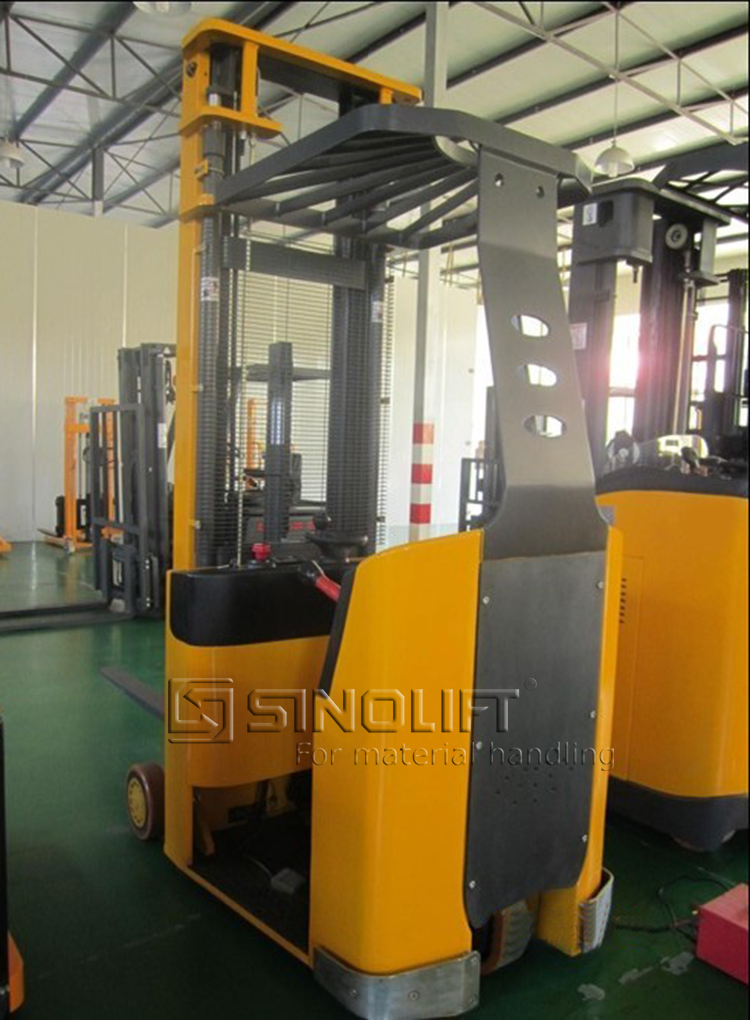

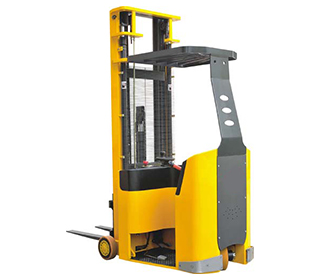

Name：CPD10 (AB) Narrow Aisle Electric Forklift
Model：CPD10A, CPD10B
Product Introduction：Advanced AC control system with MOSFET delivers smooth driving speed control for precise.Small turning radius,easy and smart to operate.Lean-on compartment offer comfortable and safe driving position,reducing operator’s fatigue.

Features:

1. Advanced AC control system with MOSFET delivers smooth driving speed control for precise.

2. Small turning radius,easy and smart to operate.

3. Lean-on compartment offer comfortable and safe driving position,reducing operator’s fatigue.

4. With regenerative braking system for driving and electronic braking system for parking.

5. Low battery Protection setting prolongs service life in reversing mode and reduce the brake pedal using and reduce operatot efforts.

6. With deadman switch on floor to cut off the power when operator leave the from cab.

7. Lifting cylinders on the both of mast provides best visibility.

8. The optional of Full Hydraulic Steering System and Electric Power Steering(EPS) offers follow advantages:

Steering wheel automatic reset.

Travelling speed automatically slow down when steering.

Show the turning angles on the display.

Remark:

· CPD10BZ with full free lift mast.

· CPD10AC/ CPD10BC with side shifter.

Model		CPD10A	CPD10AC	CPD10B	CPD10BC	CPD10BZ
Power		electric	electric	electric	electric	electric
Operator type		standing	standing	standing	standing	standing
Capacity/rated load	Q(kg)	1000	1000	1000	1000	1000
Load centre distance	c(mm)	600	600	500	500	500
Load distance, centre of drive axle to fork	x(mm)	140	205	180	210	186
Wheelbase	y(mm)	975	1037	1015	1015	1015
Service weight(with battery)	kg	2050	20752	2150	2175	2170
Axle loading, laden front/rear	kg	2580/500	2580/500	2700/500	2700/500	2700/500
Axle loading, unladen front/rear	kg	800/1250	800/1250	950/1250	950/1250	950/1250
Tyres type		polyurethane	polyurethane	polyurethane	polyurethane	polyurethane
Tyre size, front	mm	250x80	250x80	250x80	250x80	250x80
Tyre size rear	mm	280x100	280x100	280x100	280x100	280x100
Variation of side shifter, left/right	mm	0	100/100	0	100/100	0
Tread,front	b10(mm)	770	770	770	770	770
Height,mast lowered	h1(mm)	2155	2155	2255	2255	2255
Free lift	h2(mm)	1600	1600	/	/	1600
Lift height	h3(mm)	3000	3000	5000	5000	5000
Height, mast extended	h4(mm)	3565	3565	5600	5600	5600
Height of overhead guard(cabin)	h6(mm)	2090	2090	2090	2090	2090
Seat height/stand height	h7(mm)	75	75	75	75	75
Height of tiller in drive position min./max.	h14(mm)	1000	1000	1000	1000	1000
Overall length	l1(mm)	2210	2270	2250	2290	2290
Overall width	b1(mm)	850	850	850	850	850
Fork dimensions	s/e/l(mm)	36/100/950	36/100/950	36/100/950	36/100/950	36/100/950
Fork carriage DIN 15173,class/type A,B		II/A	II/A	II/A	II/A	II/A
Fork-carriage width	b3(mm)	560	560	560	560	560
Ground clearance,laden,below mast	m1(mm)	60	60	60	60	60
Ground clearance,centre of wheelbase	m2(mm)	50	50	50	50	50
Aisle width for pallets 1000x1200 crossways	Ast(mm)	2600	2700	2680	2700	2700
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2750	2850	2800	2850	2850
Turning radius	Wa(mm)	1140	1200	1180	1220	1220
Internal turning radius	b13(mm)	1140	1200	1180	1220	1220
Travel speed, laden/unladen	Km/h	5.8/6.0	5.8/6.0	5.8/6.0	5.8/6.0	5.8/6.0
Lift speed, laden/unladen	m/s	0.11/0.15	0.11/0.15	0.15/0.25	0.15/0.25	0.15/0.25
Lowering speed, laden/unladen	m/s	0.15/0.11	0.15/0.11	0.08/0.10	0.08/0.10	0.08/0.10
Max. drawbar pull, laden/unladen	N	2000/2050	2000/2050	2000/2050	2000/2050	2000/2050
Gradeability,laden/unladen	%	8/12	8/12	8/12	8/12	8/12
Max.gradeability,laden/unladen	%	10/15	10/15	10/15	10/15	10/15
Acceleration time,laden/unladen	s	6.5/5.5	6.5/5.5	6.5/5.5	6.5/5.5	6.5/5.5
Type of drive control		AC	AC	AC	AC	AC
Operating pressure for attachments	bar	120	120	120	120	120
Sound level at the driver's ear acc.to DIN 12053	dB(A)	68	68	68	68	68
