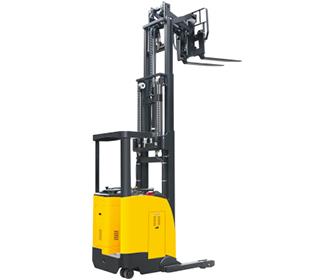

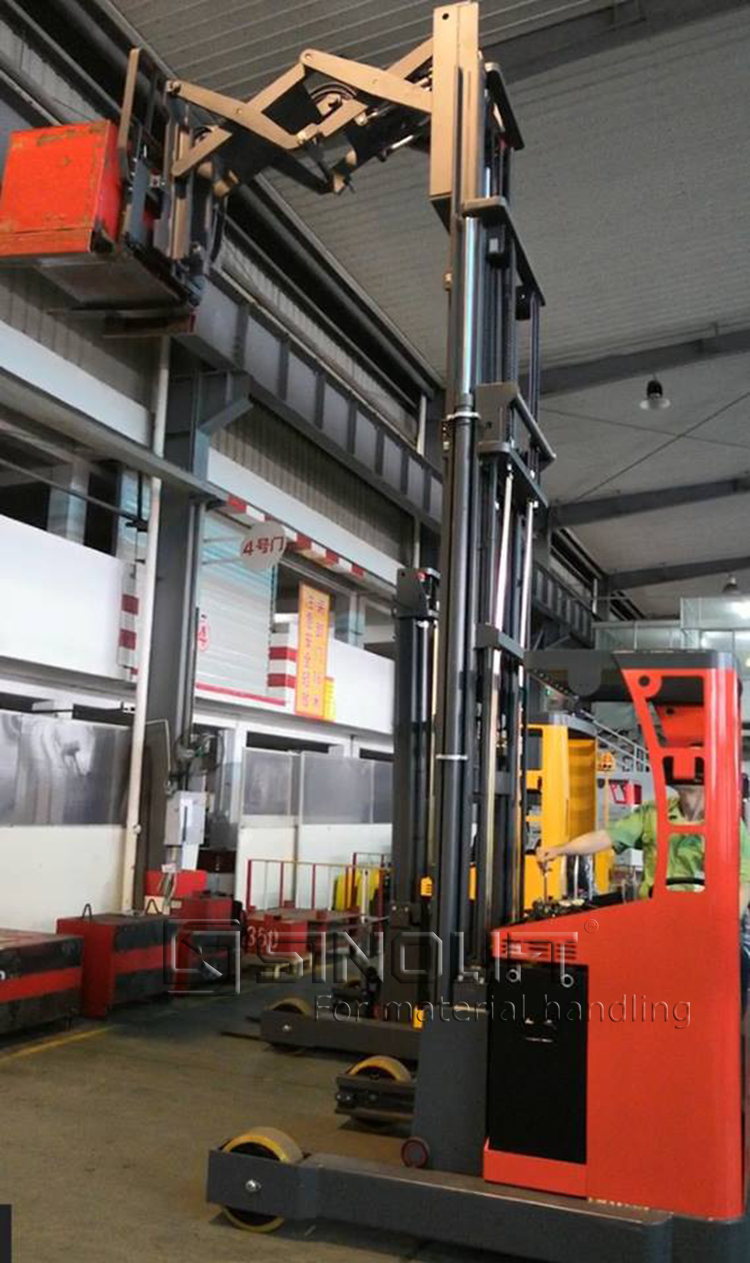

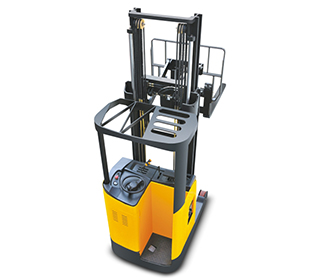

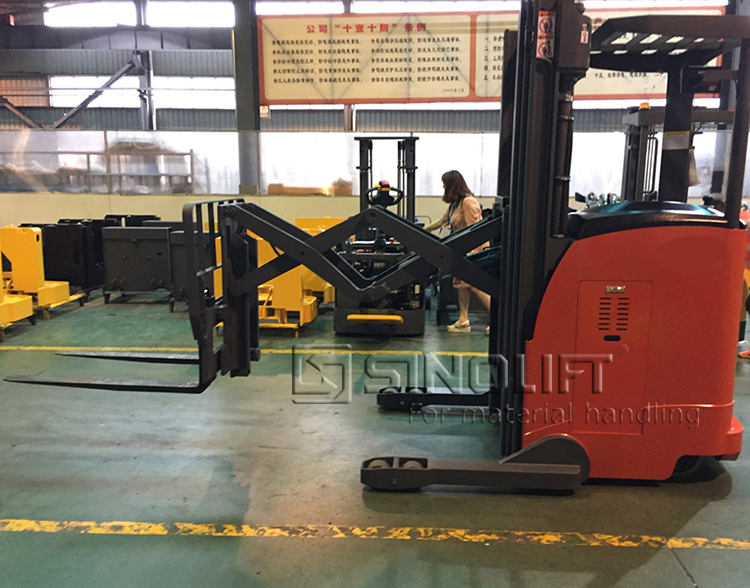

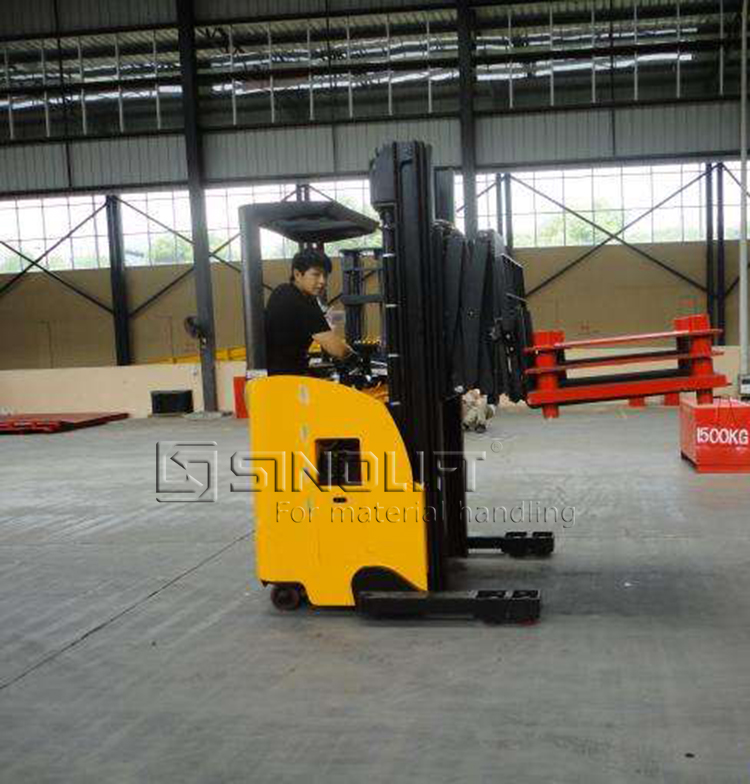

Name:CQDH15C Double Scissor Fork Reach Electric Forklift
Model:CQDH15C (Double Scissors)
Product Introduction:Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.Stepless speed control intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.Equipped with adjustable hand-rest, adapted to different operator.

Safety and Stability:

1. Advanced AC control system eliminating the motor  brushes and directional contactor, which makes the minimal maintenance requirements.

2. Stepless speed control intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.

3. Equipped with adjustable hand-rest, adapted to different operator.

4. Multi-function display: battery status, hour meter, fault indicator etc.

5. Two sides-way battery with roll-out system is very vonvenient to replace batteries.

6. Damping cushion for low-noise operation.

7. Built-in pressure relief valve protects the trucks from overloads.

8. Emergency power disconnect.


Structural:

1. Low center of gravity ensures the stable operation.

2. Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.

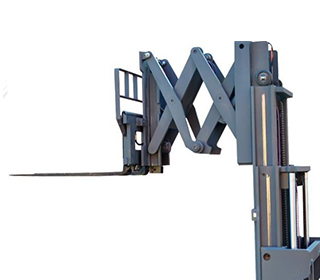

3. The scissor reach forks is operated by electric controller, which makes operation stable and no impact.

Model CQDH15C (二级门架) CQDH15C (三级门架)
Drive type Battery
Operator type Stand up
Load capacity kg 1500
Load center mm 500
Front overhang mm 450
Wheel base mm 1292 1316
net weight (include battery) kg 2200/2360 2500/2600/2700
Wheel Polyurethane
Front wheel size mm 250×82
Rear wheel size mm 250×822/ 125×824
Front wheel tread mm 678
Rear wheel tread mm 1140
Mast lowered height mm 2140/2390/2640 2200/2360/2520
Free lifting height mm 1575/1700/1825
Lifting height mm 3000/3500/4000 4500/5000/5500
Max. mast height mm 4070/4570/5070 4070/6070/6570
Overall length mm 2650
Overall width mm 1020/1264
Fork size mm 45*100*1070
Reach distence mm 500
Axle center groung clearance mm 65
Turning radius mm 1540 1600
Driving speed (full/no load) km/h 6/6.5
Lifting height (full/no load) m/s 0.1/0.12
descending speed (full/no load) m/s 0.15/0.12
Max. climbing ability % 5/12
Crane brake electromeganetic braking
Drive motor kw 2.2 AC
Lifting motor kw 3.3
Battery voltage (rated capacity) V/Ah 24/420
Battery weight kg 345
Battery size mm 970*236*520
Driver ear noise level is up to DIN12053 dB(A) 75
