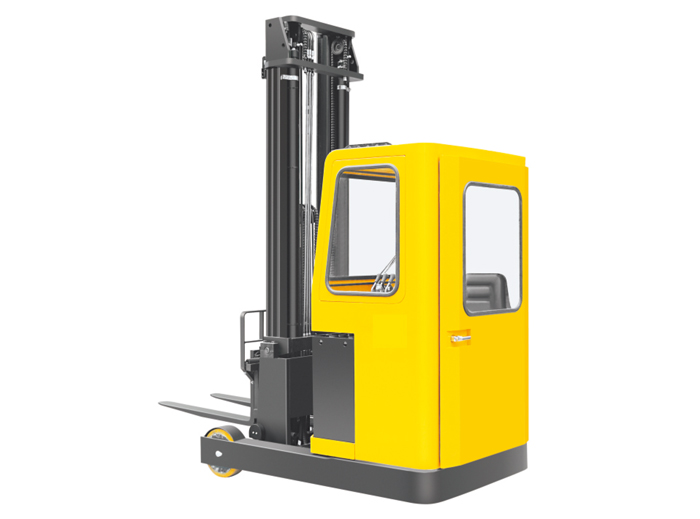

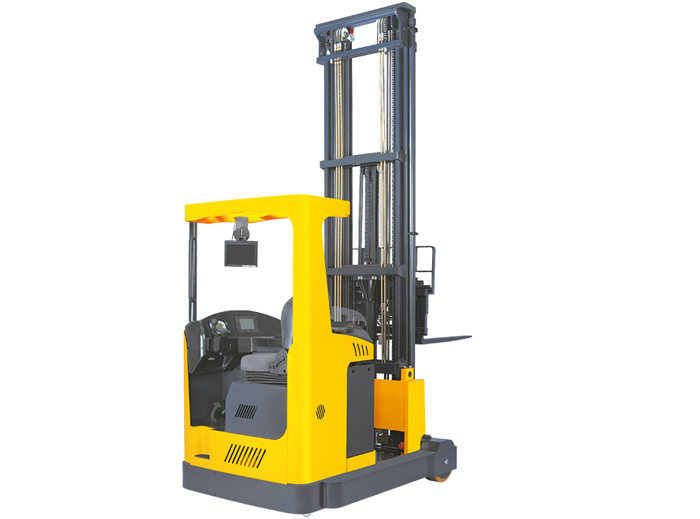

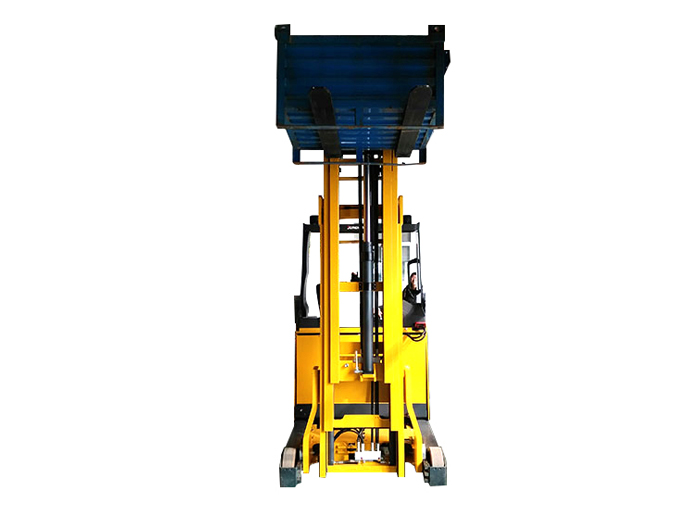

Name:CQD20H(EPS) Narrow Aisle Forklift
Model:CQD20H(EPS)

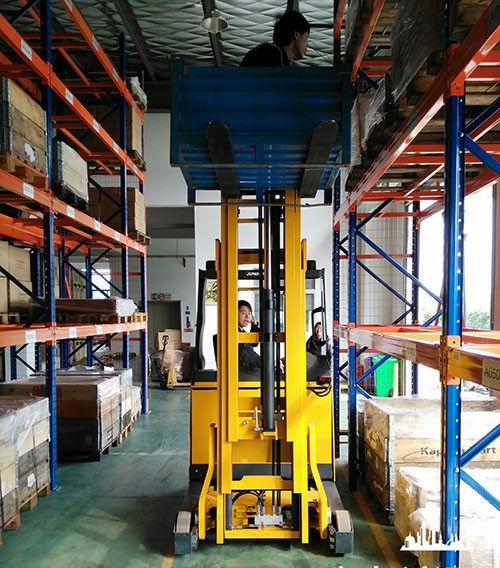

Product Introduction:The CQD series Counterbalanced Reach lift truck with innovative design and application oriented functionality,low noise,no pollution and small turning radius.Widely used for high-shelves in narrow aisle warehouses,supermarkets,etc.

The CQD series Counterbalanced Reach lift truck with innovative design and application oriented functionality,low noise,no pollution and small turning radius.Widely used for high-shelves in narrow aisle warehouses,supermarkets,etc.

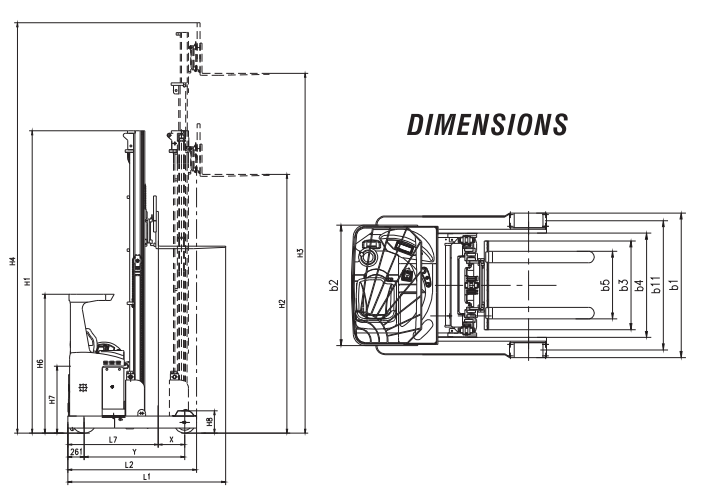

Modle Q(Kg) CQD20H(EPS) CQD20H(EPS)
Rated capacity C(mm) 2000 2000
Load centre kg 500 500
Service weight mm 4240 4840
Drive wheel dimension mm 406*152 406*152
Fork wheel dimension H1(mm) 340*134 340*134
Height,mast lowered H2(mm) 3390/3590/3890 4190/4490/4790
Free lift H3(mm) 2700/2900/3200 3600/3900/4200
Max.lift height H4(mm) 8000/8600/9500 10200/11100/12000
Height,mast extended H5(mm) 8800/9400/10300 11000/11900/12800
Height of overhead guard(cabin) H6(mm) 2200 2200
Seat height H7(mm) 1060 1060
Height of crura H8mm 355 355
Fork dimensions s/e/l(mm) 40/120/1070 40/120/1070
Overall length L1(mm) 2510 2510
Length(form forks bracket) L7(mm) 1440 1440
Reach distance L4(mm) 600 700
Length(barring fork) L2(mm) 1950 2050
Overall width b1(mm) 1510 1510
Front width b2(mm) 1260 1260
Aisle width for pallets 1000*1200 crossways Ast(mm) 2920 2920
Aisle width for pallets 800*1200 crossways Ast(mm) 2980 2980
Turning radius Wa(mm) 1820 1920
Travel speed,laden/unladen km/h 9.3 9
Lift speed,laden/enladen mm/s 240/300 240/300
Lower speed,laden.unladen mm/s 500/400 500/400
Battery dimension mm 1220*344*727 1220*344*727
Battery capacity AH 500 500
Battery voltage V 48 480
Battery weight kg 860 860
