Name:L Series 5-7T Heavy Duty Diesle Forklift
Model:CPCD50/CPCD60/CPCD70
Product Introduction:Lay more stress on pursuing comfort of control. The distribution of working control,gearshift control and braking and parking system and so on with more humanization effectively increases the control space and maximally decreases tiredness of operators.For examples

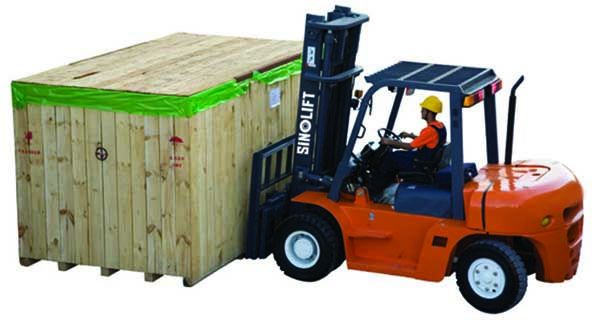

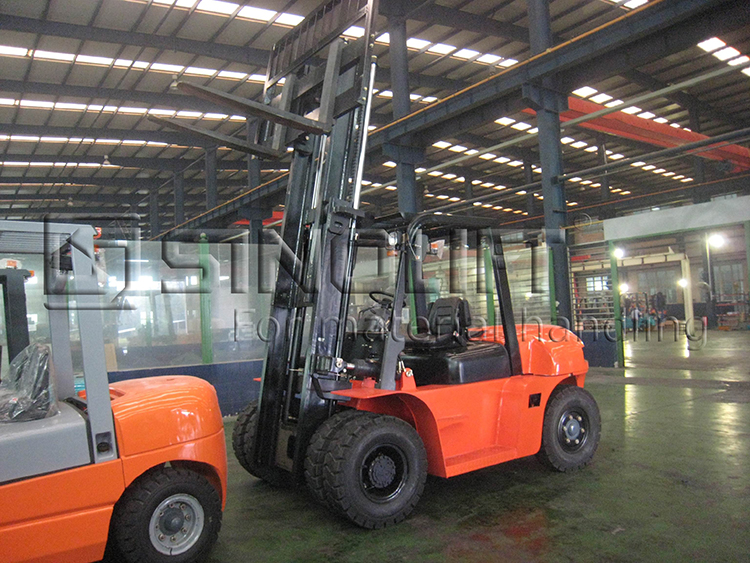

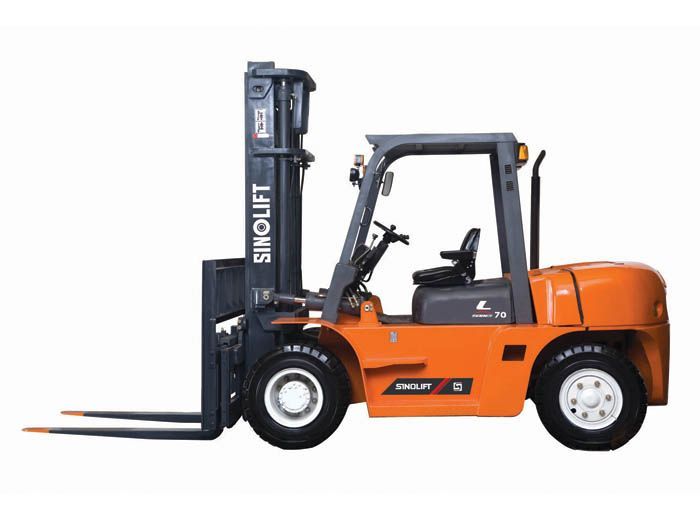

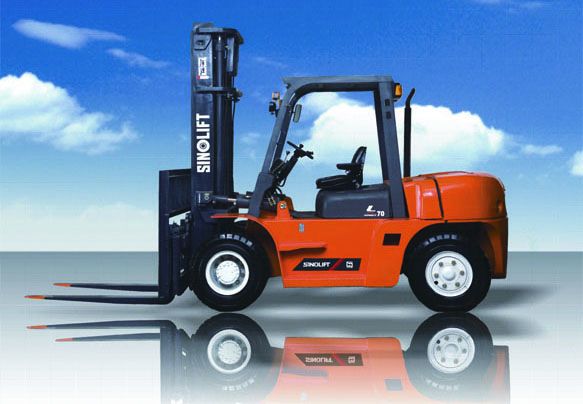

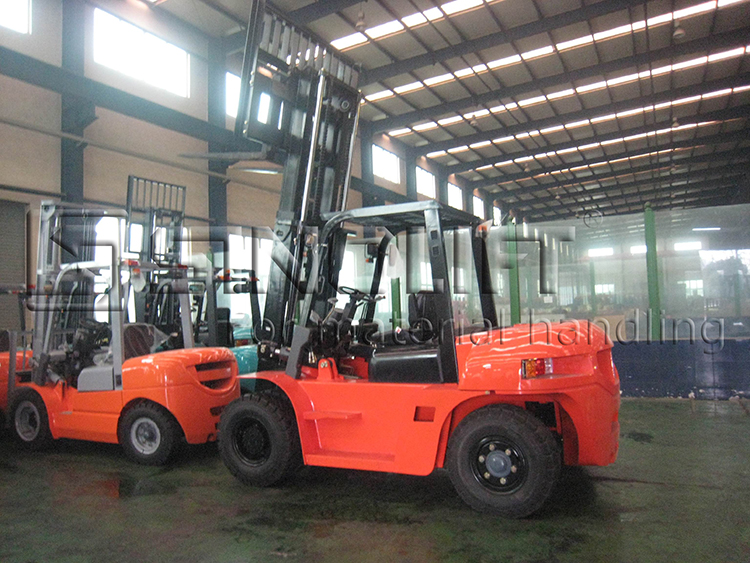

5.0/6.0/7.0T Heavy Duty Diesel Forklift Truck


#Strong pull results in a strong capacity of slope climbing:fully load 30% and empty load 20%.


#Locking device of neutral gear ensures that the machine is safer in repairing condition.


#Lay more stress on pursuing comfort of control. The distribution of working control,gearshift control and braking and parking system and so on with more humanization effectively increases the control space and maximally decreases tiredness of operators.For examples:The operator’s seat can be adjusted top forwards,backwards,leftwards and rightwards’,and steering wheel can be adjusted within the scope of front 24°-back24°.


#Its low back horizon makes the operator’s field of vision wider,which is more suitable for the working condition of frequent backing of the fork truck.


#More mature technologies used in loaders for more serious working conditions are applied in several controlling accessories so that the capacity is more dependable.


#The integral declining  fuel tank differs totally from the same type of domestic fork trucks,which omits the hydraulic pressure pipeline,connection and declining fuel tank around the front connection board so that the machine is clean and tidy.Mea-nwhile,the damage probability of the connection and the declining fuel tank is reduced.Thus,

The credibility of the overall machine is increased.


#The distribution of the control system is reasonable.The space is large and the driver’s seat is regulable,which can maximally reduce tiredness of operation.The fluctuating declining steering wheel and the new type of linked multifunctional dashboard is an adequate embodiment of human being harmony with machines.


#The direct injection engine is allocated with advanced sorts of performance indexes,which is of low fuel consumption and is easy to start.


#More mature technologies used in loaders under more serious working conditions are applied in several controlling acces sories to ensure more dependable performance.




Wide,comfortable,safety
·Wide operation environment with people oriented seat,reducing operator's fatigue.
·Adjustable steering wheel and new type multifunctional instrument.
·Posted double lifting cylinder brings wide front vision and high working efficiency.
Nice
·Streamlined body design,brings nice appearance;antiskid sides pedal,brings convenient operation.
Smart
·Horizontal swing cylinder and swing axle with shock absorber brings a compact and smart structure.
Convenient
·Front and back open engine cover,brings a cool and quiet engine;main parts are all in a maintainable place,brings a easy maintained forklift.
Clean
·The dual air filter is optional according to the requirement of customer.
·Air vent is in the top of machine,ensuring clean air supply and long using life of machine.


Manufacture
Model CPCD50 CPCD60 CPCD70 CPCD50W CPCD60W CPCD70W
Power type
Rated capacity kg 5000 6000 7000 5000 6000 7000
Load center mm 600 600
Lift height mm 3000 3000
Free lift height) mm 195 180
Fork size mm 1200×150×60 1200×150×65 1200×150×60 1200×150×65
Fork spread outside Min./Max. mm 300/1700 300/1700
Mast tilt angle deg 6/12 6/12
Front overhang mm 622 622
Overall Length to face of fork mm 3472 3592 3472 3592
dimensions Overall width mm 1995 1995
Mast lowered height mm 2519 2500
Mast extended height mm 4419 4419
Overhead guard height mm 2416 2420
Turning radius) mm 3300 3450 3300 3450
Min, right angle aisle width mm 3000 3090 3000 3090
No load/full load Travel speed km/h 28/26 28/26
Lift speed mm/sec 450/390 450/360 550/400 550/360 550/350
Max. gradeability  % 20 20
Self weight kg 8000 8640 9350 8340 8840 9350
Tires Front 8.25-15-14PR 8.25-15-14PR
Rear 8.25-15-14PR 8.25-15-14PR
Tread Front mm 1470 1470
Rear mm 1700 1700
Wheelbase mm 2250 2250
Min.ground clearance mm 200 160
Battery V/AH 2×12/105 2×12/100
Engine Model 6102BG6 A-6BG1QC
Manufacture Zhaocai JAPAN
Rated output kw/rpm 80.9/2500 82.3/2000
Rated torque N.m/rpm 353/1600 416/1400-1600
No.of cylinder 6 6
Bore×stroke mm 102×118 105×125
Displacement cc 5.785 6.494
Fuel tank capacity L 140 140
Transmissions Type  Hydraulic Hydraulic
Shift FWD/RWD 2/2 2/2
Operating pressure Mpa 17 17
