Name：CDD Full Electric Stacker
Model：CDD
Product Introduction：CDD Full Electric Stacker

1.Capacity 1200kg, 1500kg
2.Conforms to EN1757-1:2001, EN1727
3.Heavy duty range for tough application.
4.Top quality electronic control system from Curtis.
5.Powerful power pack and drive wheel are made in Euro.

Modle			CDD1.2					CDD1.5
Standard (CDD)			CDD1.2/16	CDD1.2/24	CDD1.2/29	CDD1.2/31	CDD1.2/33	CDD1.5/16	CDD1.5/24	CDD1.5/29	CDD1.5/31	CDD1.5/33

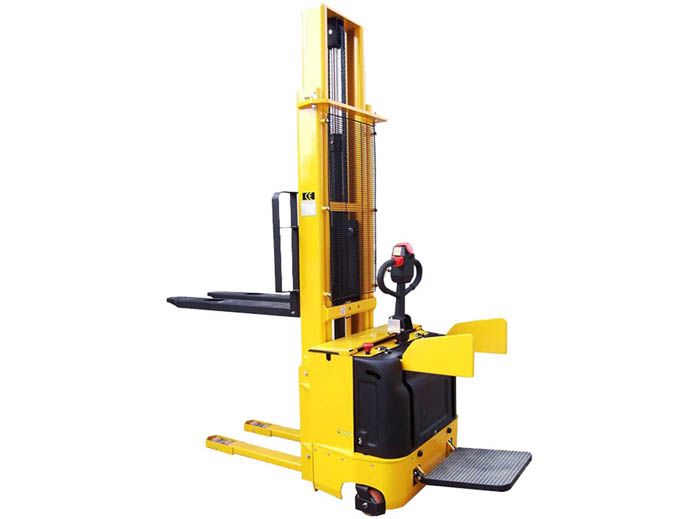

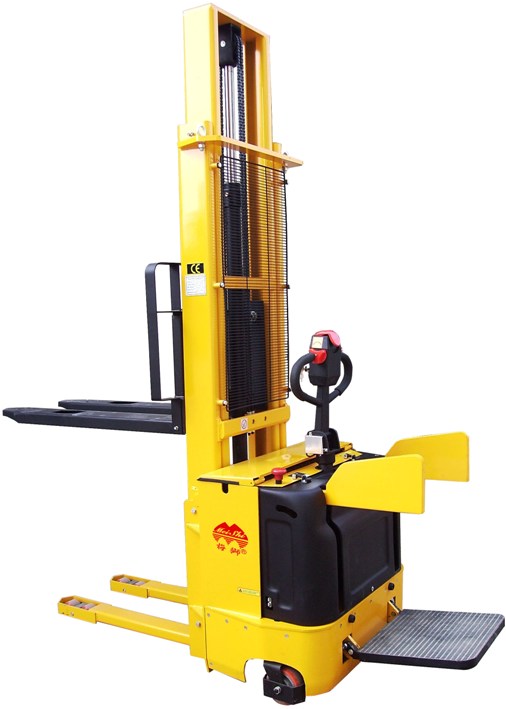

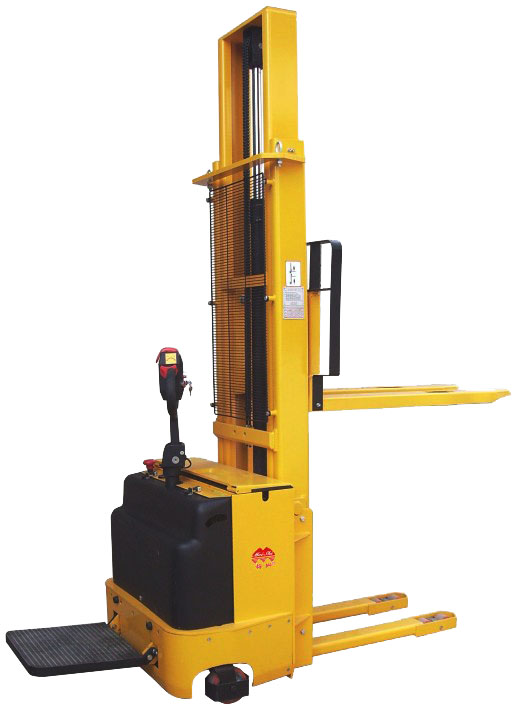

With Stand-On Platform (CDD-T)			CDD1.2/16T	CDD1.2/24T	CDD1.2/29T	CDD1.2/31T	CDD1.2/33T	CDD1.5/16T	CDD1.5/24T	CDD1.5/29T	CDD1.5/31T	CDD1.5/33T
With wide Straddle Leg (CDD-W)			CDD1.2/16W	CDD1.2/24W	CDD1.2/29W	CDD1.2/31W	CDD1.2/33W	CDD1.5/16W	CDD1.5/24W	CDD1.5/29W	CDD1.5/31W	CDD1.5/33W
Capacity G		kg	1200					1500
Load Center C	CDD,CDD-T	mm	600
Load Center C	CDD-W	mm	500
Min. Height of Forks	CDD,CDD-T	mm	90
Min. Height of Forks	CDD-W	mm	65
Max. Lifting Height h₃		mm	1600	2450	2900	3100	3300	1600	2450	2900	3100	3300
Max .Height of Stacker h₄		mm	2244	3094	3544	3744	3944	2244	3094	3544	3744	3944
Height of Stacker h1	CDD,CDD-T	mm	2090	1800	2025	2125	2225	2090	1800	2025	2125	2225
Height of Stacker h1	CDD-W	mm	2166	1876	2101	2201	2301	2166	1876	2101	2201	2301
Length of stacker L	CDD	mm	1930
	CDD-T	mm	2424
	CDD-W	mm	1792
Fork Length	CDD,CDD-T	mm	1150 (Steel plate fork)
Fork Length	CDD-W	mm	1000 (Forged plate fork)
Fork Width M1	CDD,CDD-T	mm	540
Fork Width M1	CDD-W	mm	230~830 (Adjustable)
Single Fork Width N	CDD,CDD-T	mm	160
Single Fork Width N	CDD-W	mm	100
Width of Stacker B	CDD,CDD-T	mm	940
Width of Stacker B	CDD-W		1080
Overal width of legs M	CDD,CDD-T		700
Overal width of legs M	CDD-W	mm	1197~1502 (Adjustable)
Min. Turning Radius Wa	CDD	mm	1525	1525	1525	1525	1525	1540	1540	1540	1540	1540
	CDD-T	mm	2000 (1540 if without Stand-on Platform ) Platform size: 480x450mm
	CDD-W	mm	1533	1533	1533	1533	1533	1548	1548	1548	1548	1548
Battery		Ah/V	240/24V 200Kg
Battery Charger		V/A	24/20 (24/30 is option)
Double front wheel		mm	Ø78x70
Balance wheel		mm	Ø150x75
Drive wheel		mm	Ø250x80
Traveling speed (Loaded/Unloaded)		km/h	4.8/5.5
Lifting Speed (Loaded/Unloaded)		mm/s	150/65
Drive Motor		Kw/V	1.2/24
Lifting Motor		Kw/v	2.2/24
Net Weight (without battery)	CDD	kg	614	670	692	705	713	620	677	699	712	720
	CDD-T	kg	624	680	702	715	724	624	680	702	715	724
	CDD-W	kg	820	885	895	905	910	820	885	895	905	910
