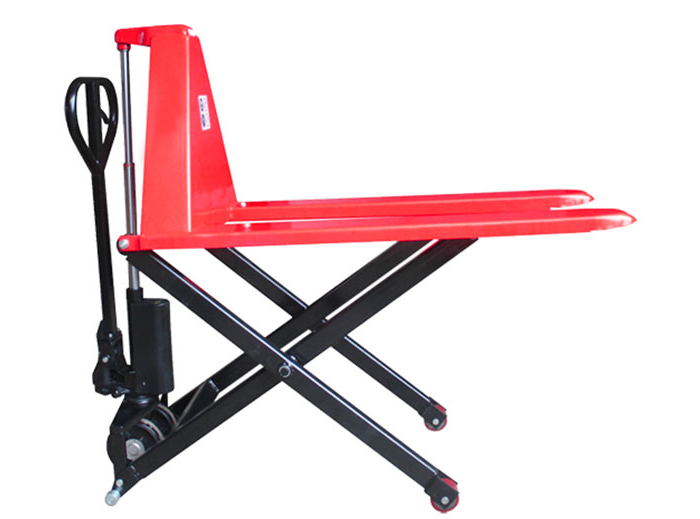

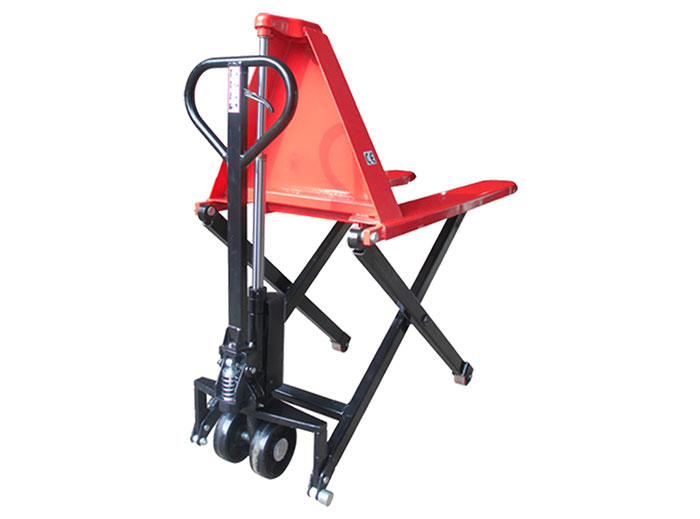

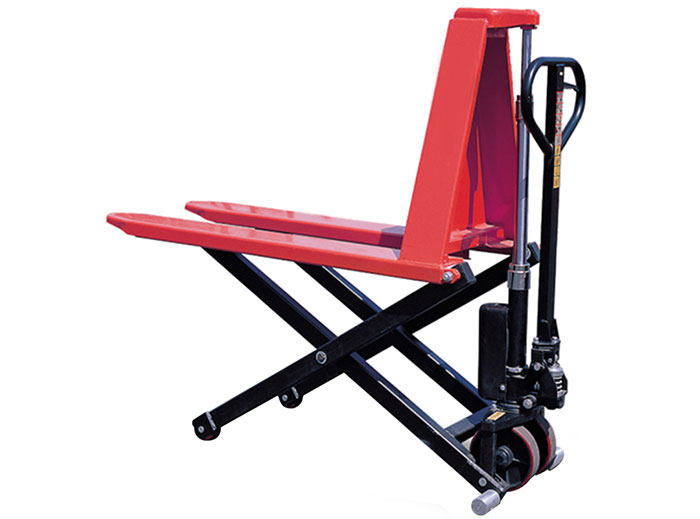

Name:NPH series Scissors Lift Pallet Truck
Model:NPH
Product Introduction:Simple structure ; Good-looking appearance 1. One cylinder system guarantees: *No risk of oil leakage *No risk of dropping to the second piston suddenly 2. Newest handle design: *Has a nice appearance *Operates comfortably. *Meets ergonomic requirements

Features

The manual high lift pallet truck provides users with an efficient and multifunctional material handling tool.

Increased Safety: When lifting loads over 400mm, the self-adjusting stabilizer is automatically activated for maximum stability and optimal breakage.

Greater stability: The long front legs increase the stability when handling uneven pallets.

Quick-start operation: The quick-start function doubles the lifting speed when lifting a load below 250kg.

Easy handling of loads throughout the workplace.

Easy placement of loads to correct ergonomic working height.

Model

NPH1000

NPH1500

NPH1000(N)

Capacity

(kg)

1000

1500

1000

Total lift height

(mm)

800

800

800

Lowered fork height

(mm)

85

85

85

Size of fork

(mm)

162x50

162x50

162x50

Fork length

(mm)

1150

1150

1150

Width over the forks *

(mm)

520/550/685

520/550/685

550/680

Height of handleless

(mm)

975

1050

975

Steering wheel

(mm)

Ø150x50

Ø150x50

Ø180x50

Fork wheel

(mm)

Ø74x50

Ø74x50

Ø74x50

Truck weight

(kg)

112

125

133

pcs/20" container

(pcs)

120

100

72

Remark: 1. Fork length can be changed with special requirements

2. NPH1000(N) is one-cylinder-system.
