Home >> Products >> DTF300 electric drum lifter

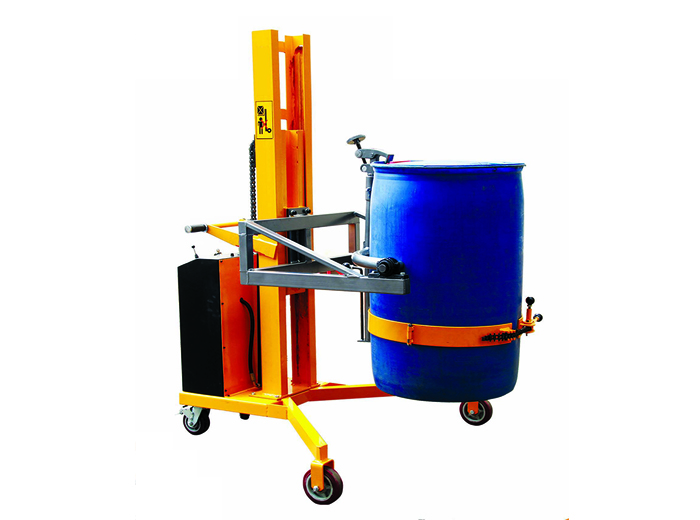

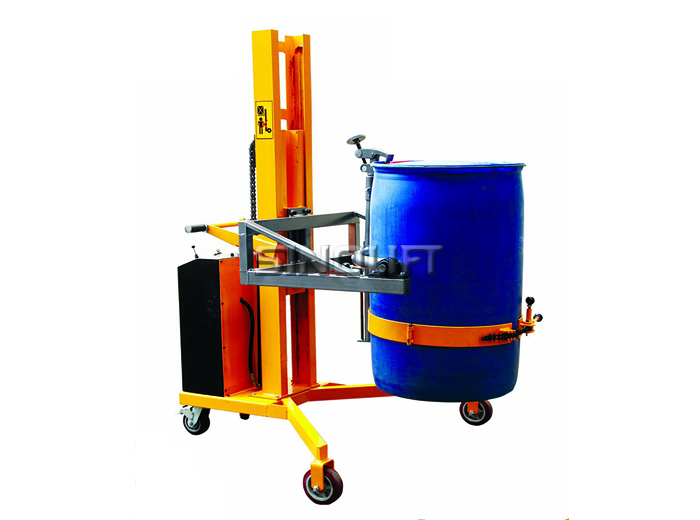

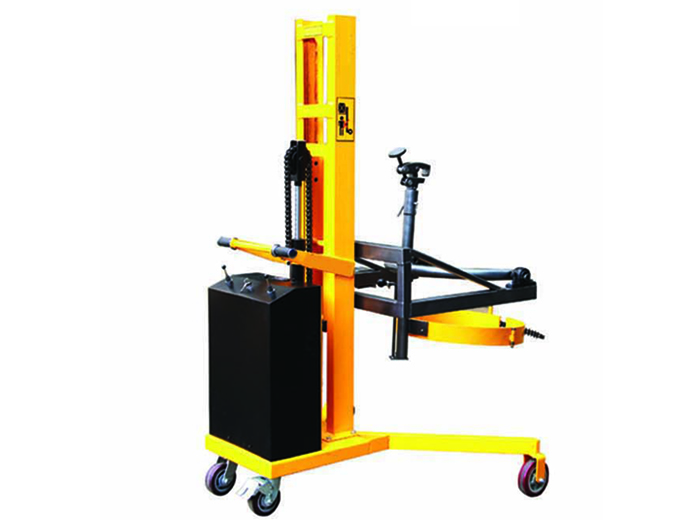

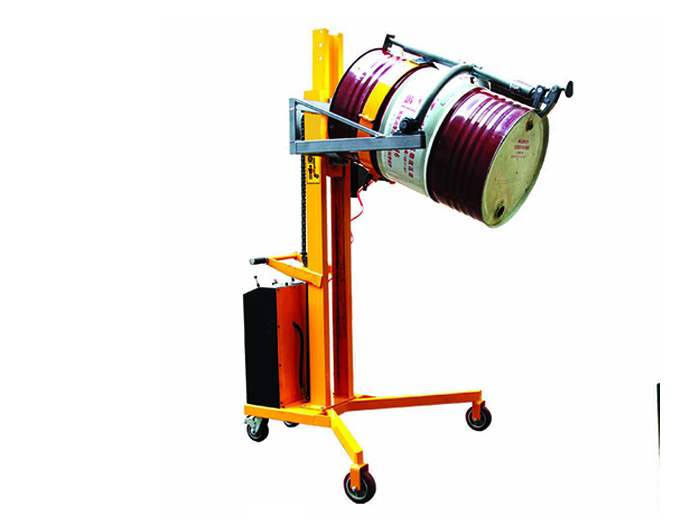

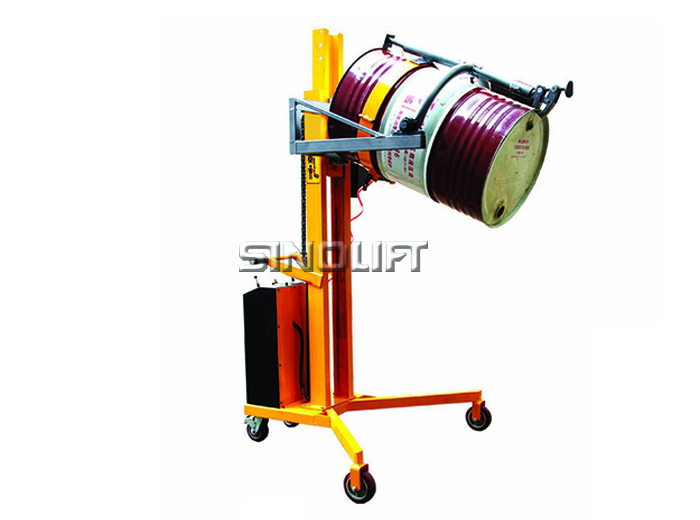

Name：DTF300 electric drum lifter
Model：DFT300
Product Introduction：Lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm Eagle clamping tight the oil drum during lifting which is safety and reliable * Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet

*Lift with pedals; Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, maximum lifting height:1100mm
* Eagle clamping tight the oil drum during lifting which is safety and reliable
* Fit for handling oil drums placed along pallet edges or corners; carry oil drums from the direction of diagonal line of pallet
* Applicable for transferring, weighting, stacking and pallet loading & unloading, etc. of all kinds of oil drums.
Note:

Electronic weighting device is built in DTF300-1; eagle gripper is optional to equip

With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Model		DTF300
Capacity	kg	300
Net weight	kg	221
Lifting speed	mm/s	80
Front wheel	mm	ø150*50
Rear wheel	mm	ø125*50
Min turning radius	mm	1590
Power	kw/h	0.8
Battery	V/Ah	12/100
