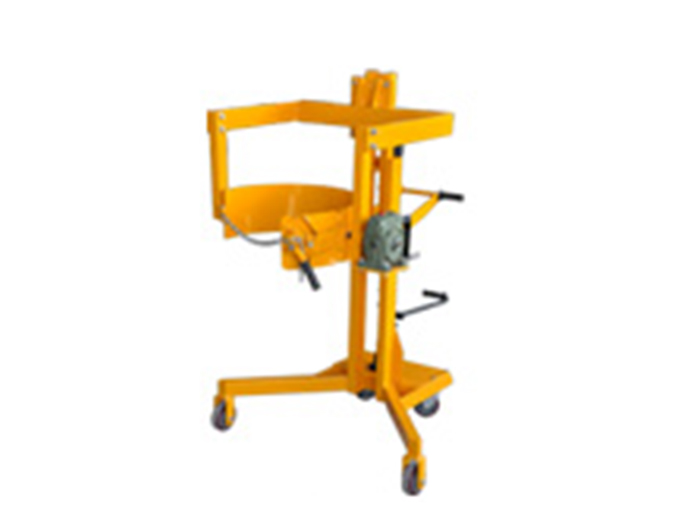

Name：Sinolift DTF350B drum dumper
Model：DTF350B

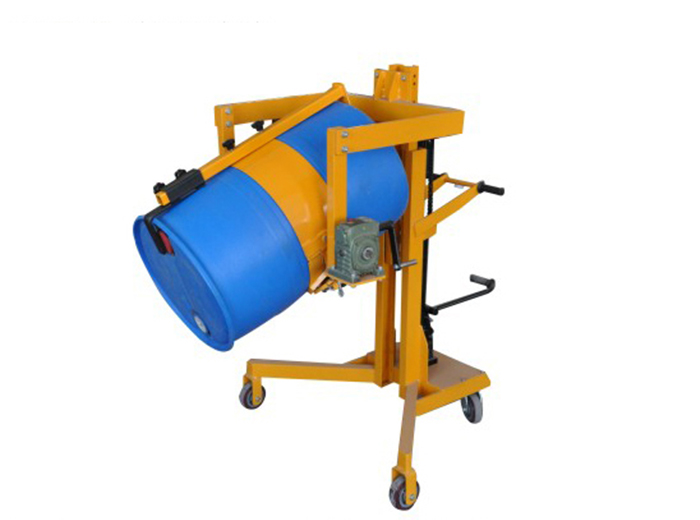

Product Introduction：Designed for transports,rotates,tilts and drains fully loaded drums. Controll the drum through pull trains. Drum size: steel drum 55gallon and 220lb plastic drum. Drum can rotate 360 degree, max height from ground is 750mm.

Designed for transports,rotates,tilts and drains fully loaded drums.
Controll the drum through pull trains.

Drum size: steel drum 55gallon and 220lb plastic drum.

Drum can rotate 360 degree, max height from ground is 750mm.

MODEL		DTF350B
Capacity	kg	350
Size of drum	mm	570~600
Drum type		55gallon steel &palstic
Rotate angle	degree	360︒
Max drum horizontal height from ground	mm	800
Oil mouth 30︒ tilt height from ground	mm	750
