Name:DY350C DY350C-1 DY350C-2 Hand Drum Porter
Model:DY350C/DY350C-1/DY350C-2
Product Introduction:Hydraulic Drum Truck (right-angular leg) - DY350C/DY350C-1/DY350C-2 * Design of right-angular leg can be suitable to handle the drums angular on the pallet. * High lift, heavy-duty, durable, multifunctional. * Suitable for 30~55 gallon steel or 210L plastic drums.

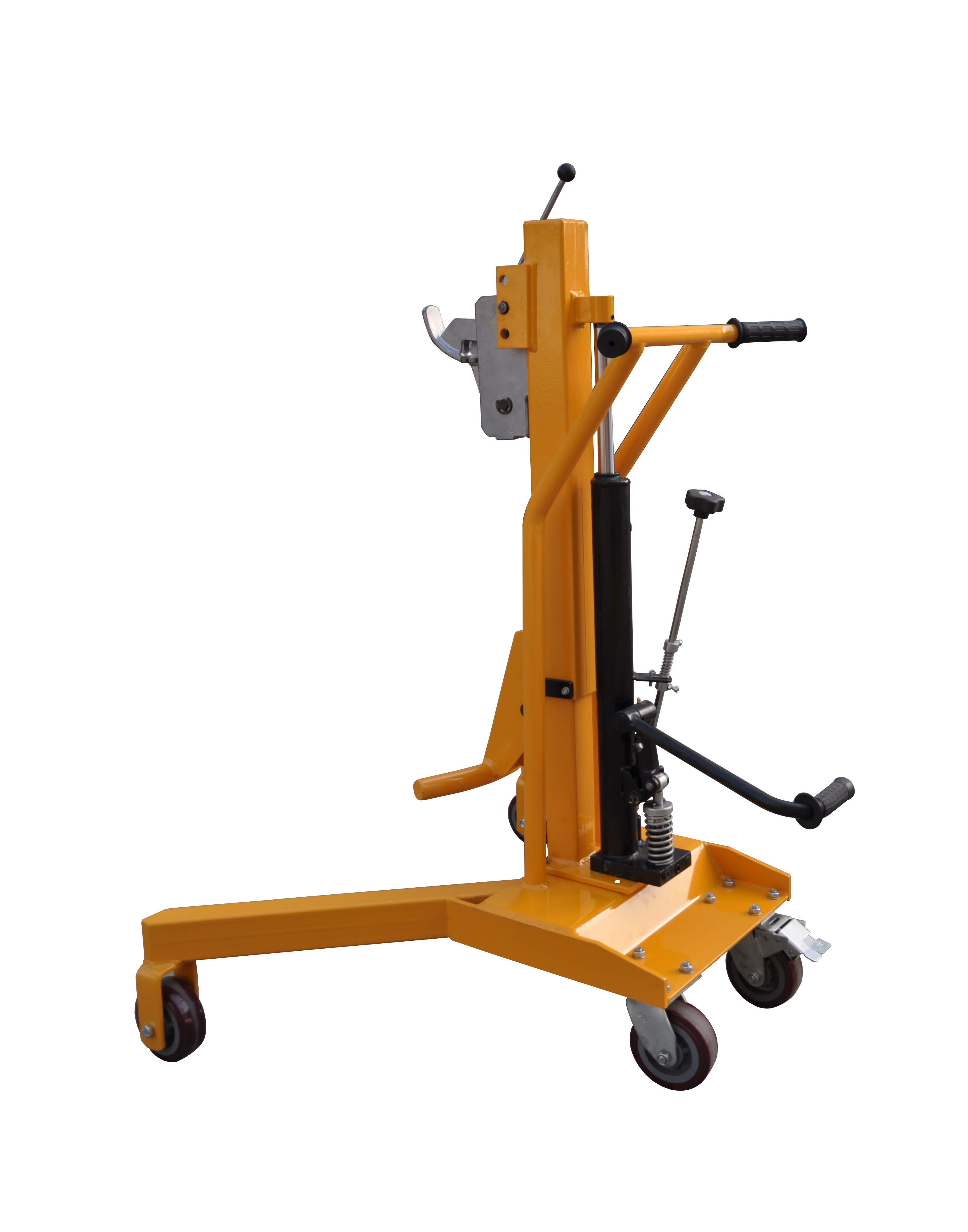

Hydraulic Drum Truck (right-angular leg) - DY350C/DY350C-1/DY350C-2

* Design of right-angular leg can be suitable to handle the drums angular on the pallet.
* High lift, heavy-duty, durable, multifunctional.
* Suitable for 30~55 gallon steel or 210L plastic drums.

Model DY350C DY350C-1 DY350C-2
Capacity kg 350 350 350
Drum Size mm 30~55gallon (Ø450x700mm~Ø572x900mm) steel, 210L plastic
Lifting Height mm 450 450 450
Leg Width mm 920 920 920
Dia. of Front Wheel x Qty' mm Φ180×2 Φ180×2 Φ250×2 (with elastic)
Dia. of Rear Wheel x Qty' mm Φ150×2 Φ150×2 Φ150×2
Overall size mm 850×1100×1100 850×1100×1100 850×1100×1100
Net Weight kg 81 78 83
