Home >> Products >> DTW400 DTW400A Hand Drum Porte

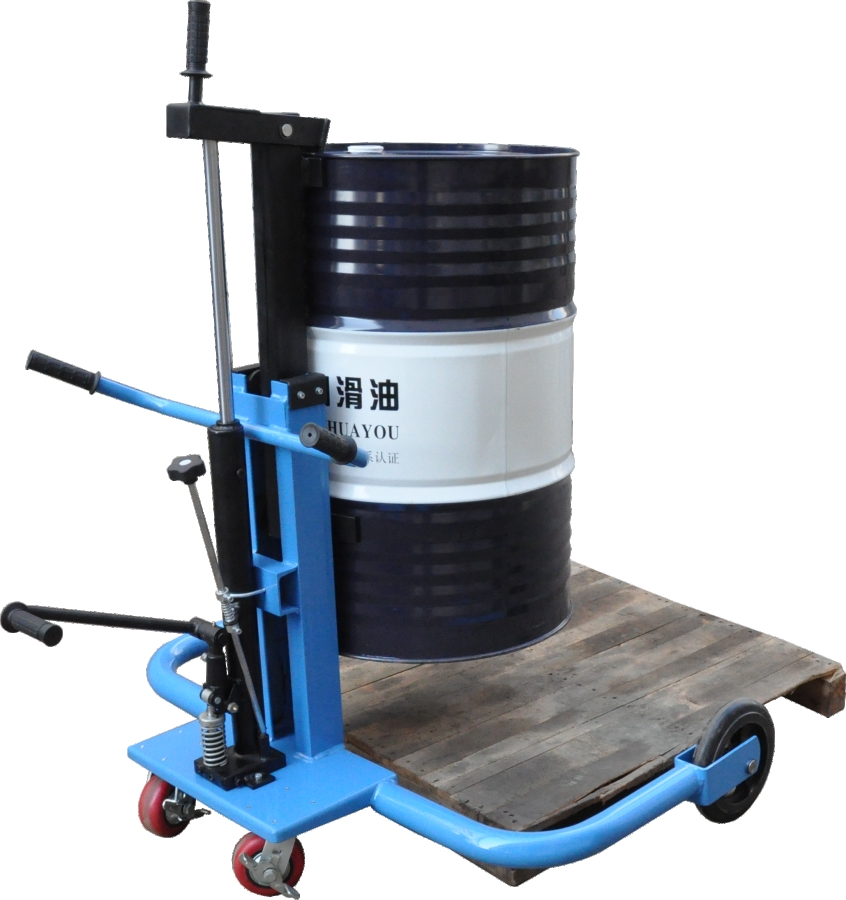

Name：DTW400 DTW400A Hand Drum Porte
Model：DTW400/DTW400A
Product Introduction：Hydraulic Drum Truck DTW400 DTW400A 1.Wide leg and heavy duty design, can be used for handling heavy drums and long span life. 2. Less lifting force by a reliable hydraulic pump. 3. Dead weight grip design for easy and reliable operation. 4. Easier moving with two big size rollers and two caster wheels.

Hydraulic Drum Truck DTW400 DTW400A
1.Wide leg and heavy duty design, can be used for handling heavy drums and long span life.
2. Less lifting force by a reliable hydraulic pump.
3. Dead weight grip design for easy and reliable operation.

Model		DTW400	DTW400A
Lifting Capacity	kg	400	400
Drum Size		Ø572x900mm (55gallon) steel, 210L Plastic
Lifting Height	mm	350(500)	350(500)
Lfiting Per Stroke	mm	22	22
Straddle leg inner width	mm	650	850
Wheel size (Front Wheel)	mm	Ø250x55	Ø250x55
Wheel size (Rear Wheel)	mm	Ø150x50/Ø125x50	Ø150x50/Ø125x50
Outline Dimensions	mm	790x810x1260	790x1010x1260
Net Weight	(kg/lbs)	75	80
