Name：GTWY Aerial Work platform (single mast)
Model：GTWY

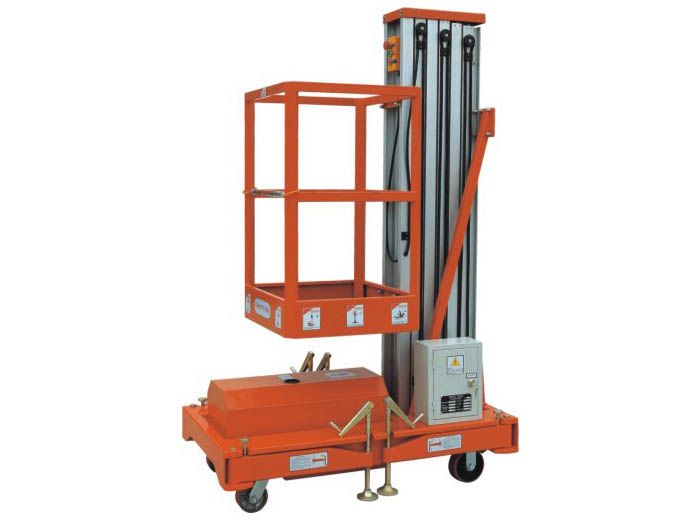

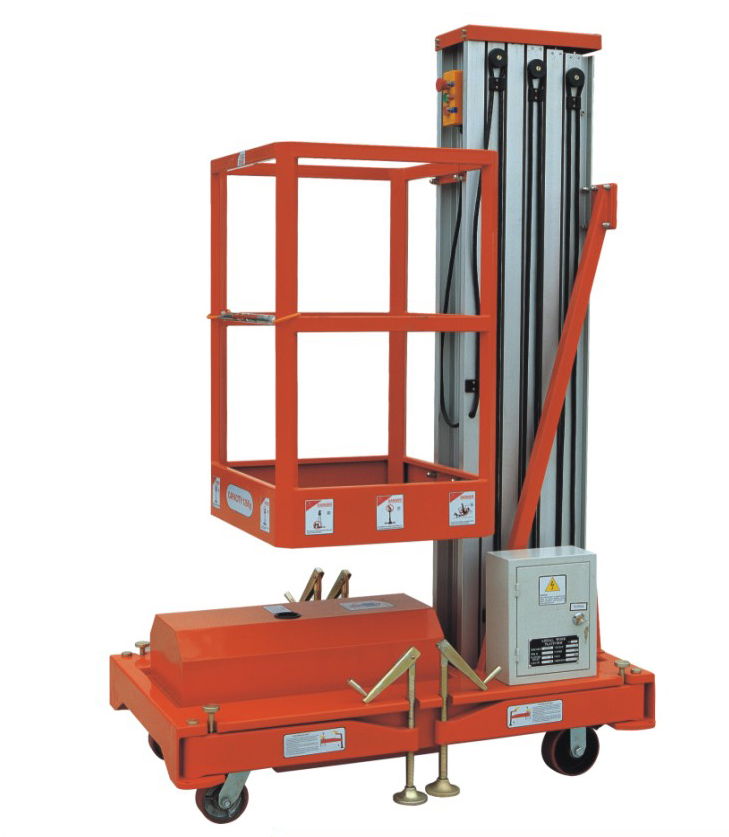

Product Introduction：GTWY Aerial Work platform (single mast)

The product has passed the CE certification. It adopts aluminum mast design which is light, flexible and reliable. It is only for one person’s working in exhibition hall, warehouse, supermarket, airport, port, etc.
1) The product can be powered by DC or AC according to the order.
2) The external size is small after folded. It can be moved into elevator and pass ordinary door or narrow passage.
3) There are two controllers for ascending and descending.
4) It has unique upper platform and lower platform design.

Model No.			GTWY6-1000	GTWY8-1000	GTWY10-1000
Max. Platform Height		Mm	6000	8000	10000
Max. Machine Height			7350	9460	11300
Min. Platform Height			580	580	580
Ground Clearance			60	60	60
Lift Rated Capacity		Kg	150	125	125
Platform Size		Mm	630×650	630×651	630×652
Outspread Size		Mm	2030×1840	2030×1841	2030×1842
Electrical Source	AC	V	220-240	220-241	220-242
Electrical Source	DC	V	12	12	12
Aneroid Battery		V/Ah	2×12/75	2×12/76	2×12/77
Charger		V/A	12/15	12/16	12/17
Lifting Motor	AC	V/kw	220/0.75-1.5	220/0.75-1.6	220/0.75-1.7
Lifting Motor	DC	V/kw	12/1.5-1.6	12/1.5-1.7	12/1.5-1.8
Overall Length		Mm	1420	1420	1420
Overall Width			840	840	840
Overall Height			1920	2040	2040
Overall	AC	Kg	375	410	440
Net Weight	DC	Kg	415	450	490
