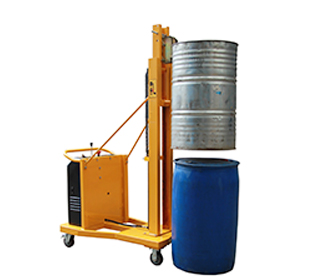

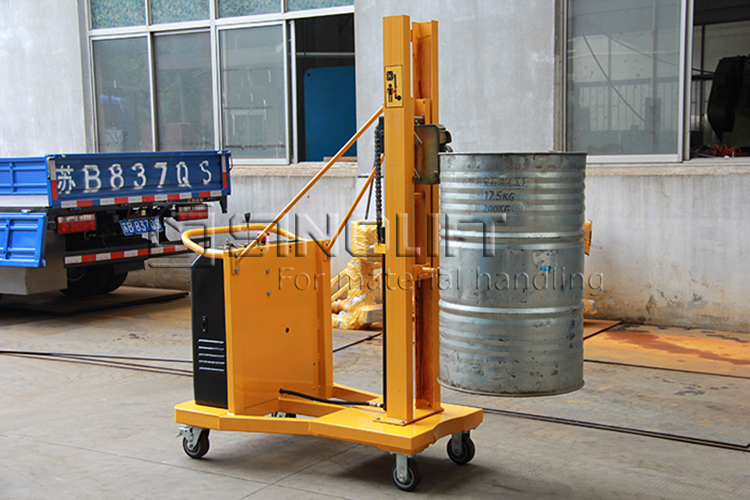

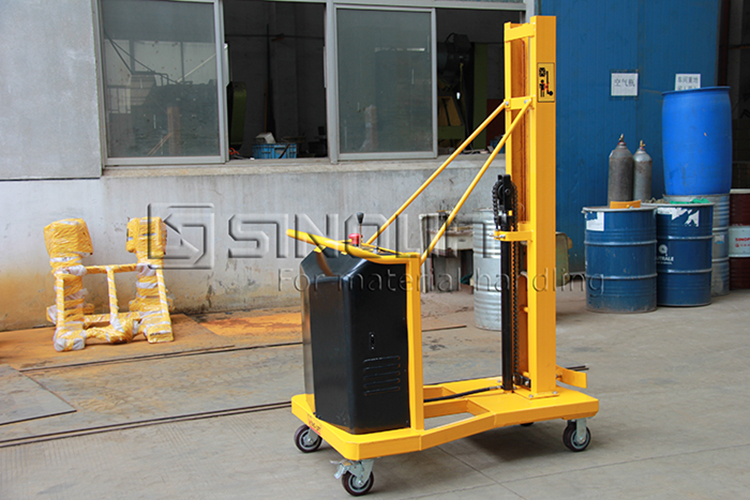

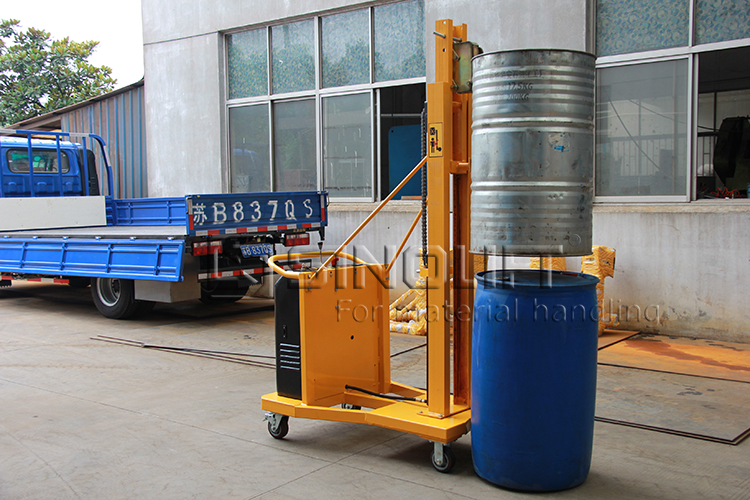

Name:DT280 (YL280) (DR280) Counter Balance Electric Drum Stacker
Model:DT280 (YL280) (DR280)
Product Introduction:- Counter balance design without front supporting leg, thus to provide enough room for loading and unloading drums; - Suitable for close top, steel drum and plastic drums; - Adjustable arc bracket to ensure handling drums upright;

* Powered Drum Transporters eliminate injuries from manhandling drums.

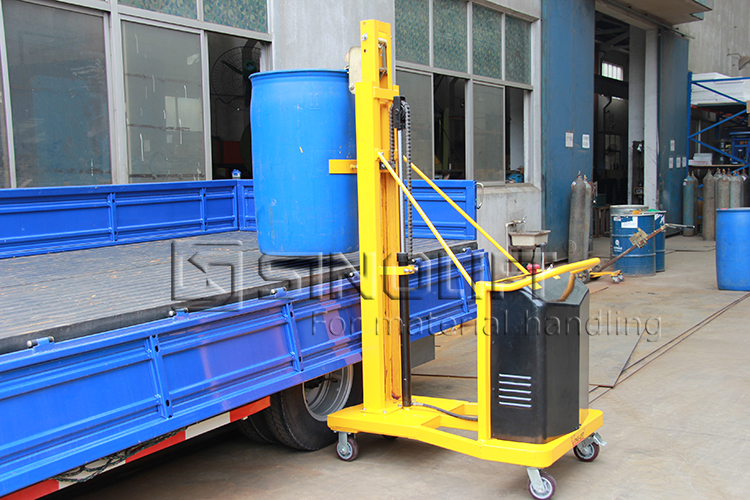

* Makes an easy task of transporting drums in and out of trucks, or up and down ramps or traveling over short distances.


*  Suitable for brimmed steel drum and plastic drums.

*  With VARTA maintenance-free battery;


Additional Options Available:

· approved epoxy powder coating with stainless steel hardware.

· Non-intrinsically Safe Scale with Indicator.

· Adjustable clamping pressure with gauge.

Model YL280
Rated Load Capacity kg 280
Drum Size mm 55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic
plastic or steel drum
Wheel Size mm Ø125x50
Turning Radius mm 1300
Pump Station Power KW/h 1.5
Battery V/Ah 12/120
Lifting Height mm 1050
Lifting Speed mm 120
Overall Size mm 1300x800x1880
Net Weight kg 270
Model DT280
Rated load capacity kg 280
Net weight kg 270
Wheel size mm Ф125*50
Overall size mm 1300*800*1880
Turning radius mm 1300
Pump station power Kw/h 1.5
Battery Ah/V 120Ah 12V
Lifting height mm 1050
Lifting speed mm 120
