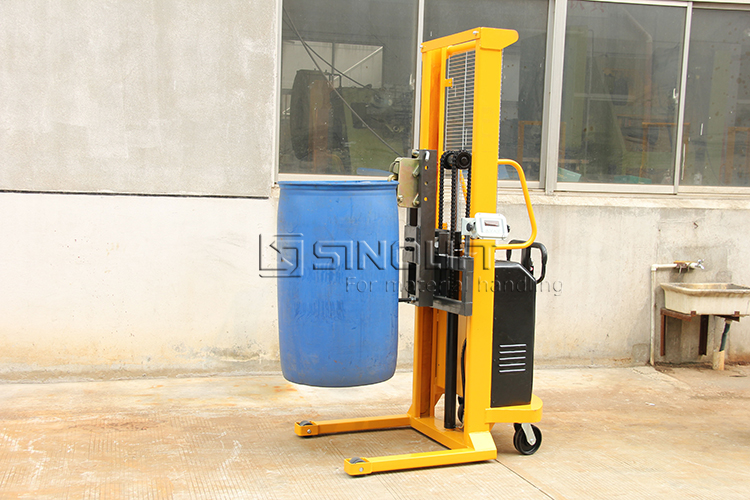

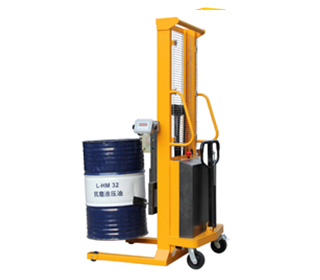

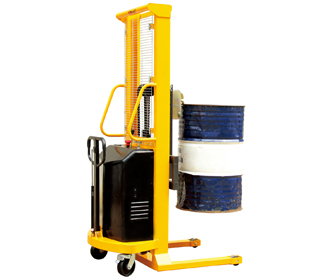

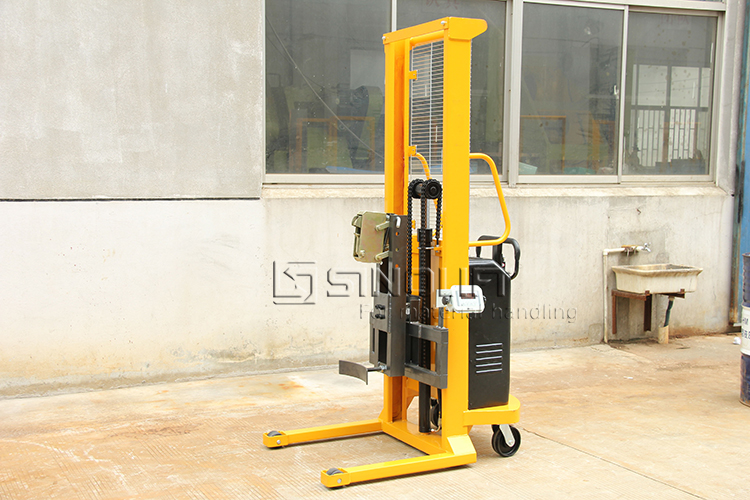

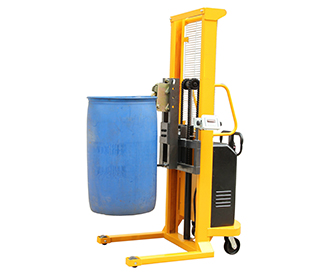

Name:DT500-1 Semi Electric Drum Stacker with Scale
Model:DT500-1
Product Introduction:- Eagle-grip structure, fit for transporting, stacking steel and plastic drums; - With Scale, which can control pouring and measure capabilities, accuracy range: ±3‰; - Optional weighing & print meter;

Features:


1. Integrated functions of transporting, stacking and weighting.

2. Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply.

3. Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.

4. Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;

5. Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm

6. Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.

7. Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.

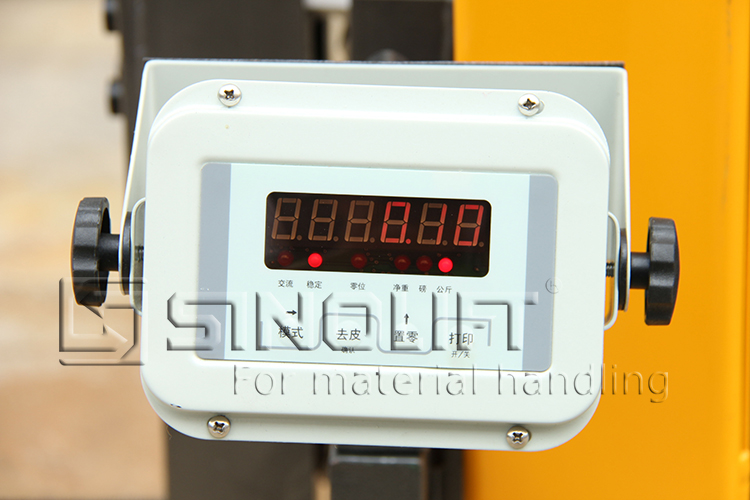

Note: Electronic weighting device is built in DT500-1, operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Model DT500-1
Loading weight kg 500
Net weight kg 228
Wheel Dimension mm Ø80*60 / Ø150*50
Inner/Outer Width of Front Leg mm 630/810
Outline Dimension mm 1200*850*2060
Turning Radius mm 1400
Pump Unit Power KW/h 1.5
Battery Parameter Ah/V 120/12
Lifting Height mm 1600
Lifting Speed mm 120
