Name:YL600B Full Electric Drum Stacker
Model:YL600B
Product Introduction:- Power drive, transport, lift and tilt 55 gallon steel drums. - Available to carry the drum to rack (lower than 2400mm). - Imported electrical vehicle exclusive walking control system. - Can be operated by one people, labor saving and high work efficiency. - With stepless speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel.

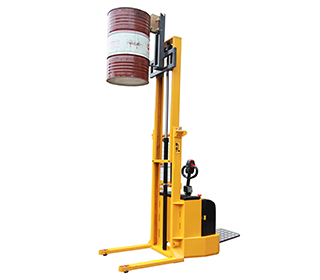

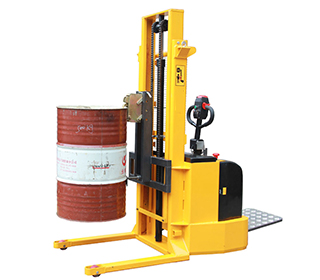

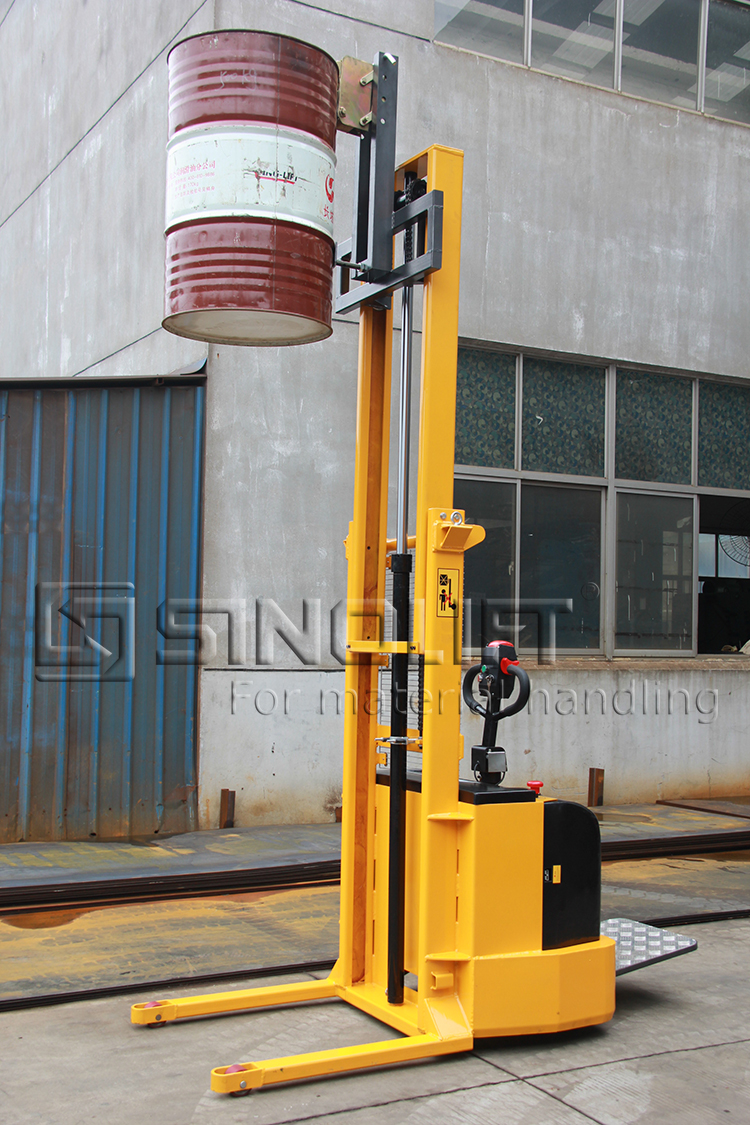

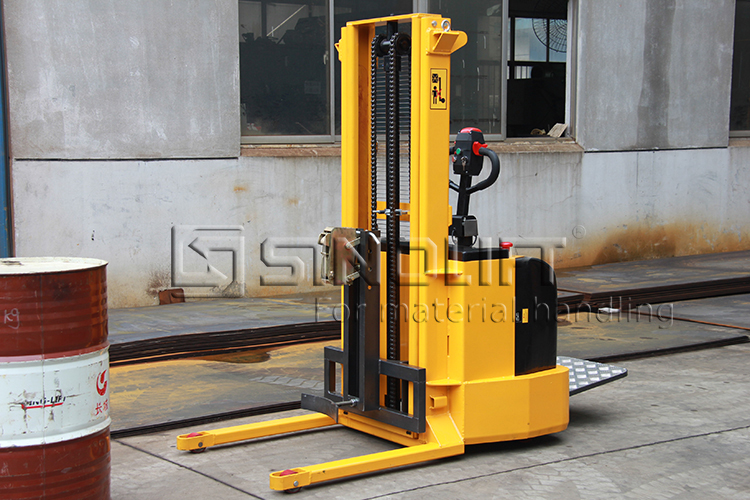

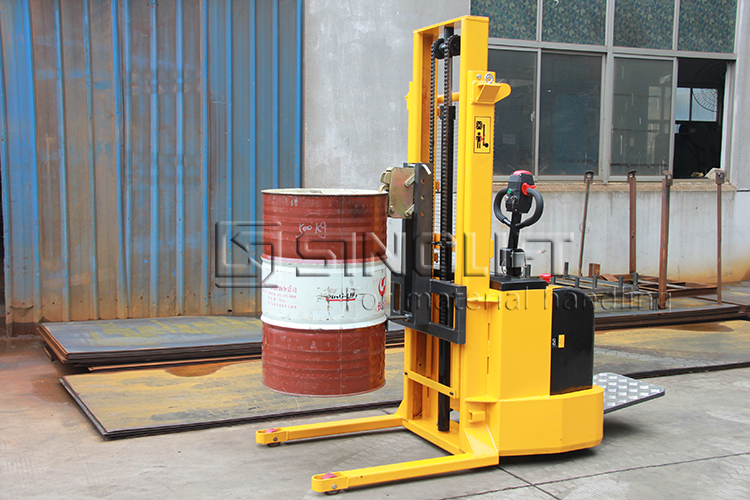

Full Electric Drum Stacker YL600B


- Power drive, transport, lift and tilt 55 gallon steel drums.

- Available to carry the drum to rack (lower than 2400mm).

- Imported electrical vehicle exclusive walking control system.

- Can be operated by one people, labor saving and high work efficiency.

- With stepless speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel.

Model YL600B
Drive Type Full Electric
Operating Type Standing operation
Rated Load Capacity kg 600
Drum Size 55 gallon (Ф572×900) steel
Lifting Height mm 2400
Turning Radius mm 1710
Max. Gradeability (Laden/Unladen) % 3/5
Driving Wheel Size mm Ø250*80
Tire / Polyurethane
Controlling Type / Electromagnetic braking
Drive Motor Power kw 1.2
Lifting Motor Power kw 2.2
Noise level db(A) 70
Battery voltage/capacity V/Ah 24/210
Charger V/A 24/30
Net weight kg 635
