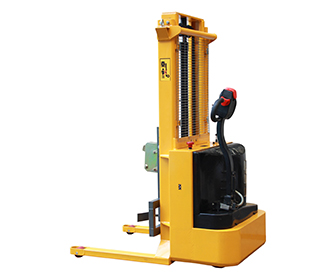

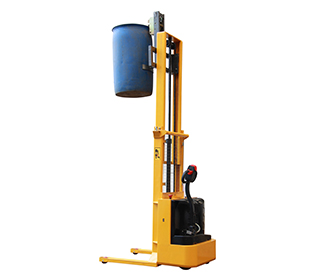

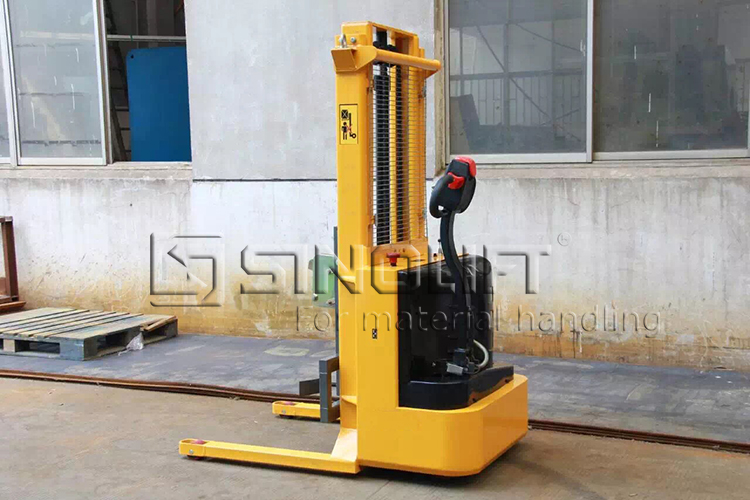

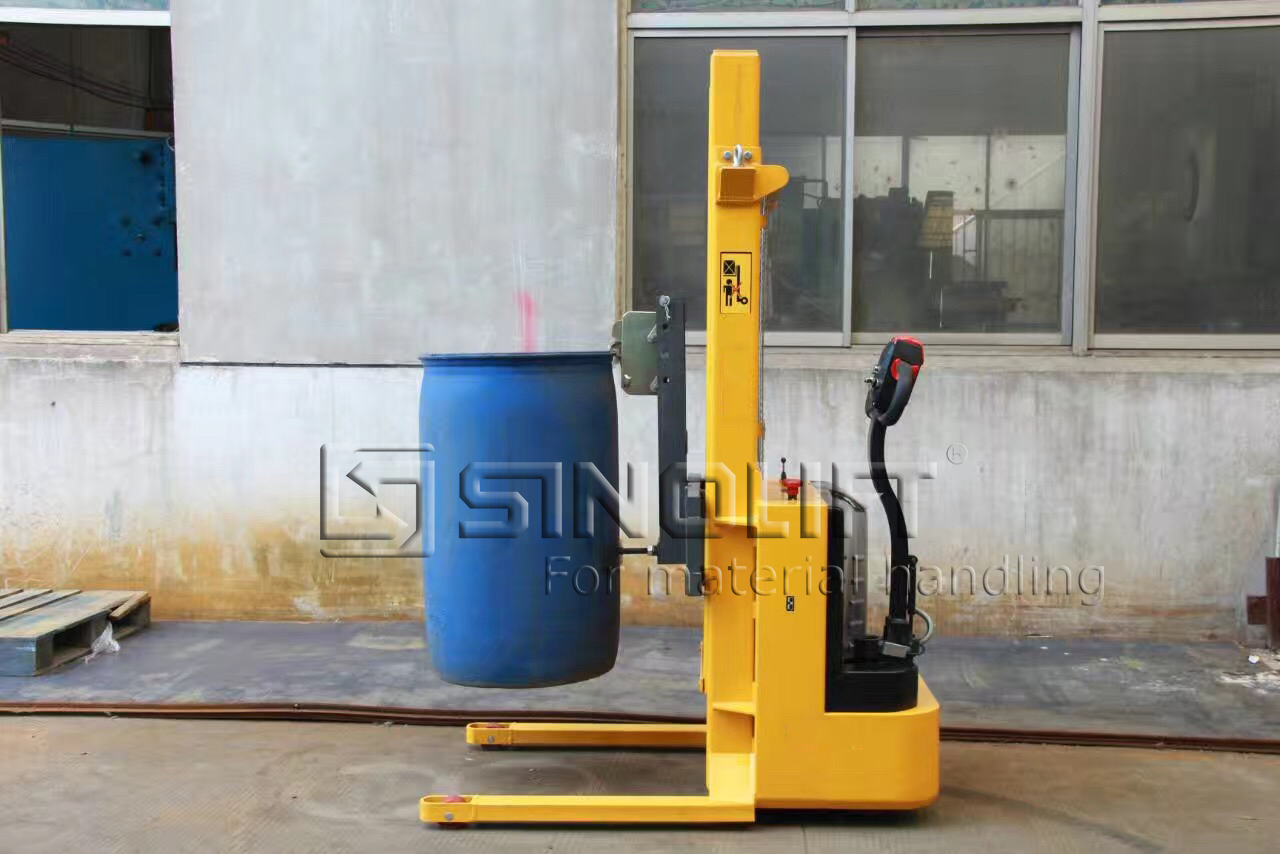

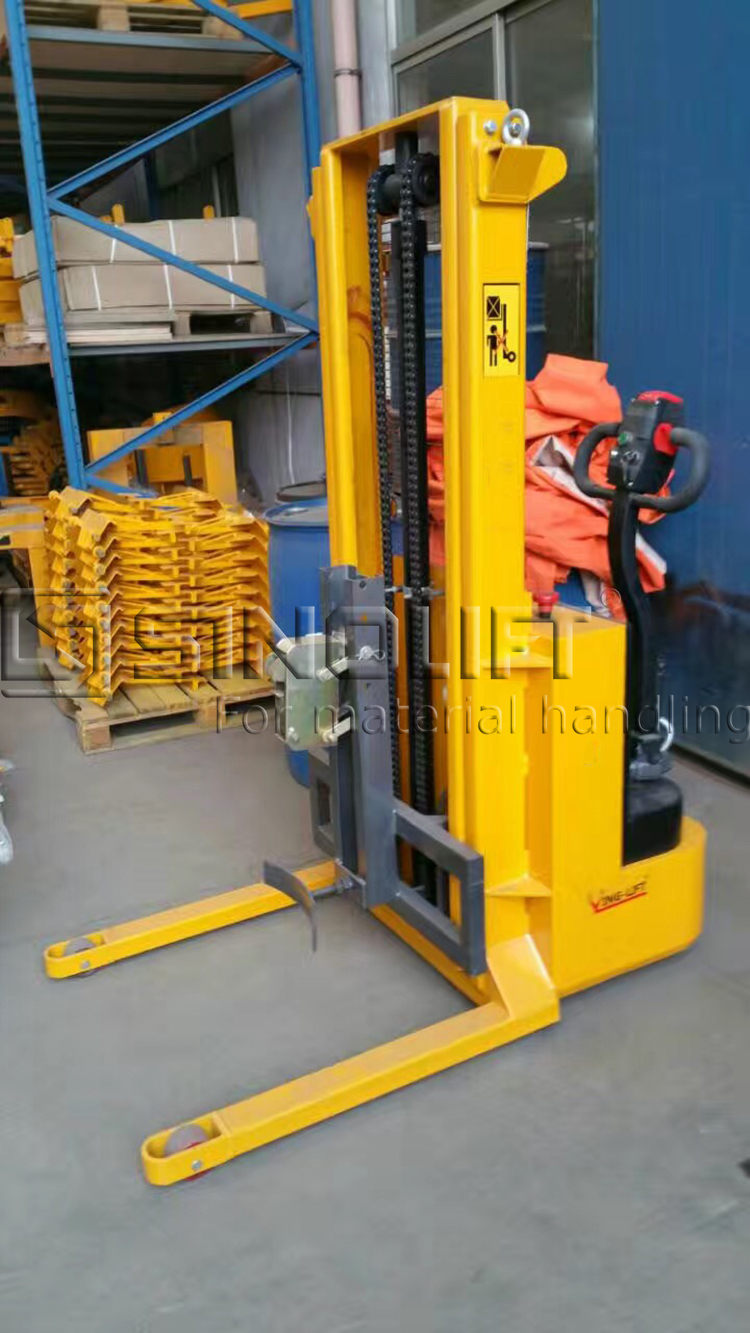

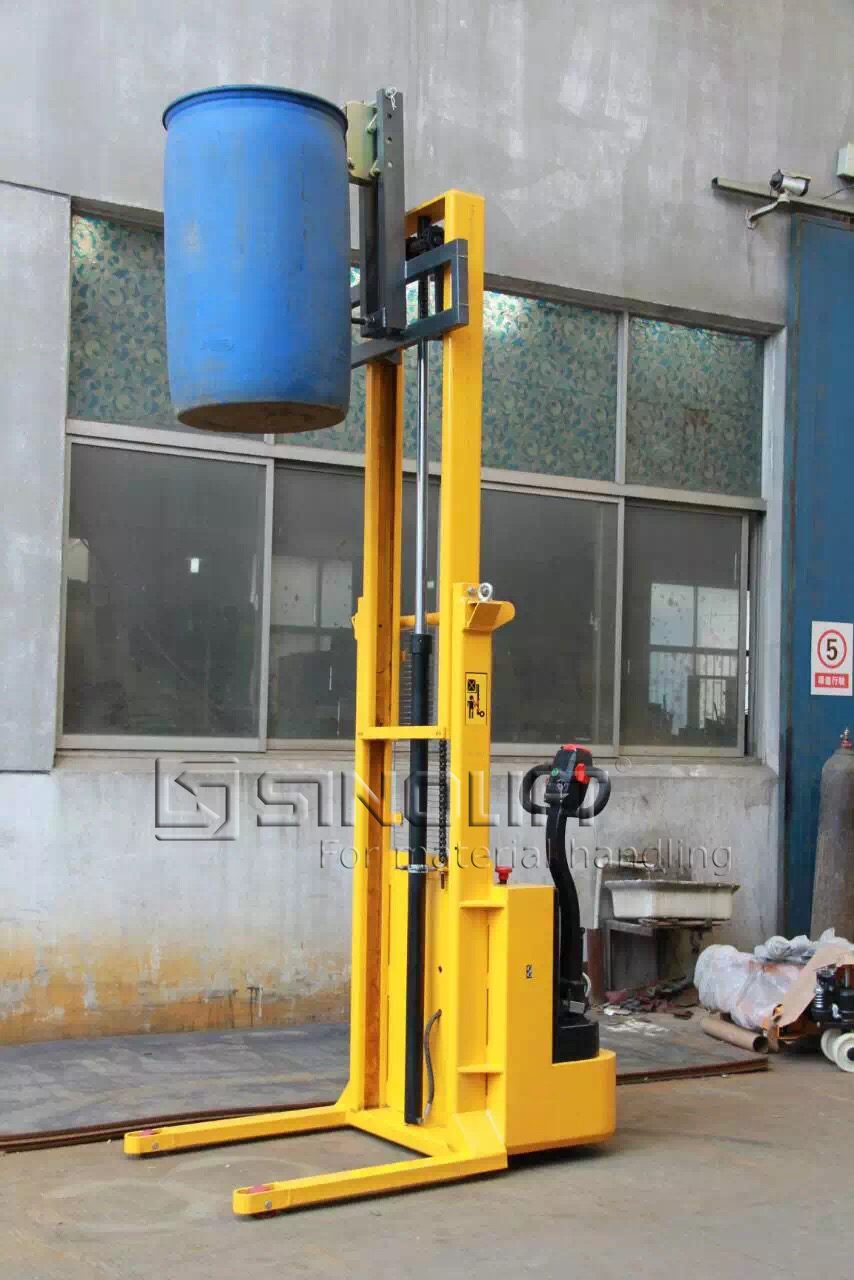

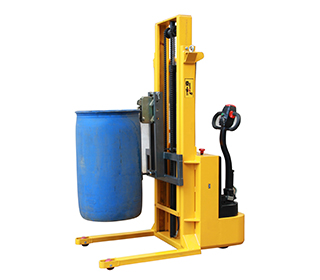

Name：YL650B Snap-on Olecranon Semi Electric Stacker
Model：YL650B
Product Introduction：1. Snap-on olecranon structure, suitable for handling, lifting, loading and unloading of steel drums. It adopts imported electric vehicle special walking control series, stable walking, light and flexible, single operation. 2. Walking stepless speed governor, high power reversing switch, integrated hydraulic pump station, high power walking drive wheel. 3. Optional single and double eagle mouth

Product Description

1. Snap-on olecranon structure, suitable for handling, lifting, loading and unloading of steel drums. It adopts imported electric vehicle special walking control series, stable walking, light and flexible, single operation.
2. Walking stepless speed governor, high power reversing switch, integrated hydraulic pump station, high power walking drive wheel.
3. Optional single and double eagle mouth

Model		YL650B
Drive Form	/	Electric
Driving Style	/	Walkie
Load Capacity	kg	650
Turning Radius	mm	1650
Drive Wheel Size	mm	Ф250*80
Wheel	/	Polyurethane
Brake Mode	/	Electromagnetic brake
Drive Motor Power	kw	1.2
Lifting Motor Power	kw	2.2
Vehicle Noise	db(A)	＜70
Battery Voltage/ Capacity	V/A	24/30
Battery Parameter	V/Ah	24/120
Net Weight	kg	470
Lifting Height	mm	2400
Overall Dimensions	mm	14508651850
