Home >> Products >> WA300A/WA300B Drum Handler

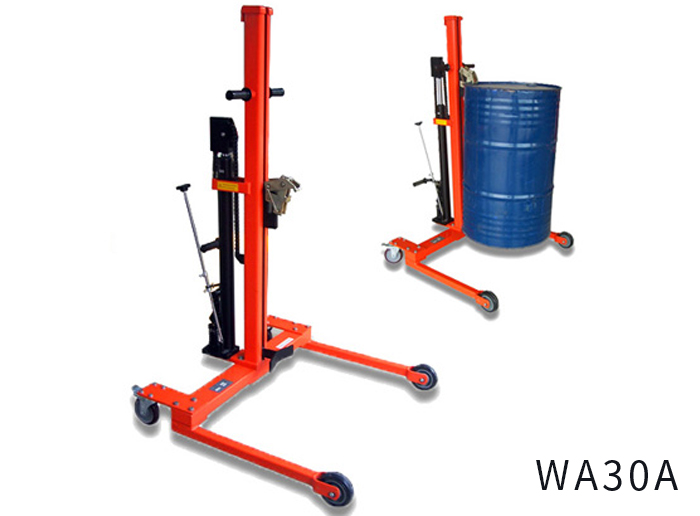

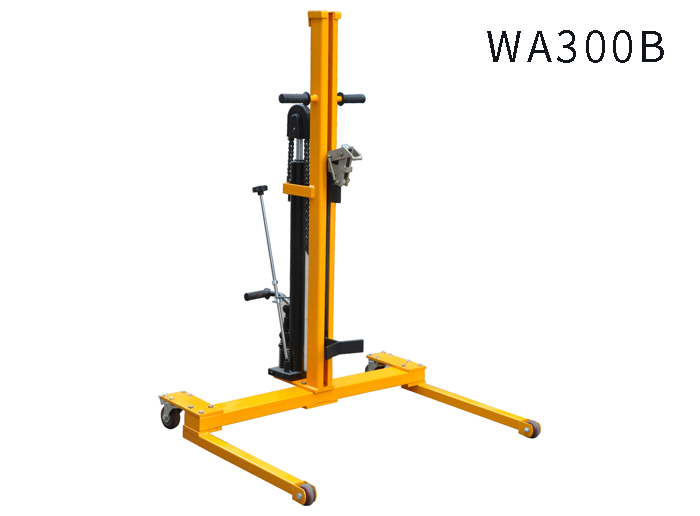

Name：WA300A/WA300B Drum Handler
Model：WA300A/WA300B
Product Introduction：1.Easily lift, transport and place the polythene, steel and fiber drums on or off the pallets. 2.A spring-loaded clamp securely holds any rimmed drums. 3.High lifting height for ledge and car. 4.Legs can be suitable to insert into pallets (WA30B).

1.Easily lift, transport and place the polythene, steel and fiber drums on or off the pallets.
2.A spring-loaded clamp securely holds any rimmed drums.
3.High lifting height for ledge and car.
4.Legs can be suitable to insert into pallets (WA30B).

Model		WA30A	WA30B
Lifting Capacity	kg	300	300
Drum Size		55 gallon (Ø572x900) Steel Drum,210L Plastic Drum
Lifting Height	mm	750	750
Leg Width	mm	870	850
Front	mm	Φ125	Φ65
Rear Castor	mm	Φ125	Φ100
Overall Dimensions	mm	990x900x1560	990x970x1530
Net weight	kg	68	66
