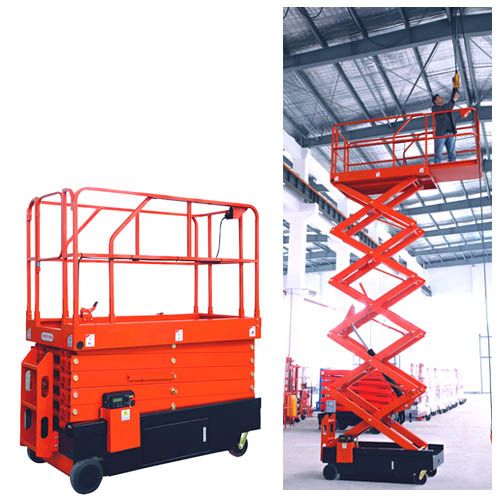

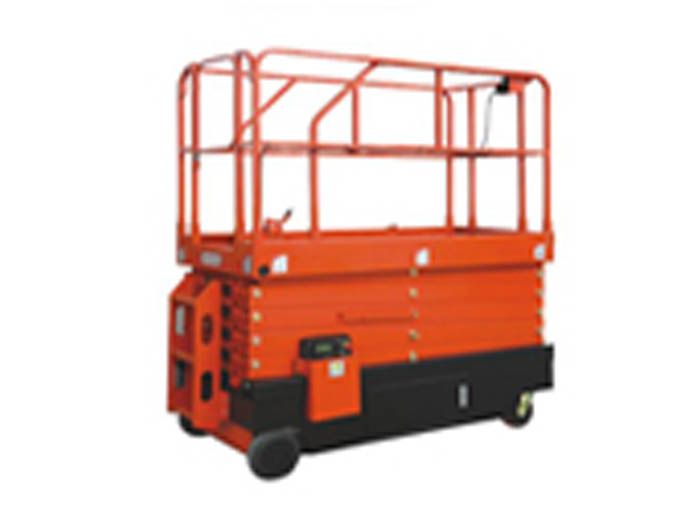

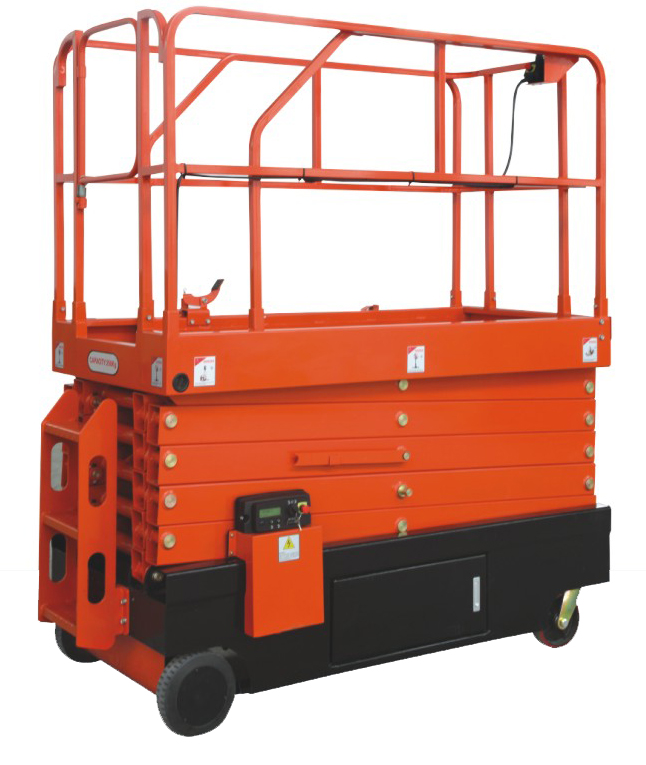

Name：FSJY self-propelled scissors Aerial Work platform
Model：FSJY
Product Introduction：FSJY self-propelled scissors Aerial Work platform

FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance.
1.Electronic system imported directly from PG United Kingdom.
2.Battery imported from USA.
3.Driving wheels and balance wheels assembly to keep the safety.
4.Spraying plastics appearance .
5.2-3 days working time of one time charging.
6.With safety-falling equipment.

MODEL		FSJY6	FSJY7.4
Max. Platform Height (H)	mm	6000	7400
Max. Machine Height (H1)	mm	7100	8500
Min. Platform Height (D)	mm	1010	1130
Ground Clearance	mm	90
Lift Rated Capacity	kg	300	250
Platform Extend Capacity	kg	100	80
Platform Size	mm	1870×730
Platform Extend Length (F)	mm	900
Max Drive Speed (platform Stowed)	km/h	3～4
Max.Drive Sp)eed (platform Elevated	km/h	0.6～1
Min. Turing Radius	mm	1900
Max. Gradbility	%	10～15
Driving Wheel Size	mm	Ф250×80
Caster Size	in	8
Driving Motor	v/kw	2×24/0.5
Lifting Motor	v/kw	24/2.2
Aneroid Battery	v/Ah	2×12/150
Charger	v/A	24/15
Pothole Protection System		Automechanism
Overall Length	mm	2030
Overall Width	mm	900
Overall Height	mm	2120	2240
Net Weight	kg	1300	1400
