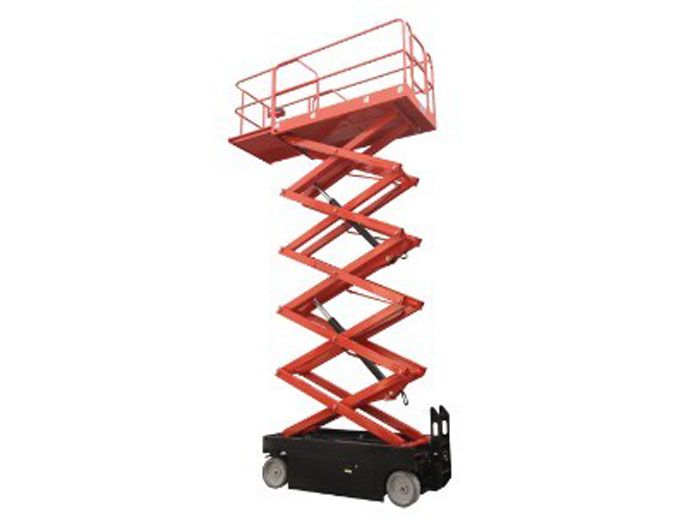

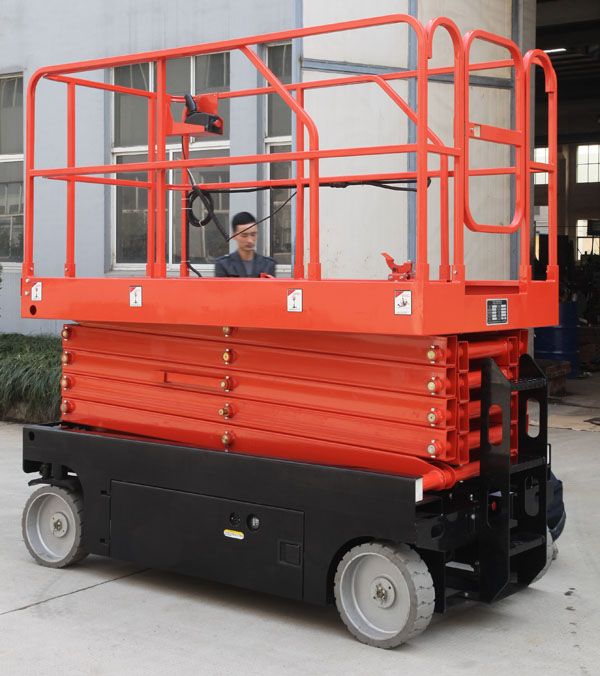

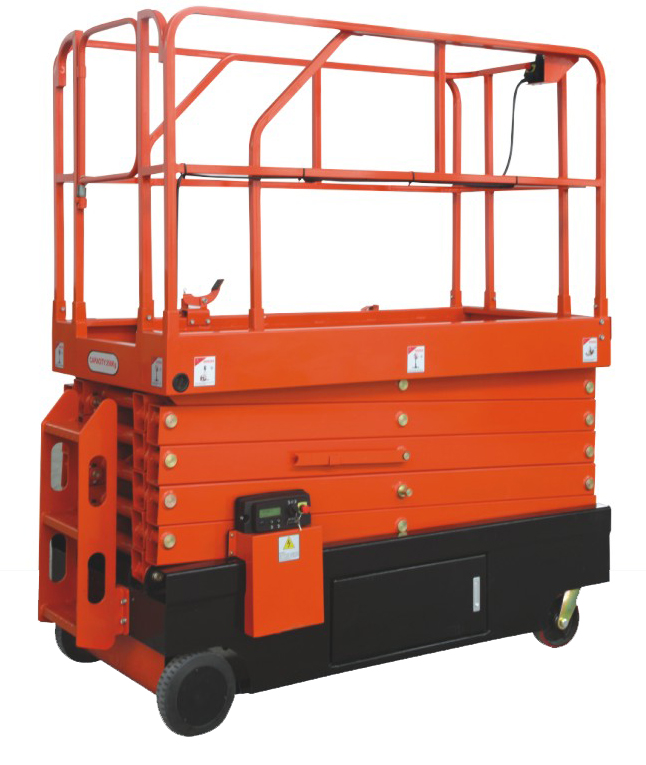

Name：FSJY(II) self-propelled scissors Aerial working Platform
Model：FSJY(II)
Product Introduction：FSJY(II) self-propelled scissors Aerial working Platform

FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance.
1.Electronic system imported directly from PG United Kingdom.
2.Battery imported from USA.
3.Driving wheels and balance wheels assembly to keep the safety.
4.Spraying plastics appearance .
5.2-3 days working time of one time charging.
6.With safety-falling equipment.

Model	Unit	FSJY0608	FSJY0810	FSJY1012
Max. working height	mm	8000	10000	12000
Max. Platform height	mm	6000	8000	10000
Rated capacity	kg	300	300	300
Folding Max. height (guardrail unfolding)	mm	2150	2275	2400
Folding Max. height (guardrail removed)	mm	1190	1315	1440
Overall length	mm	2400	2400	2400
Overall width	mm	1150	1150	1150
Platform size	mm	2270x1150	2270x1150	2270x1150
Platform extend size	mm	900	900	900
Min. ground clearance (lowered)	mm	110	110	110
Min. Ground clearance (lifted)	mm	20	20	20
Wheelbase	mm	1850	1850	1850
Min. Turning radius (inner wheel)	mm	0	0	0
Min. Turning radius (outer wheel)	mm	2100	2100	2100
Power souce	V/kw	24/3	24/3	24/3
Runing speed (rising)	km/h	4	4	4
Rising/falling speed	sec	40/50	40/50	70/80
Battery	V/Ah	4x6/210	4x6/210	4x6/210
Charger	V/A	24/25	24/25	24/25
Max. Climbing ability	%	20	20	20
Max. working allowable angle	°	2-3	2-3	2-3
Control type		Electro-hydraulic proportion control
Drive		Double front-wheel
Hydraulic drive		Double rear wheel
Wheelsize (non-marking solid tire)		381x127	381x127	381x127
Service weight	kg	1900	2200	2700
