DA450/DA450-1 Hydraulic Drum Dumper

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

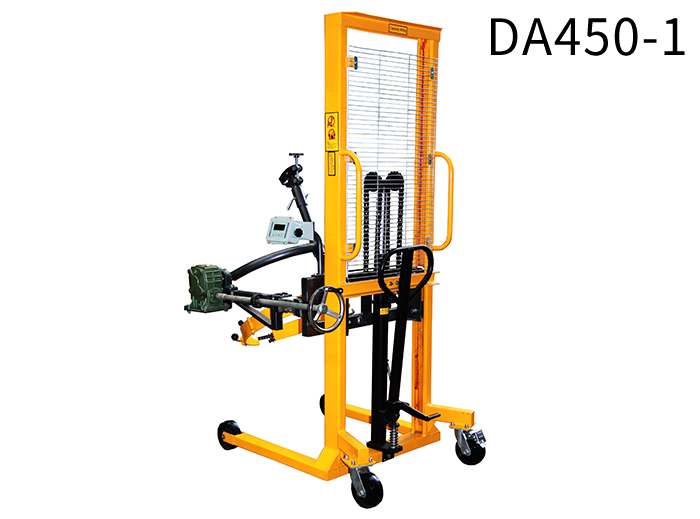

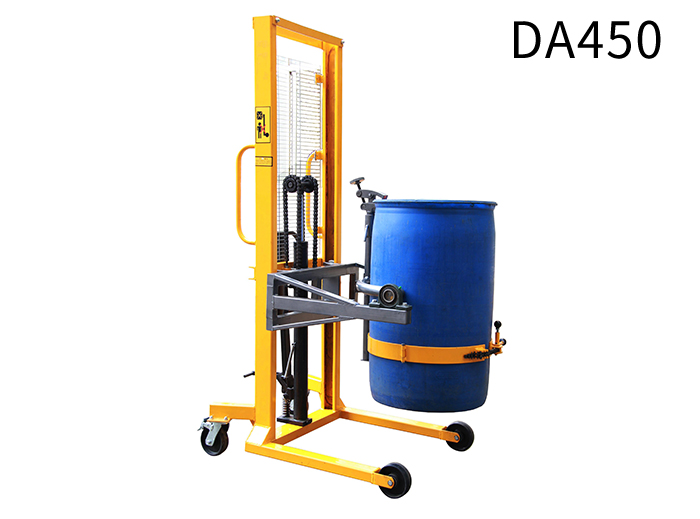

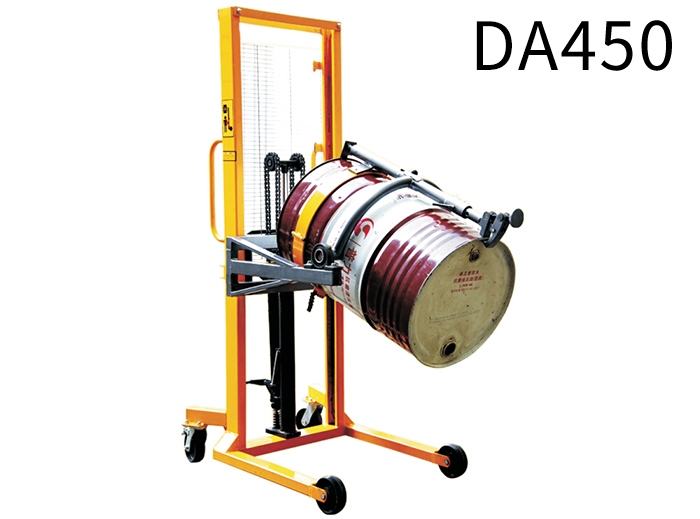

Name：DA450/DA450-1 Hydraulic Drum Dumper
Model：DA450/DA450-1
Product Introduction：1. Single-stage vertical-lift drum pourers allow you to pour a drum up to 150 cm high. 2. Combined with Eagle-grip structure and Anchor ear structure, is can be used for dumping both of 55 gallon steel drums 210L rimmed plastic drums.- 3. Manual lift with manual drum tilt.

Features:

1. Single-stage vertical-lift drum pourers allow you to pour a drum up to 150 cm high.

2. Combined with Eagle-grip structure and Anchor ear structure, is can be used for dumping both of 55 gallon steel drums 210L rimmed plastic drums.-

3. Manual lift with manual drum tilt.

Model		DA450	DA450-1
Rated capacity	kg	450	400
Max. lifting height	mm	1500	1500
Drum size		30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Drum tilting (electric/manual)		manual	manual
With weighing scale	yes/no	no	yes
Load rollers size	mm	Ø80x60	Ø80x60
Steering wheel size	mm	Ø150x50	Ø150x50
Width of leg (Inner/Outer)	mm	640/810	640/810
Leg Length	mm	770	770
Charger for weighing scale	V	/	6
Overall size (LxWxH)	mm	1160x1000x2100	1160x1000x2100
Net weight	KG	170	175
