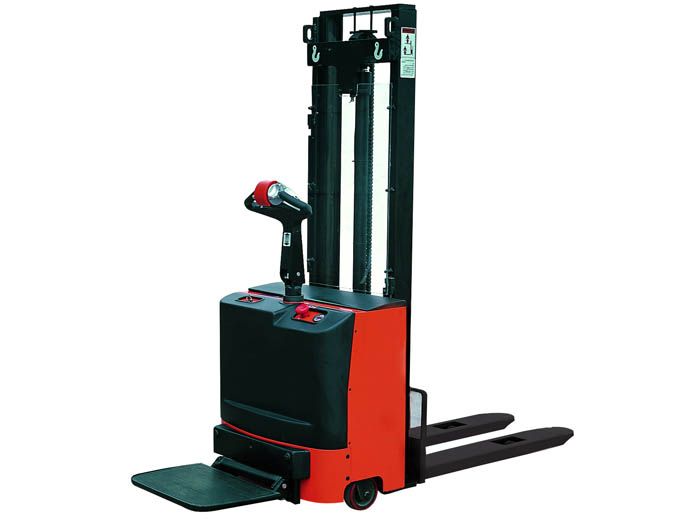

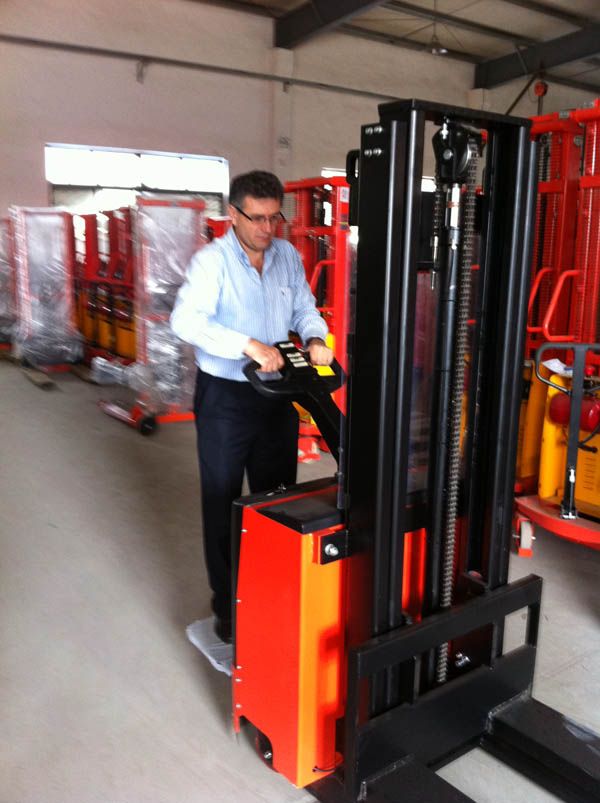

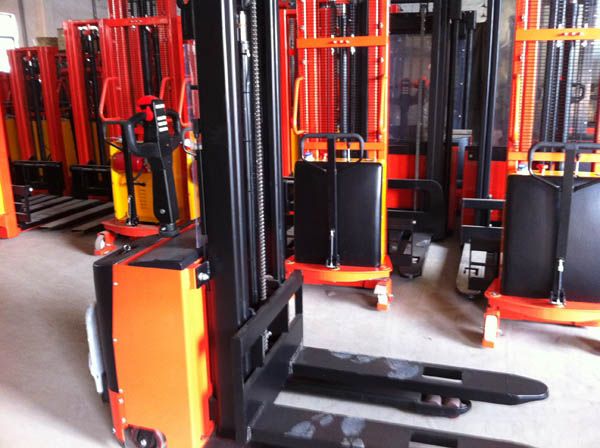

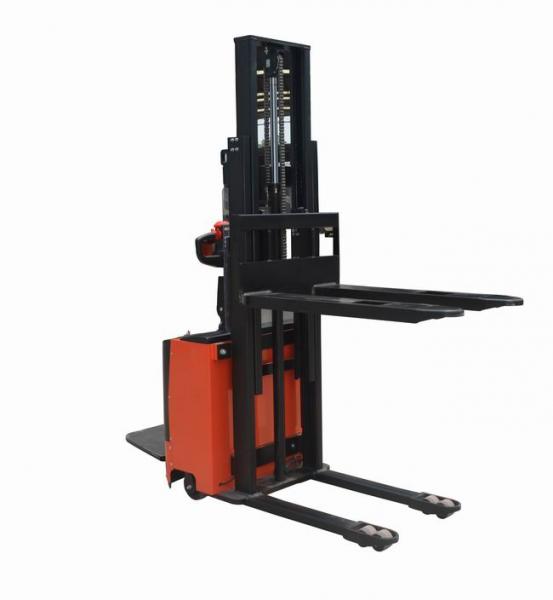

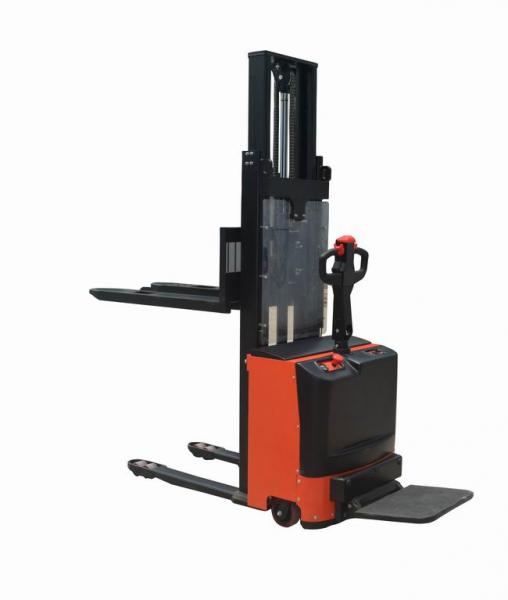

Name:CL Full Electric Stacker
Model:CL
Product Introduction:CL Full Electric Stacker

Smooth travel and lift with excellent controls to reduce product damages and increases productivity.
Lift limit switch operates at maximum lift height to shut off pump motor.
A heavy-duty 24-volt electrical system provides good travel and lift speeds.
High quality hydraulic pump assures very little noise, maximum efficiency and durability.
Drive units is equipped with an electromagnetic brake that is spring applied and electrically release. Brake is activated by the control handle position. The handle ergonomically designed with a raising, lowering and horn bottom.
Speed automatically reduces when driving with the forks at a height of 12" or higher.
Small turn radius makes it suitable for narrow passage ways.
The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery lift.
Foot pedal reduces fatigue.
Conforms to EN 1726-1 and EN 1175-1





Identification Model     CL1212 CL1217 CL1226 CL1232 CL1032
Drive:electric(battery or mains),diesel, petrol,fuel gas,manual    Electric
Type of operation:hand,pedestrian,    Pedestrian
standing,seated, order-picker)
Load Capacity /rated load Q(t) 1.2 1
Load center distance C mm 600
Load distance, centre of drive axle to fork X mm 677 692
Wheelbase y mm 1160
Weights service Weight Kg 750 785 860 885 865
Axle loading,laden front/rear Kg 925/1025 940/1045 980/1080 990/1095 885/980
Axle loadings, unladen front/rear Kg 550/200 580/205 635/225 655/230 640/225
Wheels, Tyres:solid rubber,superelastic, pneumatic, polyurethane)    polyurethane
Chassis Tyre size, front    250x78
  Tyre size, rear    80x70 1)
  Additional wheels(dimensions)    150x54
  Wheels, numberfront/rear(x=driven wheels)    1x+2/4
  Track width,front b10(mm) 685
  Track width,rear b11(mm) 390/515
Basic Dimensions  Lowered mast height h1(mm) 1565 2076 1795 2095 2095
Free lift h2(mm) - - 144 144 144
Lift height h3(mm) 1114 1614 2514 3114 3114
Extended mast height h4(mm) 1565 2076 2982 3582 3582
Height of tiller in drive position min./max. h14(mm) 985/1365
Lowered height h13(mm) 86
Overall length l1(mm) 1908 1893
Length to face of forks l2(mm) 758 743
Overall width b1(mm) 805
Fork dimensions s/e/l(mm) 60/80/1150
Width over forks b5(mm) 570/695
Ground clearance, center of wheelbase m2(mm) 26
Aisle width for pallets 1000x1200 crossways Ast(mm) 2340 2335
Aisle width for pallets 800x1200 lengthways Ast(mm) 2320 2306
Turning radius Wa(mm) 1460
Performance Data  Travel Speed, laden/unladen km/h 5.2/5.5
Lift speed, laden/unladen mm/s 105/150
Lowering speed, laden/unladen mm/s 100/95
Max.gradient performance, laden/unladen % 6月12日
Service brake    Electromagnetic
E-Motor Drive motor rating s2 60min kw 1.2
Lift motor rating at s3 15% kw 2.2
Battery acc. To DIN, no    3PZS
Battery voltage, norminal capacity V/Ah 24/210
Others Type of drive control    MOSFET Control
Sound level at driver’s ear acc.to EN12053 dB(A) 67
