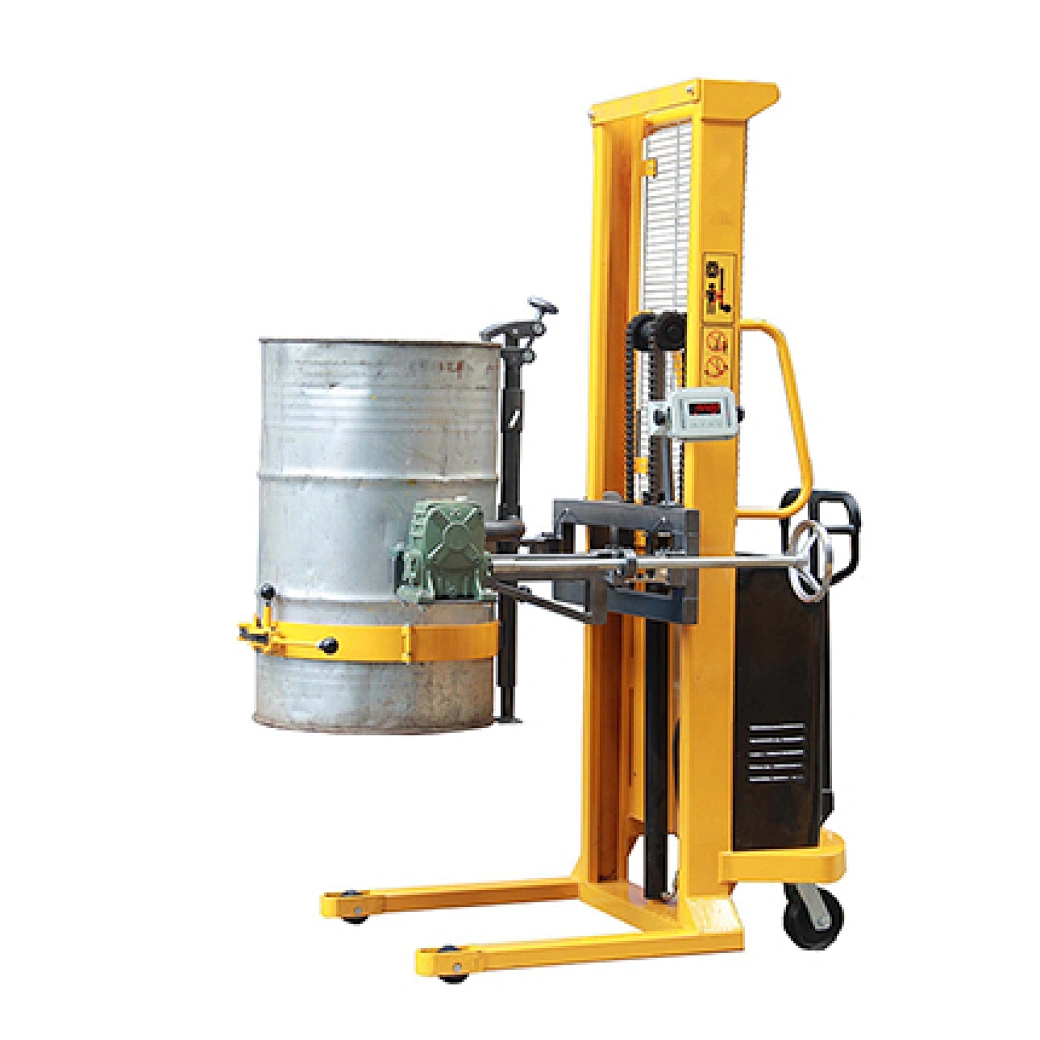

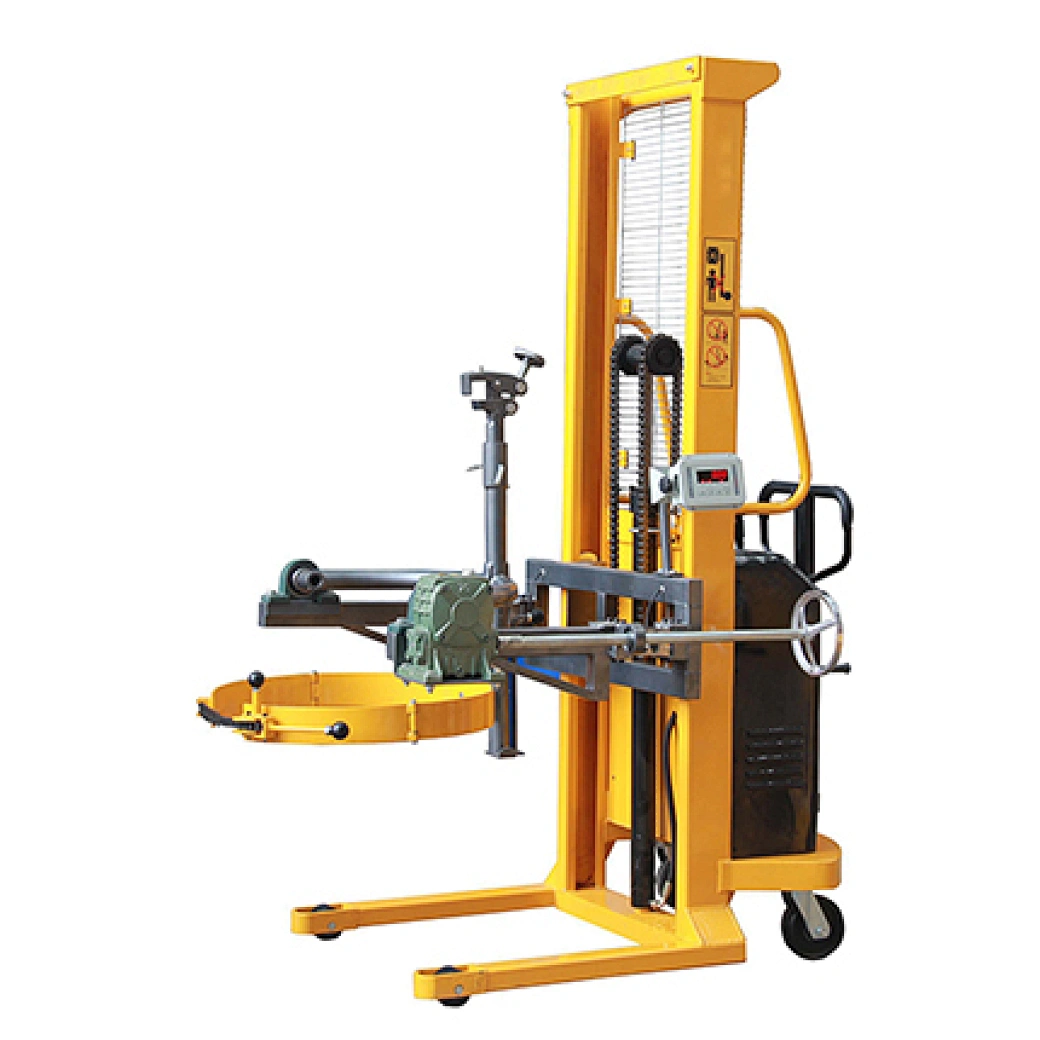

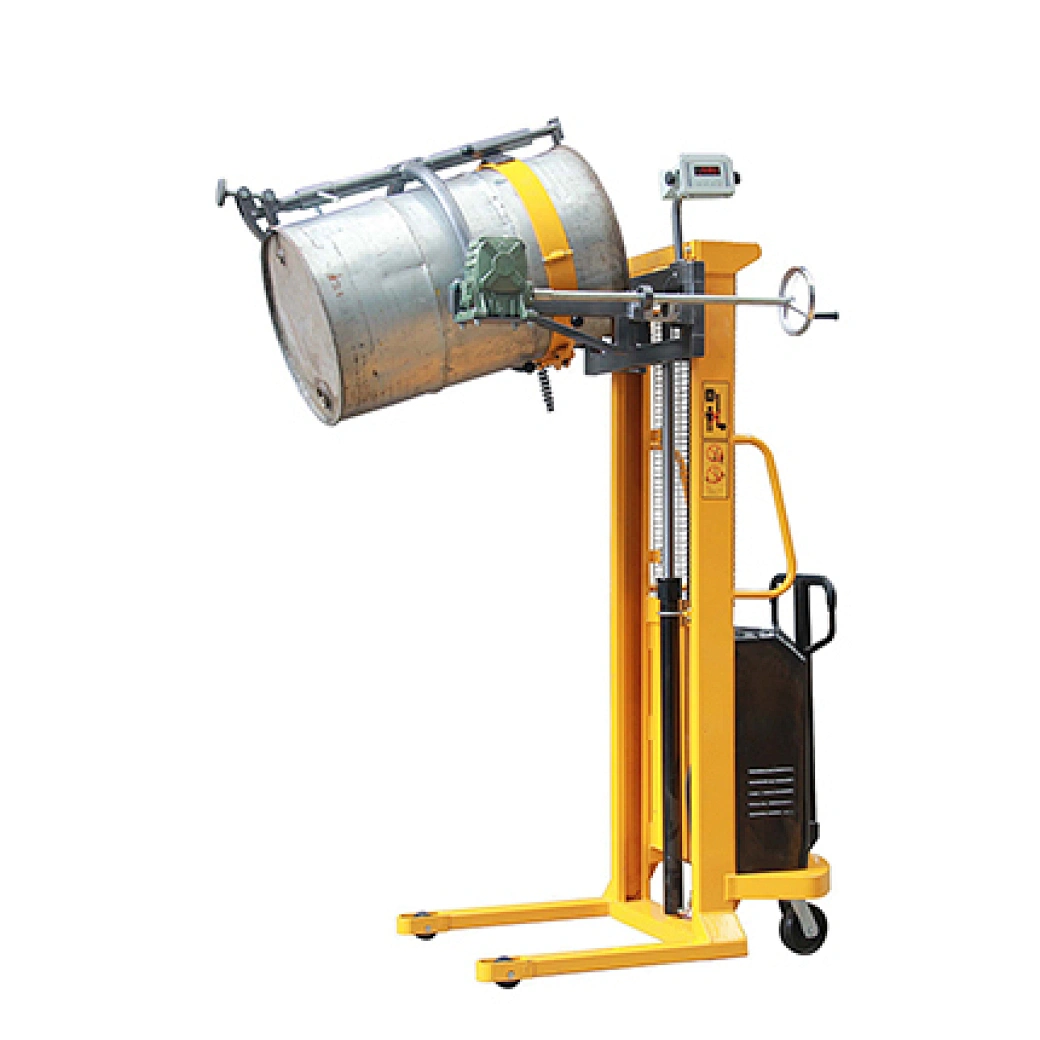

Name:YL520-1 Semi-electric Drum Lifter Cum Tilter
Model:YL520-1
Product Introduction:1. Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate. 2. Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow. 3. A combination of system to ensure that the mouth airfield effective fixation.

Features:

1. Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.

2. Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow.

3. A combination of system to ensure that the mouth airfield effective fixation.

4.Oil drum carrier is of simple-and-light-structure design and be combined with Eagle-grip and Anchor ear structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort.

5.With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Model  YL520-1
Loading weight kg 520
Drum size 55 gallon ( (Ø572x900) steel, 210L plastic
Lifting Height mm 1600
Wheel Dimension mm Ø80x55/Ø150x50
Inner/Outer Width of Front Leg mm 640/800
Turning Radius mm 1620
Pump Unit Power KW/h 1.5
Battery Parameter Ah/V 120/12
Lifting Speed mm/s 120
Outline Dimension (LxWxH) mm 1400*980*2080
Net weight kg 269
