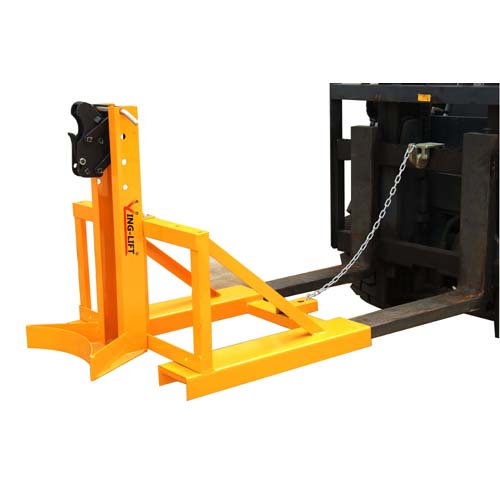

Name:DG360E Single Gator Grip Forklift Mounted Drum Grab
Model:DG360E
Product Introduction:1. Purely mechanical structure design, convenient to work with forklift truck; can automatically move 1~2 drums at one time just with forklift truck’s movement without any other force. 2. Use special black eagle-gripper structure, wholly made of cast steel; easier to operate, more durable. 3. Be able to deal with more types of drums, including steel oil drum and PE oil drum 4. Full automatic mechanical operation to suit various types of drums; each drum will be gripped tight by auto-adjustable double-eagle-gripper unit which will not only ease the stress put on the edge of drum but also ensure reliable transporting and stacking partly-damaged drums or unevenly-placed drums. 5. Enable loading or unloading drum content inside limited space such as a container; massively improve on space utilization. 6. Auto-lock is installed for connecting forks to make sure the drums won’t slip off when they’re on gradient or bumpy road.

1. Purely mechanical structure design, convenient to work with forklift truck; can automatically move 1~2 drums at one time just with forklift truck’s movement without any other force.

2. Use special black eagle-gripper structure, wholly made of cast steel; easier to operate, more durable.

3. Be able to deal with more types of drums, including steel oil drum and PE oil drum
4. Full automatic mechanical operation to suit various types of drums; each drum will be gripped tight by auto-adjustable double-eagle-gripper unit which will not only ease the stress put on the edge of drum but also ensure reliable transporting and stacking partly-damaged drums or unevenly-placed drums.

5. Enable loading or unloading drum content inside limited space such as a container; massively improve on space utilization.

6. Auto-lock is installed for connecting forks to make sure the drums won’t slip off when they’re on gradient or bumpy road.

Model DG360E
Capacity kg 360
Net Weight kg 50
Overall Size  mm 1030*760*850
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height  mm 750
Grab Middle Height mm 615--540
Foks leg (length*width) mm 150*55
Straddle inner Width mm 450
Staddle outline Width mm 750
Straddle Length mm 750
